PLC Touch Panel 530*460mm PCB Turnover Flipper AC 220V 50Hz

China UNIQUE AUTOMATION LIMITED certification
China UNIQUE AUTOMATION LIMITED certification
Good machine. Operate effectively with your wave solder machine. Thank you !

—— Abhijeet Saxena

Nice service!Can show me the solution in time when I have questions with machine. They are patient and kindly.

—— Mike Jasen

I'm Online Chat Now

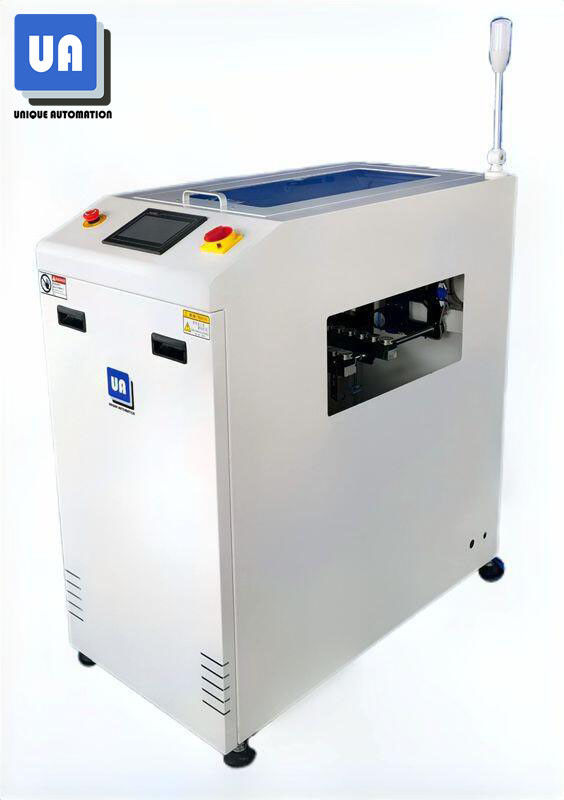

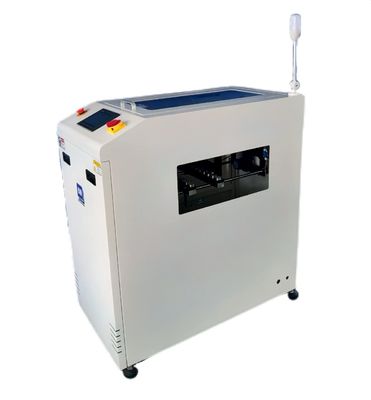

PLC Touch Panel 530*460mm PCB Turnover Flipper AC 220V 50Hz

PLC Touch Panel 530*460mm PCB Turnover Flipper AC 220V 50Hz
PLC Touch Panel 530*460mm PCB Turnover Flipper AC 220V 50Hz
video play

Large Image :  PLC Touch Panel 530*460mm PCB Turnover Flipper AC 220V 50Hz

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: TM-460
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-20 days
Payment Terms: T/T
Supply Ability: 15 units per month
Detailed Product Description
PCB Width: 50*50- 530*460 Power Supply: AC 220V 50/60 Hz
Control Mode: PLC + Touch Panel Screen Air Supply: 4-6kg/cm²
New Weight: 170 Kg Machine Dimension: 600*960*1250 Mm
Circle Time: Approx 10s PCB Thickness: 0.4-4.0 Mm
Application: SMT Production Line Transport Height: 900±30 Mm
High Light:

530*460mm PCB Flipper

,

PLC Touch Panel PCB Flipper

,

AC 220V 50Hz pcb turnover flipper

PCB Conveyor Automatic SMT PCB Flipper for SMT Line



Description

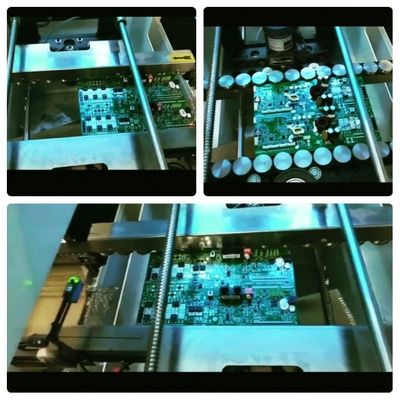

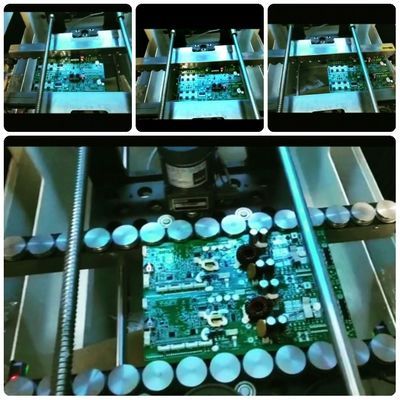

This unit is used to invert PCBs (180°) for “double-sided” process.



Features

  • Equipped with built-in torque limiter to ensure highest level of safety
  • ‘Top safety cover’ can be opened for easy access to hardware during maintenance
  • User friendly touch panel screen + PLC control
  • Smooth and precise inverting motion
  • Subsequent inversions continue from the last unloading position (short cycle time)
  • SMEMA compatible



Specifications

Size XL
Model TM-460
Machine Dimension 600*960*1250 mm
PCB Dimension 50*50 - 530*460 mm
Weight 170 kg



PLC Touch Panel 530*460mm PCB Turnover Flipper AC 220V 50Hz 0

Company Profile

Company Profile

FAQ



Q1: Are you a trade company or manufacturer ?

We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.

OEM & ODM service are available.



Q2 : What is your payment terms?

T/T, L/C, etc



Q3: What’s your terms of packing ?

We usually adopt this method : internal vacuum packing and outer wooden packing.

Or according to your requirement.



Q4 : What is your delivery date?

The delivery date is about 20-30 working days after receive the payment.



Q5:If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory and we will arrange the free training for you.



Q6 : Whether these products have quality assurance ?

We have strict QC and all products have 100% quality tested before delivery.

`

Q7: Why choose UA ?

Experienced in design and manufacturing of SMT equipment, UA is one of the most professional

solution providers in the SMT equipment market.



Package and Shippment



Package

Packing way: internal vacuum packing and outer wooden packing.internal vaccum packing

outer wooden packing



Shipping

1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.

    ( Fast transportation, safe and accurate)

2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.

3. By truck. Fast transportation and low cost.

4. Other method as you customized.

shipping methods
