| Product Name: | Solder Paste Pinter A9 | Cycle Time: | < 7s |
|---|---|---|---|
| Squeegee Type: | Stainless Steel | Feature: | Lead Free, Can Be Customized |
| Squeegee Speed: | 6-200 Mm/sec | Squeegee Pressure: | 0-15kg |
| Printing Accuracy: | ±0.02mm | Repeat Position Accuracy: | ±0.008mm |
| PCB Max Size: | 510*340 Mm | Product Changeover: | <5min |
| High Light: | PCB Solder Paste Screen Printer,CE Solder Paste Screen Printer,PCB Solder Paste Screen Printing Machine |
||

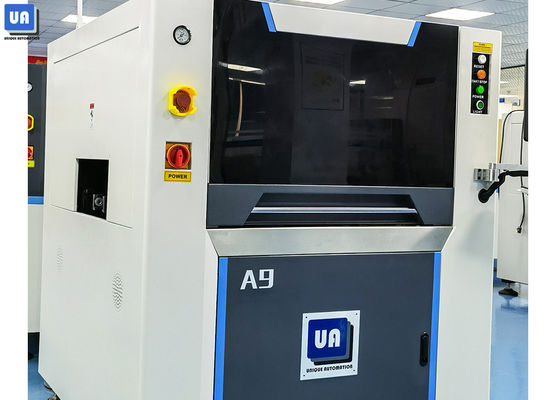

Solder Paste Screen Printer, Lead Free PCB Automatic Solder Paste Printer
Specification of Solder Paste Screen Printer
| Model | A9 |
| Screen Frames | Min Size : 470*370 mm |
| Max Size : 737*737 mm | |
| Thickness : 25-40 mm | |
| PCB Min Size | 50*50 mm |
| PCB Max Size | 510*340 mm |
| PCB Thickness | 0.4-6 mm |
| PCB Warpage | < 1% |
| Transport Height | 900±40 mm |
| Transport Direction | Optional |
| Transport Speed | Max 1500mm/S programmable |
| Board Location PCB | Support System : Magnetic Pin/Up-dowm Table Adjusted / Supportblock by Hand |
| Clamping System : Side Clamping, Vacuum Nozzle |
|
| Print head | Two Independent Motorised Printheads |
| Cleaning System | Dry, Wet, Vaccum (Programmableb) |
| Table Adjustment Ranges | X: ±10mm; Y:±10mm |
| Solder Paste Inspection | 2D Inspection Standard |
Special Platform Calibration System of Solder Paste Printer A9
Use the world's most advanced UVW platform,With servo motor and lead screw, compact structure, high reliability, smooth and stable lift up/down platform, platform height automatically adjust by software control. Precisely realize different types of PCB thickness position height adjust.
Image And Optical System of Solder Paste Printer A9
Uniform ring light, high brightness coaxial light and advanced upper lower vision system Full range of light compensation, Automatic and accurate recognized of all type MARK points. Applicable for tin plating, copper plating, gold plating, tin spraying,FPC and other types PCB with different colors, able to ensure high accuracy.
Operation Interface of Solder Paste Printer A9
Using Windows XP operation interface,and easy to learn for user, with good man-machine interactive function. Programming is designed with teaching and navigation function, guidance is available on every step. Chinese/English selective Operating Journal/Breakdown Record/Breakdown Diagnosis
PCB Transport & Clamping System of Solder Paste Printer A9
Unique belt transmission system avoids being stuck or fall-off of PCB. Programmable motor controls transport speed and puts PCB in the precise position. Free to choose left or right as the PCB input/output direction.Flexible Arch bridge type suspending direct- connected scraper side clamp and PCB support vacuum block hold PCB tightly and ensure the Print head with the programmable and suspending self-adjusting stepper motor drive. Full even contact between PCB and stencil.
Scraper system of Solder Paste Printer A9
Arch bridge type suspending direct- connected scraper side clamp and PCB support vacuum block hold PCB tightly and ensure the Print head with the programmable and suspending self-adjusting stepper motor drive.full even contact between PCB and stencil.
Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth. Two sets of separate scraper heads are driven respectively by two high precision stepper motors, ensuring the accuracy and stability of the pressure. The closed l0 pressure control system can accurately detect and control the squeegee pressure during real-time production.
Showroom of Solder Paste Printer A9
Assembly workshop
Testing before delivery
