| Control: | PLC + Control Meter | Preheating Area Length (mm): | 1160 MM |
|---|---|---|---|
| Solder Pot Capacity (kg): | Approx. 325 Kg | Solder Pot Material: | Stainless Steel |
| Conveyor Height: | About 760 MM | Name: | SMT Soldering Tin Machine |
| Cooling Method: | Forced Air Cooling | Size （mm ): | 3400*1100*1650 |
| High Light: | 300mm SMT Reflow Soldering Machine,Lead Free SMT Soldering Tin Machine,300mm SMT Soldering Tin Machine |
||

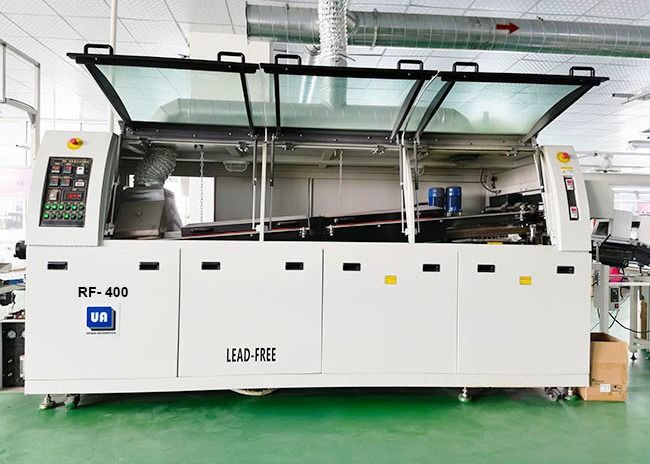

PLC Control 300mm PCB SMT Soldering Tin Machine Lead Free Design
Features :
1. Totally lead free design.
2. Japan made Mitsubishi PLC Control
3. Synchronous insert plate structure Japan made conveyor power equipped steady transportation.
4. Shaped stream line design, flexible operation, convenient to be cleaned and maintained.
5. Preheated by high efficient stainless steel heating pipe, good heat compensation and high stability.
6. Low oxidation anti-erosion alloyed tin furnace, energy saving design of spraying nozzle fulfill
lead free request absolutely.
7. External casting heating board of tin furnace with high efficiency.
8. Acoustic and optical warning and emergency brake system.
Specification :
| Model | RF-3S |
| Spraying System | |
| Transmission Method | Air Cylinder |
| Flux Flow | Throttle Valve |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Exhaust Capacity | 25M3/min |
| Preheating System | |
| Preheating Model | IR Tube |
| No. of Preheating Zones | 1 |
| Preheating Length | 1150 MM |
| Preheating Temp. | Room Temperature : ~300C |
| Warm Time | Approx. 20/min |
| Conveyor System | |
| PCB Width ( L x W ) | 300 MM |
| Conveyor Direction | Optional |
| Conveyor Height | 750 MM |
| Componet Clearance (mm ) | 130 MM |
| Conveyor Width Adjustment | Manual |
| Conveyor Angle | 4 ~ 6 C |
The Function of Wave Soldering Machine
Wave soldering refers to the melting of solder (lead-tin alloy) through an electric pump or an
electromagnetic pump sprayed into the solder wave crest required by the design,
so that the printed board with pre-installed components can pass through the solder
wave to achieve component soldering Soldering of mechanical and electrical connections
between terminals or pins and printed board pads.
