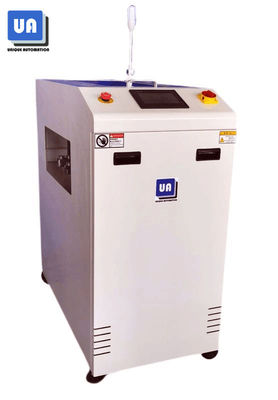

SMT Line PCB Conveyor 500*850*1250mm 10s Circle Time

SMT Line PCB Conveyor 500*850*1250mm 10s Circle Time
SMT Line PCB Conveyor 500*850*1250mm 10s Circle Time
video play

Large Image :  SMT Line PCB Conveyor 500*850*1250mm 10s Circle Time

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: TM-330
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-20 days
Payment Terms: T/T
Supply Ability: 15 units per month
Detailed Product Description
PCB Width: 50*50-400*350 Power Supply: AC 220V 50/60 Hz
Control Mode: PLC + Touch Panel Screen Air Supply: 4-6kg/cm²
New Weight: 150 Kg Machine Dimension: 500 * 850 * 1260 Mm
Circle Time: Approx 10s PCB Thickness: 0.4-4.0 Mm
Application: SMT Production Line PCB Direction: L To R Or R To L
High Light:

10s Circle time PCB Conveyor

,

500*850*1250mm PCB Conveyor

,

500*850*1250mm PCB flip conveyor

PCB Conveyor PCB Flipper for SMT Line

Description

This unit is used to invert PCBs (180°) for “double-sided” process.



Features

1. Strong,firm and stable design.
2.'soft touch' LED control panel or touch screen can be selected.
3. The vacuum loader structure is fully enclosed to ensure the safe level of operation.

4. Adjust the position of the suction nozzle to ensure the circuit boards is clamped.

5. Parallel and smooth width adjustment(lead screw).
6. Smooth and precise translation (stepper motor).
7. Minimize clearance between conveyor.
8. Compatible SMEMA interface.



Specifications

Size Model Machine Dimension (mm) PCB Dimension (mm) Weight (kg)
L TM-330 500*850*1250 50*50-400*350 150
XL TM-460 600*960*1250 50*50-530*460 170



SMT Line PCB Conveyor 500*850*1250mm 10s Circle Time 0

Company Profile

company profile



Unique Automation (referred to as "UA") is a High-speed developing enterprise of High Precision

SMT Equipment manufacturer, which specializes in automation equipment for electronics industry.



Unique Automation (UA) was founded in 2010 with headquarter in Shenzhen and its manufacturing facilities

of more than 5,000 square meters.With over 11 years’ experience in design and manufacturing of SMT

equipment, UA is one of the most professional solution providers in the SMT equipment market.



We specialized in wave soldering machine, reflow oven, SMT automatic vision paste printer, SMT laser

marking machine, conveyors, PCB/PCBA loader & unloader, THT production lines, fixtures/pallets, SMT

consumables and etc, and has exported these cost effective and high quality equipment to more than

30 countries in Europe, America, Middle-east, Southeast Asia, and Africa. We will spare no effort in providing

SMT equipment to our customers with the aim of “Quality First, Customer Priority” as we have been

doing for the last 11 years.



FAQ



Q1: Are you a trade company or manufacturer ?

We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.

OEM & ODM service are available.



Q2 : What is your payment terms?

T/T, L/C, etc



Q3: What’s your terms of packing ?

We usually adopt this method : internal vacuum packing and outer wooden packing.

Or according to your requirement.



Q4 : What is your delivery date?

The delivery date is about 20-30 working days after receive the payment.



Q5:If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory and we will arrange the free training for you.



Q6 : Whether these products have quality assurance ?

We have strict QC and all products have 100% quality tested before delivery.

`

Q7: Why choose UA ?

Experienced in design and manufacturing of SMT equipment, UA is one of the most professional

solution providers in the SMT equipment market.



Packge and Shipping
Packing : internal vacuum packing and outer wood packing
internal vacuum packing
outer wooden packing
Shipping :

1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.

( Fast transportation, safe and accurate)

2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.

3. By truck. Fast transportation and low cost.

4. Other method as you customized.


shipping
