CE 6mm PCB SMT Screen Printer 200mm/Sec Squeegee A9

China UNIQUE AUTOMATION LIMITED certification
China UNIQUE AUTOMATION LIMITED certification
Good machine. Operate effectively with your wave solder machine. Thank you !

—— Abhijeet Saxena

Nice service!Can show me the solution in time when I have questions with machine. They are patient and kindly.

—— Mike Jasen

I'm Online Chat Now

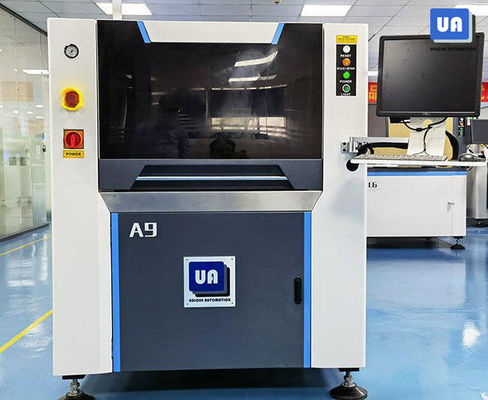

CE 6mm PCB SMT Screen Printer 200mm/Sec Squeegee A9

CE 6mm PCB SMT Screen Printer 200mm/Sec Squeegee A9
CE 6mm PCB SMT Screen Printer 200mm/Sec Squeegee A9
video play

Large Image :  CE 6mm PCB SMT Screen Printer 200mm/Sec Squeegee A9

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: A9
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 25 Units per month
Detailed Product Description
PCB Max Size: 510*340 Mm Squeegee Type: Stainless Steel
Squeegee Speed: 6-200 Mm/sec Squeegee Pressure: 0-15kg
Repeat Position Accuracy: ±0.008mm Printing Accuracy: ±0.02mm
Cycle Time: < 7s Product Changeover: <5min
High Light:

CE 6mm PCB Solder Paste Printer

,

200mm/Sec Squeegee SMT Screen Printer

,

CE 6mm SMT Screen Printer

Solder Paste Printer

Automatic Solder Paste Pinter SMT Screen Printer A9



Specification

Model A9
Screen Frames Min Size : 470*370 mm
Max Size : 737*737 mm
Thickness : 25-40 mm
PCB Min Size 50*50 mm
PCB Max Size 510*340 mm
PCB Thickness 0.4-6 mm
PCB Warpage < 1%
Transport Height 900±40 mm
Transport Direction Optional
Transport Speed Max 1500mm/S programmable
Board Location PCB Support System : Magnetic Pin/Up-dowm Table
Adjusted / Supportblock by Hand
Clamping System : Side Clamping, Vacuum Nozzle
Print head Two Independent Motorised Printheads
Cleaning System Dry, Wet, Vaccum (Programmableb)
Table Adjustment Ranges X: ±10mm; Y:±10mm
Solder Paste Inspection 2D Inspection Standard



Configuration Feature



Special Platform Calibration System

Use the world's most advanced UVW platform,With servo motor and lead screw, compact structure,

high reliability, smooth and stable lift up/down platform, platform height automatically adjust by

software control. Precisely realize different types of PCB thickness position height adjust.



Image And Optical System

Uniform ring light, high brightness coaxial light and advanced upper lower vision system

Full range of light compensation, Automatic and accurate recognized of all type MARK points.

Applicable for tin plating, copper plating, gold plating, tin spraying,FPC and other types PCB

with different colors, able to ensure high accuracy.



Operation Interface

Using Windows XP operation interface,and easy to learn for user, with good man-machine

interactive function. Programming is designed with teaching and navigation function,

guidance is available on every step. Chinese/English selective Operating Journal/Breakdown

Record/Breakdown Diagnosis



PCB Transport & Clamping System

Unique belt transmission system avoids being stuck or fall-off of PCB. Programmable motor

controls transport speed and puts PCB in the precise position. Free to choose left

or right as the PCB input/output direction.Flexible Arch bridge type suspending direct- connected

scraper side clamp and PCB support vacuum block hold PCB tightly and ensure the Print head

with the programmable and suspending self-adjusting stepper motor drive. Full even contact

between PCB and stencil.



Scraper system

Arch bridge type suspending direct- connected scraper side clamp and PCB support vacuum

block hold PCB tightly and ensure the Print head with the programmable and suspending

self-adjusting stepper motor drive.full even contact between PCB and stencil.

Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy

and stability when scraper is running back and forth. Two sets of separate scraper heads

are driven respectively by two high precision stepper motors, ensuring the accuracy and

stability of the pressure. The closed l0 pressure control system can accurately detect and

control the squeegee pressure during real-time production.



Cleaning system

Stencil cleaning system is automatic and effective. Three options of Dry cleaning,

Wet cleaning and Vacuum cleaning can be selected to use, both individually and multiply.

And you can also choose to clean manually.The unit to clean is separated from CCD

camera,which can minimize the load of motor and impulse, improve the positioning precision

and speed and extend the service life .Sprinkler system ensures spraying evenly, from top

to bottom.The software function can control the dosage of alcohol and stencil

cleaning paper, Effectively save more consumables.Vacuum cleaning is supported

with a dedicated fan,powerful and effective.The cleaning system has patents.
