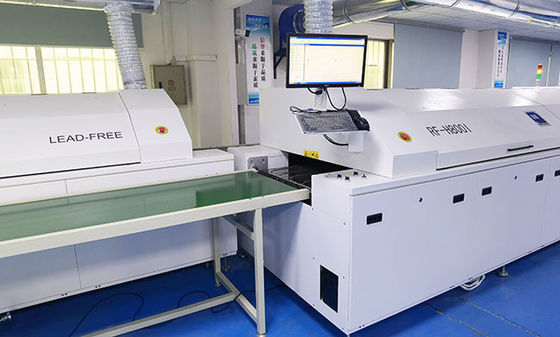

Forced Air Coooling SMT Reflow Oven 3P AC380V 1500mm/min Conveyor

Forced Air Coooling SMT Reflow Oven 3P AC380V 1500mm/min Conveyor
Forced Air Coooling SMT Reflow Oven 3P AC380V 1500mm/min Conveyor
video play

Large Image :  Forced Air Coooling SMT Reflow Oven 3P AC380V 1500mm/min Conveyor

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-H600Ⅰ
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: USD
Detailed Product Description
Machine Dimension: 4450*1490*1510mm Heating Zone Length: 2282mm
Control: PC+PLC Temp Range: Room Temperature-320℃
PCB Width: 50-400 Mm Conveyor Speed: 20-1500 Mm/min
Parts Height: Up 35 Mm / Down 20 Mm Running Power (kw): 7.5
High Light:

3P AC380V SMT Reflow Oven

,

1500mm/Min Conveyor SMT Reflow Oven

,

3P AC380V convection reflow oven

SMT Reflow Oven
6 Zones Lead Free SMT Reflow Oven for SMT Production Line


Features
· Even temperature and high heat compensation efficiency,especially suitable for soldering
  of BGA CSP components.

· The patent wind wheel design can ensure wind speed windspeed can be adjusted by
   frequency conversion

· All temperature zone applies coercive independent cycles PID controls and up & down

  heating style, which make the temperature of theoven accurate with a large heat capacity

· Quick warm up, it takes less than 20 minutes to heat fromthe normal temperature to the working temperature

· The upper cover of the oven is raised by electric handspike, safe and credible

· Automatically monitoring and displaying the working condition of the oven the parameter of the
  oven can be modified at any moment

· The guide rail is made of special aluminum alloy with high rigidity accuracy and intensity,
   with auto chain lubricating system

· Powerful programming software’s controlling system, it can detect the online temperature of PCB
   and can analysis save and print the profiles

· SMEMA compatible

Specifications

Modle RF-H600I
Machine Dimension (mm) 4450*1490*1510
Weight (kg) Approx.1700
Heating Zone Length (mm) 2282
Running / Starting Power (kw) 6.5 / 27
Control PLC + PC
Temp Range Room Temperature ~ 320C
Temp Accuracy ± 1C
Temp Deviation ± 2C
PCB Width (mm) 50 - 400 ( or customized )
Cooling Type Forced-air Coooling
Cooling Zone length ( mm ) 600
Conveyor Type Chain and Mesh Belt
Conveyor Speed (mm/min ) 20-1500
Mesh Belt Width ( mm ) 460 ( or Customized )
Parts Height On Baoard 35mm / Under Board 20mm
Power Supply 3P/AC 380V OR 3P/AC 220V
Options Available 450/500 max PCB width
Central support for big PCB
Extra cooling zone


Package and Shippment



Package : We use the way of internal vacuum packing and outer wooden packing.

Forced Air Coooling SMT Reflow Oven 3P AC380V 1500mm/min Conveyor 0

wooden packing



Shippment :



1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.

( Fast transportation, safe and accurate)

2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.

3. By truck. Fast transportation and low cost.

4. Other method as you customized.

shipping
