PLC PC 10 Zones SMT Reflow Oven Machine Lead Free Assembly Line

China UNIQUE AUTOMATION LIMITED certification
China UNIQUE AUTOMATION LIMITED certification
Good machine. Operate effectively with your wave solder machine. Thank you !

—— Abhijeet Saxena

Nice service!Can show me the solution in time when I have questions with machine. They are patient and kindly.

—— Mike Jasen

I'm Online Chat Now

PLC PC 10 Zones SMT Reflow Oven Machine Lead Free Assembly Line

large.img.alt
large.img.alt
video play

Large Image :  PLC PC 10 Zones SMT Reflow Oven Machine Lead Free Assembly Line

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-H800Ⅰ
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: USD
Detailed Product Description
Weight (kg): Approx.2100 Control: PLC + PC
Parts Height: On Baoard 35mm / Under Board 20mm Mesh Belt Width ( Mm ): 460 ( Or Customized )
Heating Zone Length (mm): 2932 Temp Accuracy: ± 1C
Machine Dimension (mm): 5150*1490*1510 Conveyor Speed (mm/min ): 20-1500
High Light:

10 Zones SMT Reflow Oven

,

PLC SMT Reflow Oven

,

10 Zones SMT Reflow Machine

PLC PC 10 Zones SMT Reflow Oven Machine Lead Free Assembly Line



Lead Free Reflow Oven, Assembly Line 10 Zones SMT Reflow Machine



Features

1. Heating mode is "upper circulating hot air + lower infrared hot air". It is equipped with three forced cooling zones.
2. Upper heating adopts microcirculation heating method, which can achieve large heat-air exchange and has very high heat exchange rate. It can reduce the setting temperature in the temperature zone and protect the heating elements. It is particularly suitable for lead-free welding.
3. Microcirculation heating mode, vertical air blowing and vertical air collecting can solve the problem of dead angle when using guide rail in reflow soldering.



Product Specification of Reflow Oven

Modle RF-H800I
Temp Accuracy ± 1C
Temp Deviation ± 2C
Weight (kg) Approx.2100
Cooling Type Forced-air Coooling
Control PLC + PC
Power Supply 3P/AC 380V OR 3P/AC 220V
Parts Height On Baoard 35mm / Under Board 20mm
Temp Range Room Temperature ~ 320C
Mesh Belt Width ( mm ) 460 ( or Customized )
Heating Zone Length (mm) 2932
Options Available 450/500 max PCB width
Central support for big PCB
Extra cooling zone
Cooling Zone length ( mm ) 600
Conveyor Type Chain and Mesh Belt
Temp Accuracy ± 1C
Running / Starting Power (kw) 8.5 / 33
Machine Dimension (mm) 5150*1490*1510
PCB Width (mm) 50 - 400 ( or customized )
Conveyor Speed (mm/min ) 20-1500



Soddle Profile
The componnetn is brought to a temperature of at least 240C for soldering. Using a saddle profile the board is gradually heated in line with pre-defined, individual temperature ranges. Even components with differing thermal masses are heated homogeneously and temperature differences mimimised.

Linear profile:

With a linear profile, the component is not heated in a stepped manner during soldering, in fact it is heated along anidentical linear temperature gradient. Linear profiles can reduce cycle times andcan help to reduce soldering errors suchas tombstoning.



The Pictures Showing of Reflow Oven

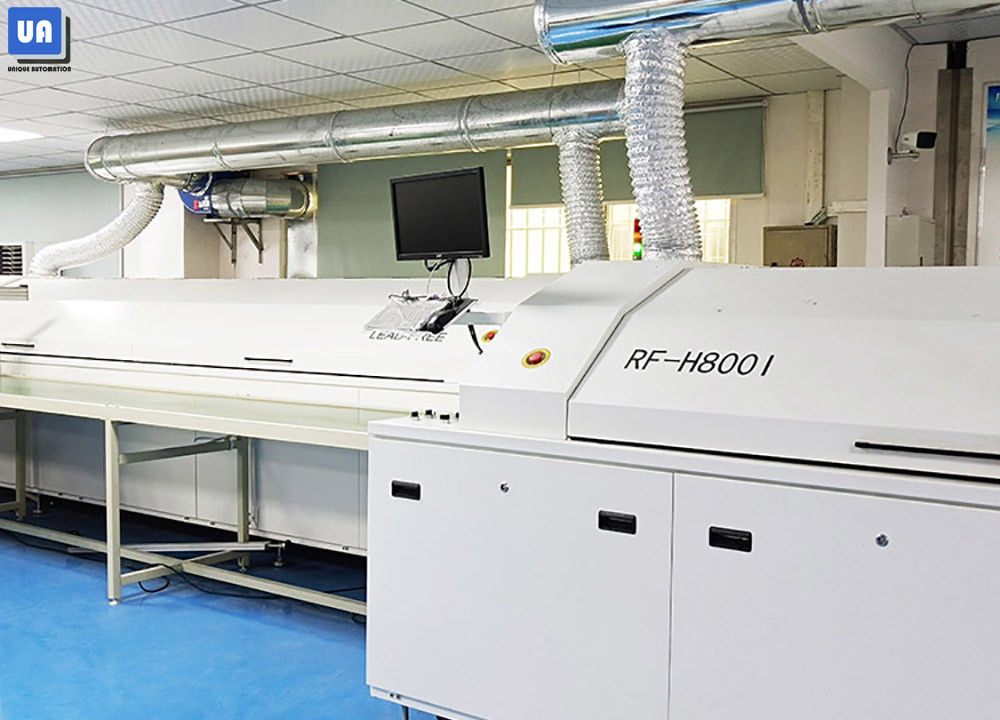

PLC PC 10 Zones SMT Reflow Oven Machine Lead Free Assembly Line 0
