Product Details:
Payment & Shipping Terms:
|
| Control: | PLC + PC | Cooling Zone Length ( Mm ): | 600 |
|---|---|---|---|
| Parts Height: | On Baoard 35mm / Under Board 20mm | Conveyor Speed （mm/min ): | 20-1500 |
| Weight (kg): | Approx.2100 | Mesh Belt Width ( Mm ): | 460 ( Or Customized ) |
| Heating Zone Length （mm): | 2932 | Machine Dimension (mm): | 5150*1490*1510 |
| High Light: | 8 Zones SMT Reflow Oven,SMT Reflow Oven,Reflow Soldering Machine |
||
High Pressure 8 Zones SMT Reflow Oven Lead Free Assembly
8 Zones Reflow Oven Equipment, SMT Assembly Machine Lead Free Reflow Oven
Parameter of Reflow Oven RF-H800I Equipment
| Modle | RF-H800I |
| Control | PLC + PC |
| Temp Deviation | ± 2C |
| Cooling Zone length ( mm ) | 600 |
| Parts Height | On Baoard 35mm / Under Board 20mm |
| Conveyor Speed (mm/min ) | 20-1500 |
| PCB Width (mm) | 50 - 400 ( or customized ) |
| Weight (kg) | Approx.2100 |
| Running / Starting Power (kw) | 8.5 / 33 |
| Mesh Belt Width ( mm ) | 460 ( or Customized ) |
| Temp Accuracy | ± 1C |
| Temp Range | Room Temperature ~ 320C |
| Heating Zone Length (mm) | 2932 |
| Conveyor Type | Chain and Mesh Belt |
| Machine Dimension (mm) | 5150*1490*1510 |
| Power Supply | 3P/AC 380V OR 3P/AC 220V |
| Cooling Type | Forced-air Coooling |
Main Features of Reflow Oven RF-H800I
① Simple structure in linear type ,easy in installation and maintation.
② Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
③ High pressure double crank to control the die opening and closing.
④ Running in a high automatization and intellectualization,no pollution
⑤ Apply a linker to connect with the air conveyor,which can directly inline with filling machine .
Detailed picture of reflow oven 8 zones

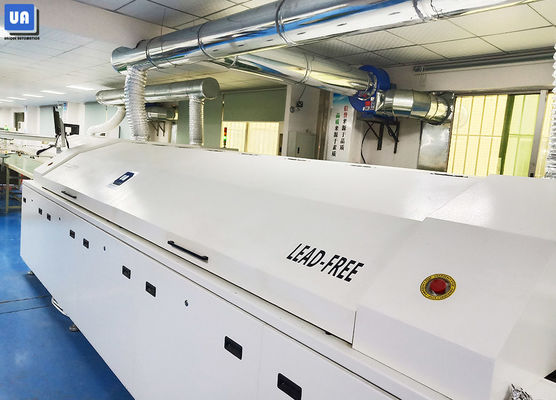

Picture of reflow oven RF-H800I
