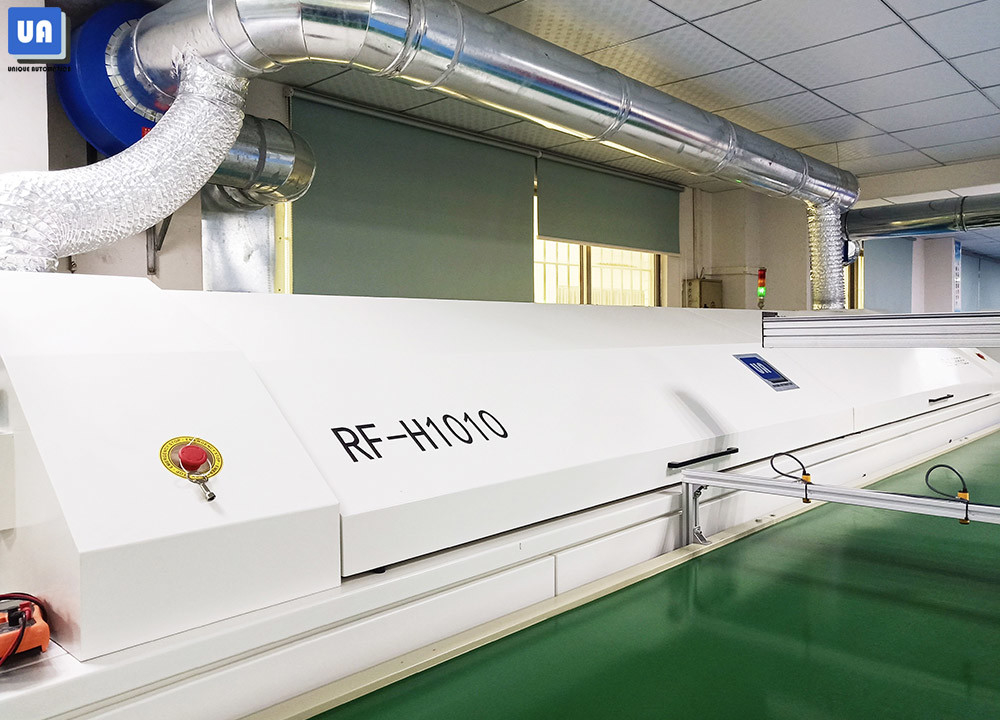

10 Heating Zones Lead Free Reflow Oven SMT Assembly Line Machine
SMT Assembly Line Machine 10 Heating Zones Lead Free Reflow Oven
Features
Simple: combined with advanced international concepts, based on theOriental-designed operating system, easy to understand, easy to learn,easy to maintain.
Expertise: learn imported reflow oven's advanced design concepts, and themachine core components are using imported top brands.
Hedging: Import hardware configuration,low failure rate in production,morethan a decade service life.
Safety: Based on the general rules of international design, close to importedreflow rating, the highest security level.
Stable: mature software, hardware and top production processes ensuresstability of each equipment.
Parameter Table
| Modle | RF-H1010I |
| Control | PLC + PC |
| Temp Accuracy | ± 1C |
| Weight (kg) | Approx.2500 |
| Parts Height | On Baoard 35mm / Under Board 20mm |
| Machine Dimension (mm) | 5850*1490*1510 |
| Heating Zone Length (mm) | 3632 |
| Mesh Belt Width ( mm ) | 460 ( or Customized ) |
| Conveyor Type | Chain and Mesh Belt |
| Power Supply | 3P/AC 380V OR 3P/AC 220V |
| Cooling Type | Forced-air Coooling |
| Cooling Zone length ( mm ) | 600 |
| Temp Deviation | ± 2C |
| Conveyor Speed (mm/min ) | 20-1500 |
| Running / Starting Power (kw) | 11 / 37 |
| Temp Range | Room Temperature ~ 320C |
| PCB Width (mm) | 50 - 400 ( or customized ) |
Control System

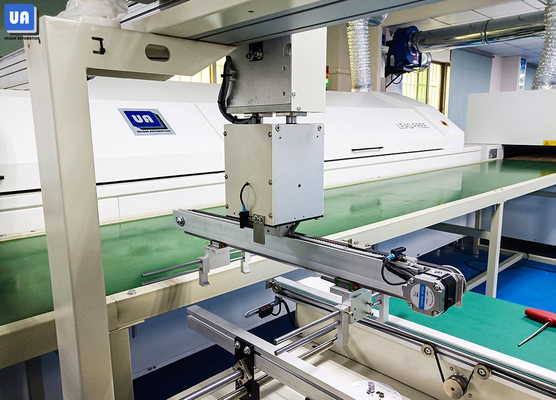

Conveyor Rail
