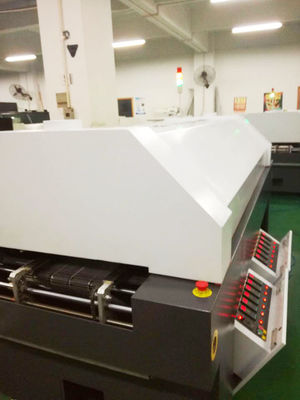

550KG Lead Free Reflow Oven Machine 5 Zones RF-5

550KG Lead Free Reflow Oven Machine 5 Zones RF-5
550KG Lead Free Reflow Oven Machine 5 Zones RF-5 550KG Lead Free Reflow Oven Machine 5 Zones RF-5 550KG Lead Free Reflow Oven Machine 5 Zones RF-5 550KG Lead Free Reflow Oven Machine 5 Zones RF-5 550KG Lead Free Reflow Oven Machine 5 Zones RF-5

Large Image :  550KG Lead Free Reflow Oven Machine 5 Zones RF-5

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable ( USD )
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 50 units per month
Detailed Product Description
No. Of Cooing Zones: 1 Length Of Heating Zones: 1810 MM
Cooling Method: Forced Air Max. Width Of PCB: <300 MM
PCB Conveyor Method: Mesh Only Heating Zone Number: 5 Zones
Product Name: Reflow Oven Machine RF-5 Temp. Setting Range: ~ 300 C
High Light:

550KG Lead Free Reflow Soldering Machine


5 Zones reflow oven machine


550KG reflow oven machine

Lead Free SMT Reflow Oven 5 Zones SMT Reflow Soldering Machine RF-5


Product Features :

1. Design for low volume production or lab.


2. PID control by temperature control meter.


3. Independent control temperature for upper and bottom zones.


4. Modular designed heaters for easy maintenance.


5. Conveying system only equipment with mesh (No option )


6. The unique advanced long life heating system. The heating system adopt the

Swedish nickel flipping pipe which with high efficiency and energy saving.


7. The Electrical control system is stable and reliable. It adopts imported thermostat

control which owns fuzzy control and PID intelligent precision control system.


Product Parameter :

Model RF- 5
No. of Heating Zones Tops 5 & Bottom 5
No. of Cooling Zones 1
Length of Heating Zones 1800 MM
Temp. Setting Range Room Temp ~300C
Temp Control Precison ±2C
Temp Deviation on PCB ±5C
Cooling Method Forced Air
Converyor Height 880±20 MM
PCB Converying Method Mesh only
Startup Power 24 KW
Normal Operation Power 4 KW
Weight 550 KG



RF-5 Lead Free Reflow Oven Machine

Reflow Oven Machine RF-5

Packge and Shipping
vacuum packing
Wooden packing


Company Profile


Our company Unique Automation Limited Co.,Ltd (UA) was founded in Shenzhen and have

more than 11 years’ history. We are the manufacturer of High Precision SMT Equipment.


We specialized in those machine, such as SMT laser marking machine, conveyors,

PCB/PCBA loader & unloader, wave soldering machine, reflow oven, SMT automatic

vision paste printer, THT production lines, fixtures/pallets, SMT consumables, etc.


We have exported these equipment to more than 30 countries in Europe, America,

Middle-east, Southeast Asia, and Africa.


If u are interested in our products, welcome to visit our company or contact us for more information.


Our Service


With the aim of “Quality First, Customer Priority”, We try our best to service customers

and as soon as possible meet their requirements. Provide them best quality equipment

with lower cost. Customer not only is our god, but also is our friend.

1. We provide customer the top technical support.

2. We can help u to deal with all the trouble about SMT.

3. We will show the best professional tech service to u.

4. We have 11 years’ experience in this line.

5. We are committed to offer u the best solution.

6. We can offer u the video support for solving doubt.
