Product Details:
Payment & Shipping Terms:
|
| Dimensions (mm): | 4200*1400*1700 | Weight: | 1560 Kg |
|---|---|---|---|
| Control: | Temp. Control Meter + PLC | Preheating Zone Length (mm): | 1800 |
| Preheater: | Ceramic IR Heating Pipe | Solder Pot Capacity (kg): | 410 Kg |
| Conveyor Width Adjust: | Electric Control | Conveyor Height: | Approx. 750 MM |
| Transmission Method: | Air Cylinder | Flux Feeding: | Auto Feed |
| Cooling Type: | Forced Air Cooling | Power Supply: | 3P/AC 380V 3P/AC 220V |
| Finger Kind: | V, L Or Customized | ||
| High Light: | 410kg Pot Reflow Soldering Oven,750mm Conveyor Reflow Soldering Oven,750mm Conveyor reflow oven machine |
||

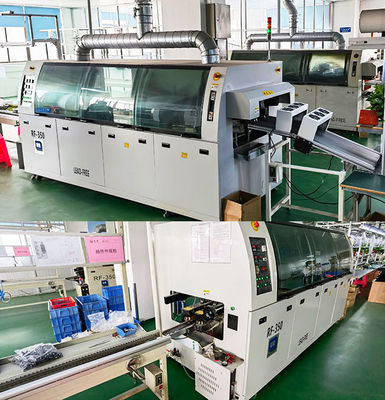

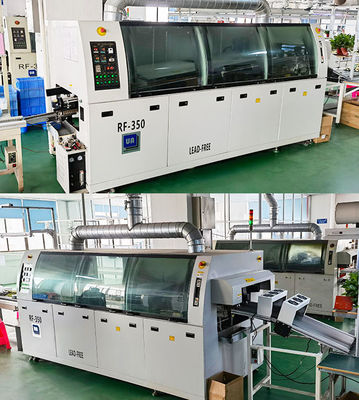

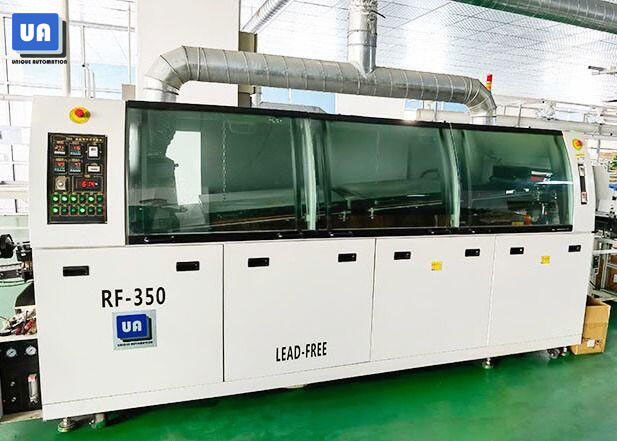

Lead Free Wave Soldering Machine SMT Reflow Soldering Machine RF-350A
Features
1.Totally design for Lead Free process.
2. Streamline design design with the curve glass windows for easy viewing and maintenance.
3. Standard adopted high quality cylinder and nozzle to get uniform flux spraying,
adding the curtains to reduce the leakage of flux smog.
4. Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

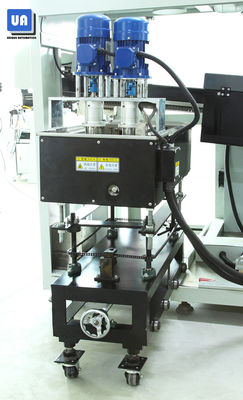

5. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
7. Automatic claw cleaning function ensure the cleanliness of claws.
8. Lead-free solder furnace with independent design, environmental protection and safety, easy to clean.
9. PLC control and temperature control meter.
10. The preheating zones using the high efficiency IR ceramic heaters to achieve strong
and stable heating results.
Specifications
| Model | RF-350A |
| Spraying System | |
| Transmission Method | Air cylinder |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Exhaust Capacity | 25M3/min |
| Preheating System | |
| Preheating Model | IR tube Option : Hot Air Convection |
| No. of Preheating Zones | 3 |
| Preheating Length | 1800 MM |
| Preheating Temp. | Room Temperature : ~300C |
| Warm Time | Approx. 20/min |
| Conveyor System | |
| PCB Width ( L x W ) | 350 MM |
| Conveyor Direction | Optional |
| Conveyor Height | 750 MM |
| Componet Clearance (mm ) | 130 MM |
| Conveyor Width Adjustment | Manual |
| Conveyor Angle | 4 ~ 6 C |
Installation Drawing
Package and Shipping
Packing : internal vacuum packing and outer wooden packing.
Shipping method
1. By air.
2. By sea.
3. By truck.
4. Other as u like
Our Service
1. Recommend you suitable products and provide free samples for testing
2. Provide you professional consultation for free and reasonable quotation
3. Analyze samples for free and provide similar products
4. Provide you customized products, including specification, size, product printing and inner and outer package.
We are pleased to become your trustful partner and we are dedicated to provide you with considerate help.
