| Running / Starting Power (kw): | 11 / 37 | Conveyor Speed （mm/min ): | 20-1500 |
|---|---|---|---|
| Power Supply: | 3P/AC 380V OR 3P/AC 220V | Heating Zone Length （mm): | 3632 |
| Cooling Zone Length ( Mm ): | 600 | Parts Height: | On Baoard 35mm / Under Board 20mm |
| PCB Width （mm): | 50 - 400 ( Or Customized ) | Control: | PLC + PC |
| High Light: | PLC SMT Reflow Soldering Machine,10 Zone Reflow Oven SMT Reflow Soldering Machine,SMT 10 Zone Reflow Oven |
||
PLC PC Hot Air SMT Reflow Soldering Machine With 10 Heating Zones
Hot Air SMT Machine Reflow Oven 10 Heating Zones for Production Line
Parameter Table of Reflow Oven Equipment RF-H1010I
| Modle | RF-H1010I |
| Temp Accuracy | ± 1C |
| Machine Dimension (mm) | 5850*1490*1510 |
| Cooling Type | Forced-air Coooling |
| Running / Starting Power (kw) | 11 / 37 |
| Weight (kg) | Approx.2500 |
| Conveyor Speed (mm/min ) | 20-1500 |
| Temp Range | Room Temperature ~ 320C |
| Control | PLC + PC |
| Power Supply | 3P/AC 380V OR 3P/AC 220V |
| Options Available | 450/500 max PCB width Central support for big PCB Extra cooling zone |
| Conveyor Type | Chain and Mesh Belt |
| Heating Zone Length (mm) | 3632 |
| Parts Height | On Baoard 35mm / Under Board 20mm |
| Mesh Belt Width ( mm ) | 460 ( or Customized ) |
| Cooling Zone length ( mm ) | 600 |
| Temp Deviation | ± 2C |
| PCB Width (mm) | 50 - 400 ( or customized ) |
Transport system :
1. Reliable, failure-free production guaranteed by absolutely parallel transport.
2. Precise and repeatable adjustment of thetransport width.
3. Reduced maintenance, transport drivemechanism is outside of the processchamber.
4. Ideal for any application due to varioustransport systems.
5. High process reliability by integrated centerboard support.
Cooling system:
1. Stress- free cooling using individually adjustable ventilators in the classic cooling zones
2. Gentle cooling through the use of the power cooling unit as an extended cooling tract
3. Optimum cooling of large, high-mass boards thanks to additional bottom cooling.
4. Flexible combination possibilities through a range of different options
5. New, sustainable cooling principle as a result of liquid nitrogen cooling
Control System of Reflow Oven Equipment
Conveyor Rail of Reflow Oven Equipment

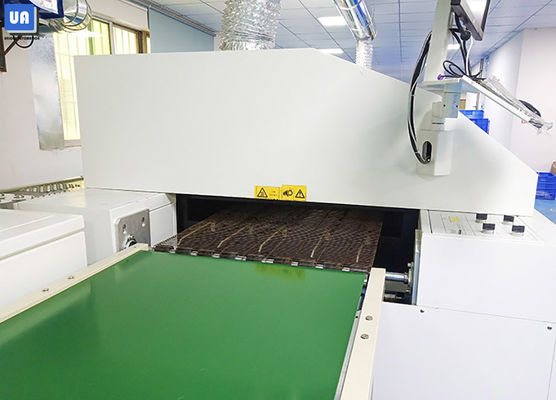

Pictures showing of reflow oven RF-H1010I
