| PCB Min Size: | 50×50mm | PCB Max Size: | 510×340mm |
|---|---|---|---|
| PCB Thickness: | 0.4~6mm | PCB Warpage: | <1% |
| Transport Height: | 900±40mm | Transport Direction: | Left-Right;Right-Left;Left-Left;Right-Right |
| Transport Speed: | Max 1500mm/s(Programmable) | Clamping System: | Side Clamping,vacuum Nozzle, |
| High Light: | 1500mm/s Automatic Solder Paste Printer,Thick 6mm PCB Printing Machine,1500mm/s Automatic Stencil Printer |
||
SMT PCB Automatic Solder Paste Printer Machine For Assembly Line
SMT Machine PCB Automatic Solder Paste Printer for Assembly Line
The specificcation of Solder Paste Printer A6
| Specifications | |||
| Min Size | 470×370mm | ||
| Screen Frames | Max Size | 737×737mm | |
| Thickness | 25~40mm | ||
| PCB Min Size | 50×50mm | ||
| PCB Max Size | 510×340mm | ||
| PCB Thickness | 0.4~6mm | ||
| PCB Warpage | <1% | ||
| Transport Height | 900±40mm | ||
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | ||
| Transport Speed | Max 1500mm/s(Programmable) | ||
| Board Location PCB | Support System | Magnetic Pin/Up-down table adjusted | |
| /support block | |||
| Clamping System | Side clamping,vacuum nozzle, | ||
| Automation retractable Z pressure | |||
What's the solder paste printer ?
Solder Paste printing, a complex mixture of tiny particles of solder alloy and flux vehicle, is
a challenging material to print onto a bare Surface Mount Technology (SMT) PCB. Solder
paste printed deposits are essential to forming defect-free solder joints, the electrical and
physical connections between electronic components and the PCB assembly. MPM printers
excel in printing crisp, accurate, defect-free deposits of solder paste through metal foil stencils
onto PCBs with consistent results every time, shift after shift, board after board, with precise,
repeatable results. MPM printers deliver a repeatable paste printing process that ensures high
product quality, robustness, and in-the-field reliability for the widest range of SMT assembly
applications, from Hi-rel Military to consumer and commercial/industrial electronic devices.

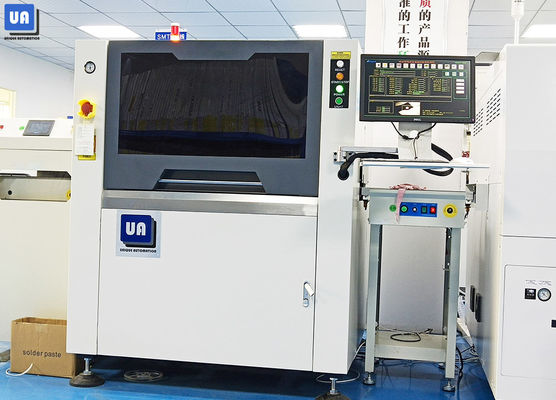

Pictures of Solder Paste Printer A6
Assembly workshop
Testing before delivery
Control system
How does solder paste printing work?
Essentially, a screen printing device uses a stencil of the finished boards components to apply
solder paste to the board with extreme precision. Solder paste is exactly what it sounds like – a
blended mix of flux medium and graded particles of solder powder.
