Product Details:
Payment & Shipping Terms:
|
| PCB Width: | 50*50-530*460 | Power Supply: | AC 220V 50/60 Hz |
|---|---|---|---|
| Control Mode: | PLC + Touch Panel Screen | Air Supply: | 4-5 Kg/cm² |
| New Weight: | 170 Kg | Machine Dimension: | 500 * 850 * 1260 Mm |
| Circle Time: | Approx 10s | PCB Thickness: | 0.4-4.0 Mm |
| High Light: | 4.0mm Thickness PCB Conveyor,SMEMA Compatible PCB Inverter Conveyor,170KG PCB Inverter Conveyor |
||
Description

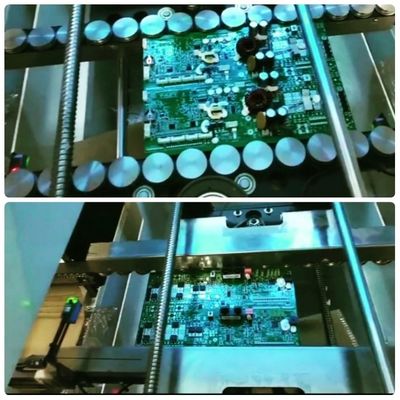

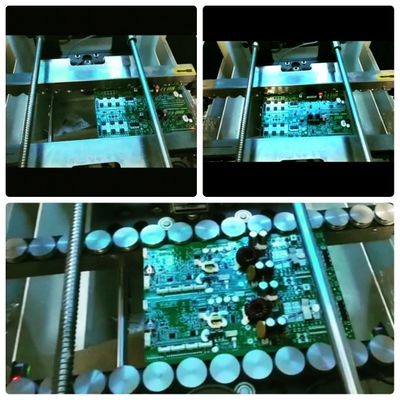

This unit is used to invert PCBs (180°) for “double-sided” process.
Features
1. PLC + LED touch screen control system, easy to operate.
2. Enclosed design with built in torque limiter ensures highest level of safety.
3. Top cover can be opened, easy to do maintenance.
4. By pass mode available.
5. Smooth and precise inverting motion.
6. Small machine footprint.
7. With SMEMA signal.
Specifications
| Size | Model | Machine Dimension (mm) | PCB Dimension (mm) | Weight (kg) |
| L | TM-330 | 500*850*1250 | 50*50-400*350 | 150 |
| XL | TM-460 | 600*960*1250 | 50*50-530*460 | 170 |
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : What is your payment terms?
T/T, L/C, etc
Q3: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer wooden packing.
Or according to your requirement.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the payment.
Q5:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange the free training for you.
Q6 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before delivery.
`
Q7: Why choose UA ?
Experienced in design and manufacturing of SMT equipment, UA is one of the most professional
solution providers in the SMT equipment market.
