Product Details:
Payment & Shipping Terms:
|
| Dimension (L*W*H): | 5010 *1300 *1450mm | Heating Zone Length: | 2955 Mm |
|---|---|---|---|
| Control: | PC+PLC | Temp. Setting Range: | Room Temperature ~320℃ |
| Conveyor Height: | 900±20 Mm | Conveyor Speed: | 20-1500 Mm/min |
| Parts Height: | Up 35 Mm / Down 20 Mm | Startup / Running Power: | 9 Kw |
| Mesh Width: | 450 Mm | PCB Conveying Method: | Mesh And Rails |
| High Light: | AC220V Lead Free Reflow Soldering Machine,3P AC220V Wave Soldering Oven,8 Zones AC220V Wave Soldering Oven |
||

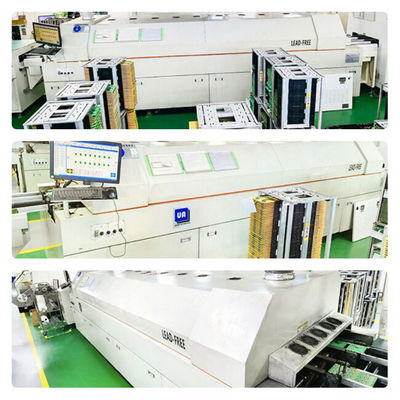

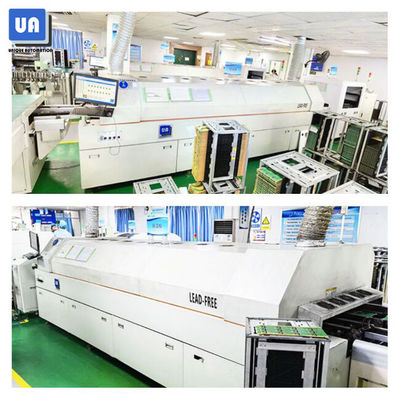

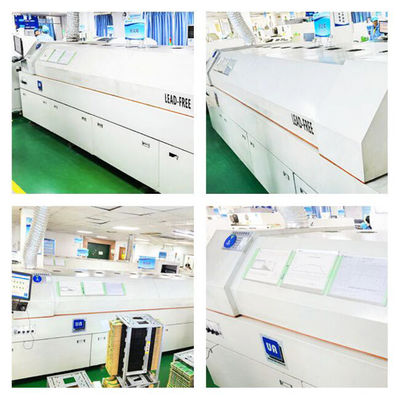

8 Zones Reflow Oven Lead Free Machine RF-800I
Specifications
| RF-700Ⅰ | RF-800Ⅰ | RF-1010Ⅰ | |
| Machine Dimension (mm) | 4650*1300*1450 | 5000*1300*1450 | 5700*1300*1450 |
| Weight (kg) | Approx. 1650 | Approx. 1800 | Approx. 2200 |
| Heating zone length (mm) | 2600 | 2950 | 3650 |
| Running / starting power (kw) | 7 / 30 | 9 / 33 | 11 / 35 |
| Control | PLC+PC | ||
| Temp range | Room temperature-３２０℃ | ||
| Temp accuracy | ±１℃ | ||
| Temp deviation | ±2℃ | ||
| PCB width (mm) | 50-400 (or customized) | ||
| Cooling type | Forced-air cooling | ||
| Cooling zone length (mm) | 600 | ||
| Conveyor type | Chain and mesh belt | ||
| Conveyor speed (mm/min) | 20----1500 | ||
| Mesh belt width (mm) | 450 (or customized) | ||
| Parts height | On board 35 mm / Under board 20 mm | ||
| Power supply | 3P/AC 380V OR 3P/AC 220V | ||
| Options available |
N2 450/500 max PCB width Central support for big PCB Extra cooling zone |
||
Features
1. Center support : no mesh available if choosing center support.
2. Dual lane : front and rear rails are fixed, center rails are adjustable.
3. Nitrogen Ready : including Nitrogen piping, Hemertic configuration and Flow meter.
4. Nitrogen System : just add oxygen analyzer and water chiller against above ready.
5. Nozzle Plate: Micro-circulation Hot Air.
6. The digital control system adopted with PLC+Modular Circuit to stabilized and accurate of repetitive precision.
7. Temperature monitoring system to check each zone temp. Every second, and auto cut off
he power of heater when it over setting temperature.
8. Flat rails with special treatment can ensure no ensure no deforming
9. Have automatic lubrication system
10. High Quality blower motors provide good heat transferring
11. Flow meter, precisely and credibility.
12. Unique mirco-circulation heating module to make the heat transferring more uniform and efficient.
13. Soldering profiles can deal with various lead free process.
Control System
Conveyor Rail
Packge and Shipping
Our Service
UA devote to serve customers and meet all their diversified requirements.
1. Provide good equipment with stable technical level, innovative design concept,
precise manufacturing process, reasonable price.
2. Respond to customer in time. Our staff will feedback to you in time. Don’t ignore your questions.
3. One year product warranty.
4. Rich experience in SMT line with over 11 years.
5. The OEM service is available.
6. Low requirement about product MOQ.
7. Offer u video Support / online support.
We sincerely hope can be your friend with our products.
