Product Details:
Payment & Shipping Terms:
|
| Weight: | 1608 KG | Control: | PLC + PC (Computer) |
|---|---|---|---|
| Preheating Zone Length: | 1800 MM | Conveyor Width Adjust: | Electric Control |
| Transmission Method: | Air Cylinder | Flux Feeding: | Auto Feed |
| Production Time: | 10-20 Working Days | Size: | 4200*1400*1700 (L*W*H ) |
| High Light: | 1600kg Lead Free Wave Solder,L Finger Reflow Soldering Machine,V Finger solder reflow oven |
||
1600kg Lead Free Wave Soldering Machine V L Finger Solder Machine Wave Welding RF-350B
Specifications
| Mode | RF-350B |
| General | |
| Dimension ( L*W*H ) | 4200*1400*1700 |
| Weight | 1600 kg |
| Operating System | |
| Control Mode | PLC + Computer |
| Spraying System | |
| Transmission Methos | Step Motor |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow Meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Preheating System | |
| Preheating System | IR Tube Option: Hot Air Convenction |
| Preheating Length | 1800MM |
| Preheating Temp | Room Temperature ~300C |
| Warm-up Time | Approx. 20/Min |
Features
1. Lead-free solder furnace with independent design, environmental protection and safety, easy to clean.
2. Automatic power system, frequency converter control, automatic board input system.
3. Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
4. Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design,
simple operation, convenient maintenance.
5. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6. Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless
pneumatic cylinders and PLC control, accurate and reliable.

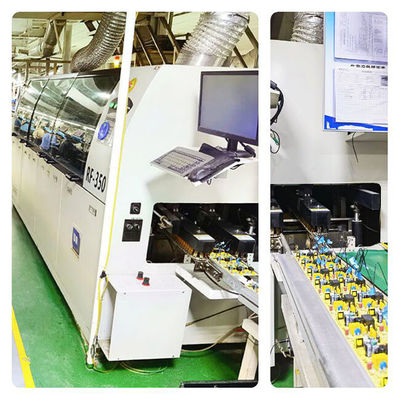

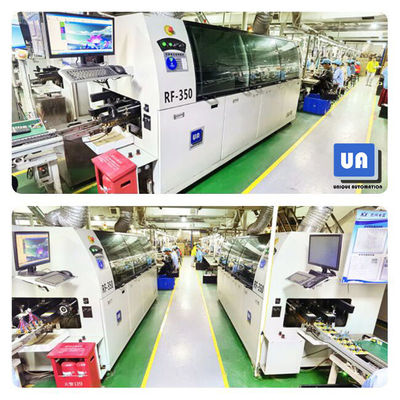

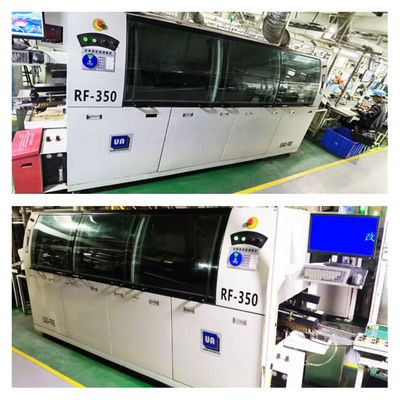

Pictures Showing
Installation Drawing
Package and Shipping
