Product Details:
Payment & Shipping Terms:
|
| PCB Size: | 50*50-450*460mm Or 50*50-450*250mm | Power Supply: | AC 220V 50/60 Hz |
|---|---|---|---|
| Control Mode: | PLC + Touch Panel Screen | Air Supply: | 3-6kg/cm² |
| New Weight: | 160 Kg | Machine Dimension: | L*W*H 1000*810*900 Or 1000*1250*900 |
| Conveyor Speed: | 0-3000 Mm/min | Convoy Height: | 900±20 Mm |
| High Light: | 900mm Height PCB Inspection Conveyor,Dual Lane PCB Sieving machine,Dual Lane PCB Inspection Conveyor |
||
Inspection Conveyor Sieving Machine PCB Conveyor for SMT Production Line
This unit is used in SMT production line, connecting with the detection equipment (SPI/AOI),
according to the NG/OK signal, OK board pass thru directly, NG board be lifted and stored
upon the conveyor, can stock max 8 pcs of PCB, if the PCBs full on the conveyor, there is
an alarm signal. NG boards can be lifted for visual inspection without interrupting the PCBs flow.
Product Features
1. Modular design.
2. Solid design improves stability.
3. Inspection mode and automatic mode.
4. Inducing multi-zone position accuracy.
5. Ergonomic design, make your arms easy.
6. Custom machine length according to customer's requirement.
7. Variable speed control.
8. Compatible SMEMA interface.
*: Option: Dual rail
Parameter
| Model | Machine Dimension (mm) | PCB Dimension (mm) | PCB Storage Capacity | Weight (kg) | |
| Single Lane | SX-800 | 1000*810*900 | 50*50-450*460 ( or Customized ) |
3-8 pcs | 90 |
| Dual Lane | SX-800 II | 1000*1250*900 | 50*50-450*250 | 3-8 pcs | 160 |

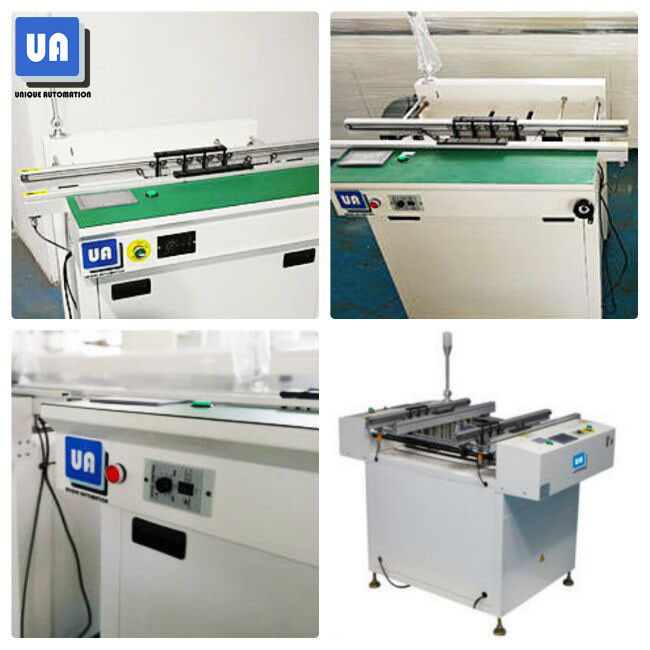

Product Showing
