1.9g/Cm3 Wave Soldering Pallet Flux Resistant Reflow Pallet

Good machine. Operate effectively with your wave solder machine. Thank you !

—— Abhijeet Saxena

Nice service!Can show me the solution in time when I have questions with machine. They are patient and kindly.

—— Mike Jasen

I'm Online Chat Now

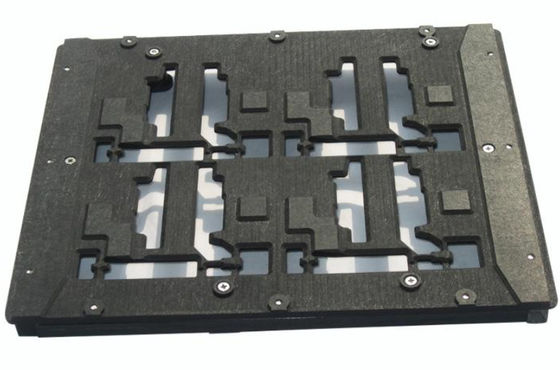

1.9g/Cm3 Wave Soldering Pallet Flux Resistant Reflow Pallet

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  1.9g/Cm3 Wave Soldering Pallet Flux Resistant Reflow Pallet

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: SGS, ROHS
Model Number: CUSTOMIZED
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5 days
Payment Terms: T/T
Supply Ability: 600 pcs per day
Detailed Product Description
Material: Fiber Glass Mat + High Temperature Resin Application: High Temperature, PCB Assembly
Color: Black,grey,blue Thickness: 5-50 Mm
Life Cycles: >16,000 Times Working Temperature: 250°C~300°C
Density: 1.9 G / Cm3 Size: As Per Drawings
High Light:

1.9g/cm3 Wave Soldering Pallet


Flux Resistant Wave Soldering Pallet


1.9g/Cm3 Flux Resistant Reflow Pallet

PCB Pallet

Flux Resistant Long Life Cycles Wave Soldering Pallet With High Work Temperature


Each one of our pallet is custom designed to meet our client's requirements. Just tell us your ideas,our experienced engineers will offer the best solution for you.
Our advantages
-  Price: With our own pallet materials and CNC machines, we can provide the most competitive price to our customers.
-Quality: With long time production experience, our pallets have been widely approved by our customers both home and abroad.
The precision can be controlled within -/+0.02mm
- Lead time: 3-5 days for samples, 5-8 days for bulk order.
- Professional sales team: Our sales engineer know well about material&machining. You can discuss any engineering issue with us for any questions.
We can also design pallets as per client's requirement. Below information are necessary for the pallet design.
1.2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets
2.Gerber file of bare board+ Loaded PCB sample(PCB board with components)
5 ways to maximize the life of PCB pallets
What are the most important things to pay attention to while using solder pallet fixture?
1. Gentle care and proper handling. Fracture damage most often occurs while transferring the unit. To avoid damage to the protective wall, as well as other parts of the solder pallet fixture, it is important to have a dedicated management position.
2. Avoid strong acid and alkali contact. Exposure to strong acids or bases will easily corrode the solder pallet fixture.
To avoid this a neutral flush is recommended.
3. Avoid using alcohol and alcohol-based cleaning agents. Saponifiers are the recommended cleaning agent.
4. Shockproof transportation. Units can receive shock damage while being transported through the A shockproof cart is recommended.

5. Store the solder pallet fixtures in an upright position. Deformations can be happened if the unit is improperly stored.

To avoid deformations caused by stacking it is recommended that units be stored on shelves.


Technical Data Sheet
Name PCB pallet for wave solder
Grade Anti-static
Density(g/cm3) 1.9
Flexural Strength 3 point support⊥(Mpa) 420
Water Absorption(%) <0.18
Coefficient of linear Expansion(10-6/k) 12
Thermal Conductivity (w/m0k) 0.25
Maximum Operating Temperature(℃) 10-20seconds 360
Standard Operating Temperature(℃) 280
Life Cycles(Times) >16000
Surface Resistivity(Ω) 10^6-10^9
Thermal Capacity(J/kgk) 930
Modulus of Elasticity (Mpa) 20000
Chemical Resistance Excellent
Thickness Available(mm) 3,4,5,6,8,10,12,15,20,25,30
Thickness Tolerance(mm) ±0.1
Parallelism(mm) ±0.1

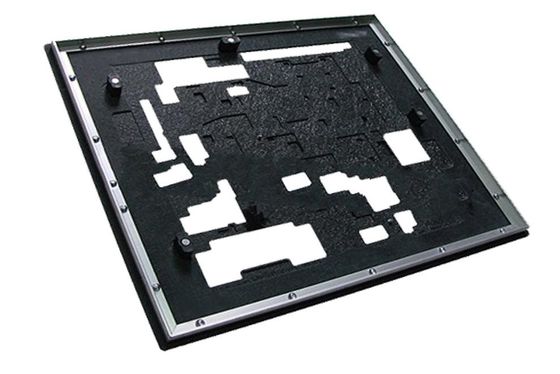

1.9g/Cm3 Wave Soldering Pallet Flux Resistant Reflow Pallet 0

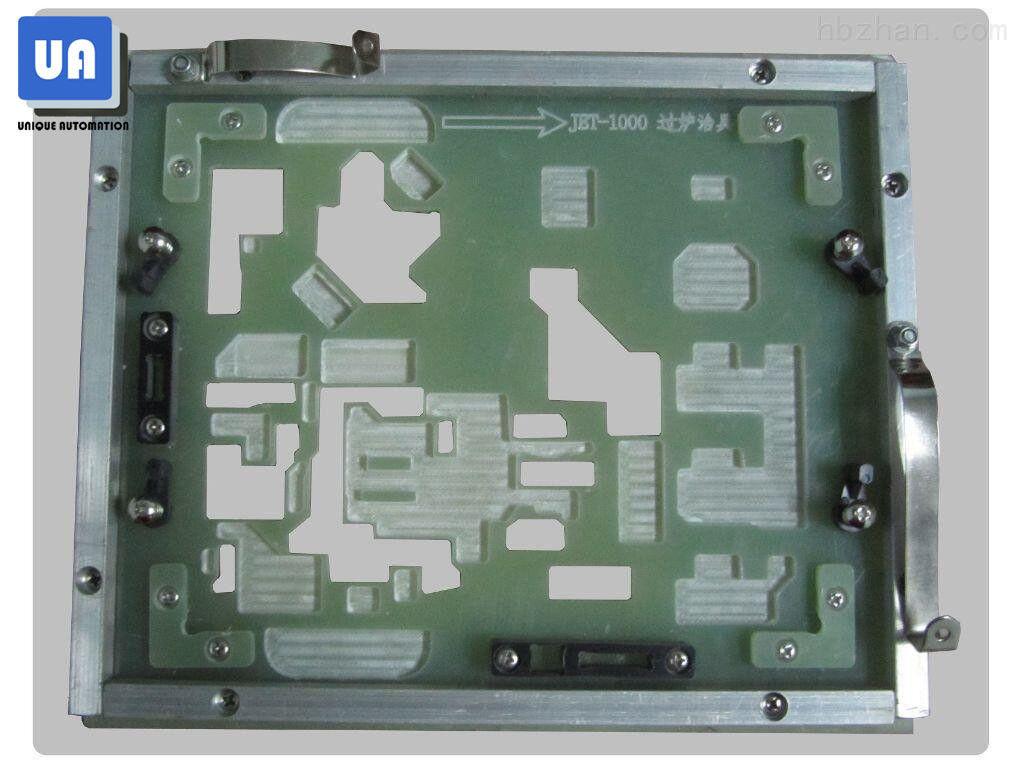

1.9g/Cm3 Wave Soldering Pallet Flux Resistant Reflow Pallet 1

Packing & Delivery

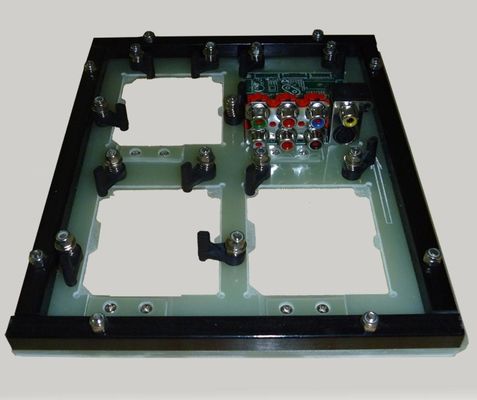

1.9g/Cm3 Wave Soldering Pallet Flux Resistant Reflow Pallet 2
