Product Details:
Payment & Shipping Terms:
|
| Usage: | LED, SMD | Conveyor Height: | 750±20 Mm |
|---|---|---|---|
| Weight (kg): | 80/50/30 | Conveyor Material: | Chain / ESD Belt |
| PCB Width (mm): | 50-400 | Power Supply: | AC 220V 50/60 Hz |
| Power: | 100W | Length (mm): | 1200/1000/500 |
| High Light: | ESD Belt PCB Conveyor,SMT Assembly Machine PCB Conveyor,1200mm Length PCB Shuttle Conveyor |
||
PCB Conveyor
Basic Date of SMT Assembly Machine PCB Conveyor PB-3
| Model | PB-3 |
| Conveyor Height (mm) | 900±30 |
| Weight (kg) | 50 |
| Size | 0.5 M |
| Machine Dimension (mm ) | 500*750*900 |
| PCB Width (mm) | 50-350 |
This unit is used to link between SMD machines or board handling units.
Product instructions of SMT Assembly Machine PCB Conveyor PB-3
1. Modular design, optional assembly as per client’s requirement.
2. Rugged steel design, improves equipment stability .
3. Smooth stainless steel screw to adjust the width of the rail.
4. Variable speed control.
5. Circuit board testing mode.
6. Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7. Heavier bottom design, not easily shift.
8. Machine length can be customized.
9. Compatible with SMEMA interface.

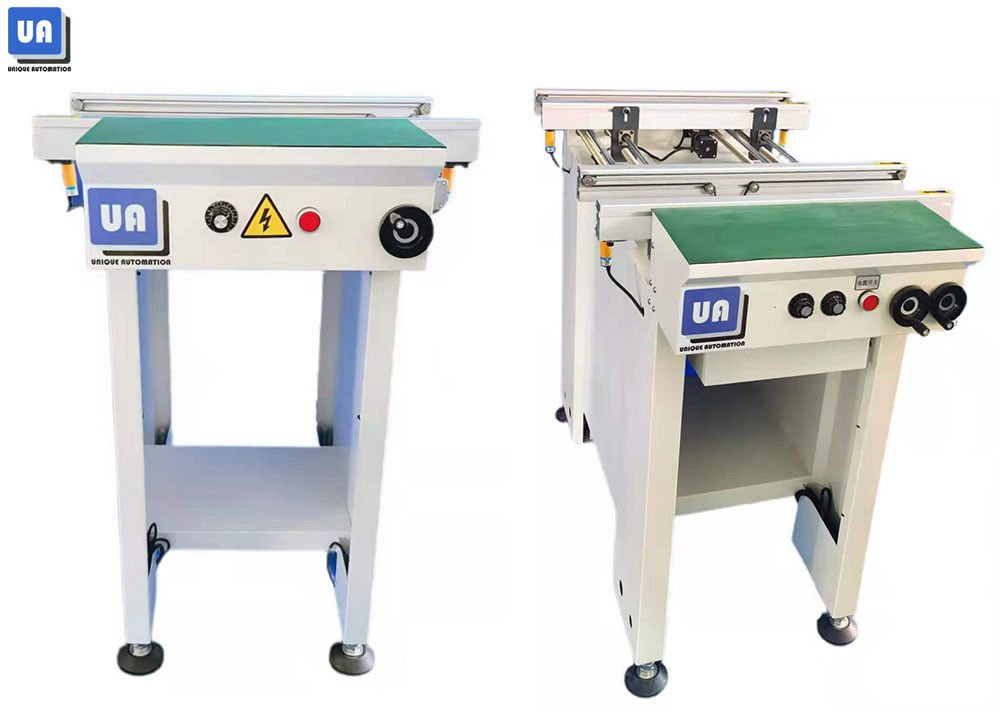

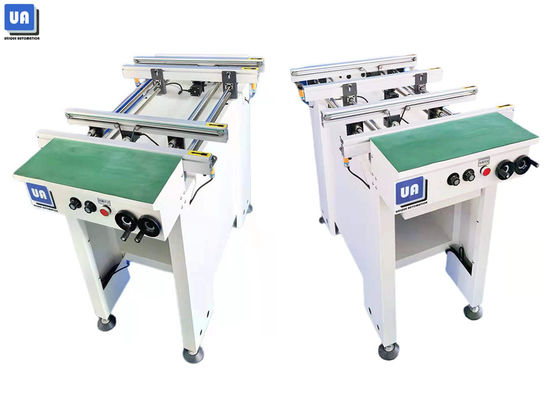

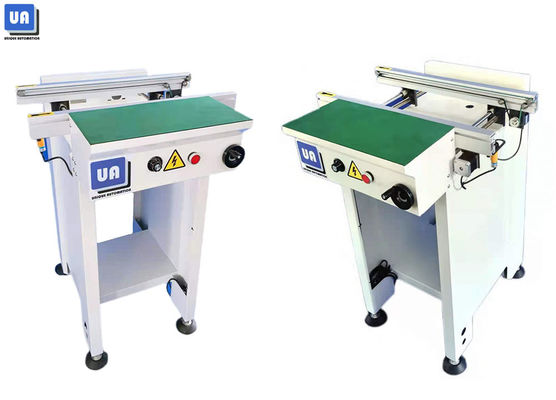

Pictures of PCB Conveyor PB-3
The Packing way of our Machine
We use internal vacuum package and outer wooden packing to protect machine.
