Product Details:
Payment & Shipping Terms:
|
| Product: | PCB Conveyor | PCB Width (mm): | 50-400 |
|---|---|---|---|
| Conveyor Material: | Chain / ESD Belt | Power Supply: | AC 220V 50/60 Hz |
| Power: | 100W | Length (mm): | 1200/1000/500 |
| Weight (kg): | 80/50/30 | Conveyor Height: | 750±20 Mm |
| High Light: | 100W PCB Inspection Conveyor,400mm Width PCB Inspection Conveyor,SMT Assembly PCB Turn Conveyor |
||
Custom PCB Conveyor for SMT Assembly Production Line PB-3 (1M)
Date of PCB Conveyor PB-3 (1M)
| PCB Conveyor | PB-3 ( 1M ) | ||||
| Size | Model | Weight (kg) |
Machine Dimension (mm) |
Conveyor Height (mm) |
PCB Width (mm) |
| 0.5 M | PB-3 | 50 | 500*750*900 | 900±30 | 50-350 |
| 1 M | PB-3 | 80 | 1000*750*900 | 900±30 | 50-350 |
This unit is used to link between SMD machines or board handling units.
Features of PCB Conveyor PB-3 (1M)
1. PLC + LED touch screen control, easy to operate.
2. Different functions available upon request (cooling fan, lighting, dust cover, or worktable)
3. FIFO, LIFO and Pass mode.
4. Smooth and precise width adjustment (lead screw).
5. Fast, smooth and precise search and location.
6. Small footprint.
7. With SMEMA signal.

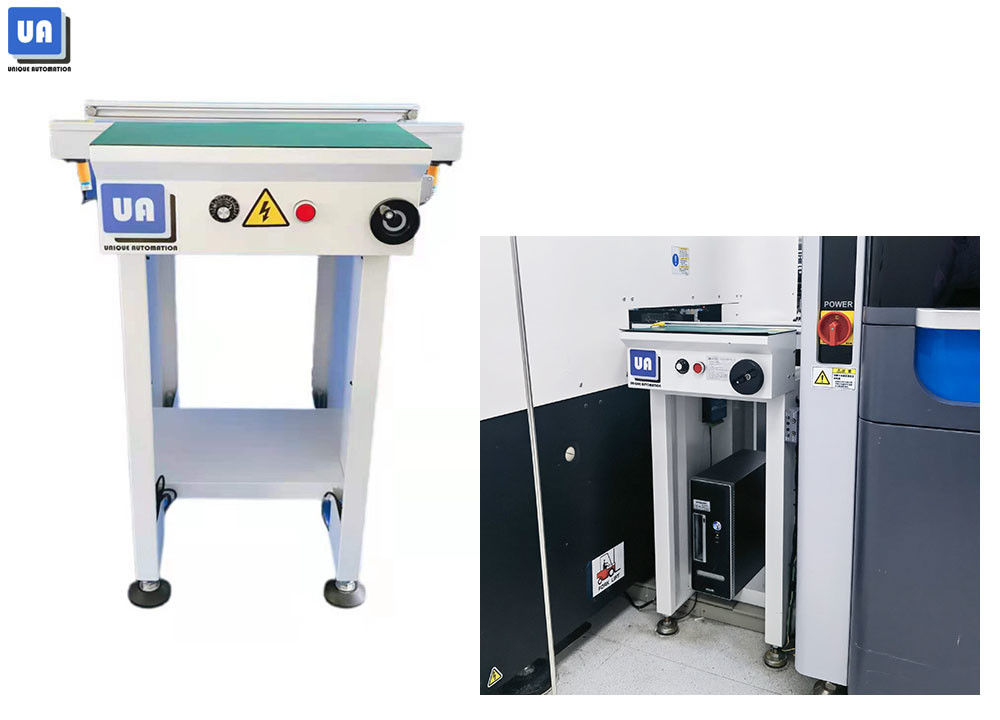

The Picture of of PCB Conveyor PB-3 (1M)
The Packing Method
