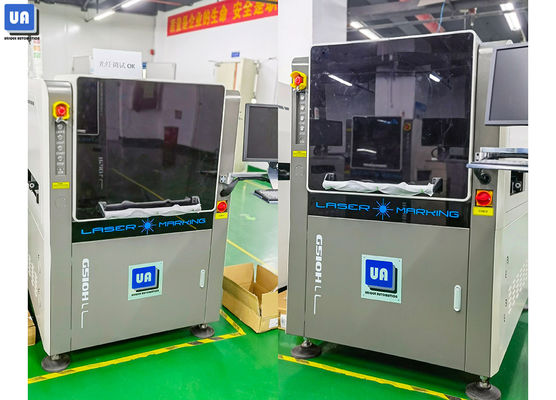

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line
G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line

Large Image :  G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line

Product Details:
Place of Origin: China
Brand Name: UA
Certification: CE
Model Number: G510HLL
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Vacuum package for sea transportation
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 20 units per month
Detailed Product Description
Model: G510LL PCB Size: Min 50mm*50mm Max 510mm*460mm
Code Size: Min : 1.0mm*1.0mm Operating Environment: 5-40C,35%-80%RH
The Machine Size: 1050x1470x1450mm Character Type: True Type,JSF,SHX,DMF
Power Supply: 220V/50Hz 2500W Marking Speed: 6000mm/s
High Light:

Lead Free PCB Laser Marking Machine

,

SMT PCB Laser Marking Machine

,

SMT Industrial Laser Cutting Machine

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line



PCB Laser Marking Machine G510HLL



Paramters
1 Model G510 G650 G800
2 PCB size Min 50mm*50mm
Max 510mm*460mm
Min 50mm*50mm
Max 650mm*650mm
Min 50mm*50mm
Max 800mm*800mm
3 PCB Thickness 0.5mm-10mm
4 Laser Type CO2/Fiber/Green/UV
5 Marking Speed 6000mm/s
6 Repeat Positioning Accuracy ±0.03mm
7 Applicable Product White ink, green ink, blue ink, black ink
8 Power Supply 220V/50Hz 2500W 220V/50Hz 3000W 220V/50Hz 3500W
9 One-Dimensional Code CODE39,CODE25,CODE93,CODE128,EAN-13,ISBN
10 Two-Dimensional Code Datamatrix,QR Code,micro QR Code,PDF417,Code 49,Code 16K
11 Code size Min:1.0mm*1.0mm
12 Character Type True Type,JSF,SHX,DMF
13 Character Height 0.1 - 0.4mm
14 File format supported DXF,PLT,EXCE,TXT
15 Automatic positioning function Support automatic photography
16 Automatic code reading function Automatically read the QR code and save the data, and automatically record and alarm when the data cannot be read
17 Intelligent production function It can be customized to connect with ERP/MES/SAP and other systems, and automatically acquire information such as work order number, product batch number, material code name and specification, and automatically code
18 The machine size 1050x1470x1450mm 1550x2130x1700mm 1650x2200x1700mm
19 The machine weight 800KG 1400KG 1600KG
20 Operating Environment 5-40C,35%-80%RH
21 Air Required 0.5-0.6Mpa
22 Transport Direction LEFT TO RIGHT RIGHT TO LEFT
23 PCB Clamping Able to clamp automatically and customize various clamping
and fixture as needed



Features of Laser Marking Machine


There are two accepted principles:


(1) "Heat processing" has a laser beam with a higher energy density (it is a concentrated energy flow) that irradiates the surface of the material to be processed. The surface of the material absorbs the laser energy and generates a thermal excitation process in the irradiated area, thereby making the surface of the material (or Coating) temperature rises, causing phenomena such as metamorphosis, melting, ablation, and evaporation.


(2) "Cold working" (ultraviolet) photons with very high load energy can break the chemical bonds in the material (especially organic materials) or the surrounding medium to cause the material to undergo non-thermal process damage. This kind of cold processing is of special significance in laser marking processing, because it is not thermal ablation, but cold peeling that does not produce the side effects of "thermal damage" and breaks chemical bonds, so it has no effect on the inner layer and nearby areas of the processed surface. Produce heating or thermal deformation. For example, in the electronics industry, excimer lasers are used to deposit thin films of chemical substances on base materials and to cut narrow grooves on semiconductor substrates.



Application field

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line 0

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line 1

OPTION Internal PCB turnover system

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line 2

OPTION Special double optical paths design

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line 3

OPTION Three-sections rail conveyor

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line 4

OPTION Up&down dual mode laser device

G510LL Lead Free SMT PCB Laser Marking Machine For Assemly Line 5
