SMD Machine NG Belt Buffer Conveyor 6kg/Cm2 For SMT Assembly Line

large.img.alt
large.img.alt
video play

Large Image :  SMD Machine NG Belt Buffer Conveyor 6kg/Cm2 For SMT Assembly Line

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: BL-330
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-20 days
Payment Terms: T/T
Supply Ability: 15 units per month
Detailed Product Description
Stock PCB: 20 Pcs New Weight: About 195 Kg
Operating Mode: FIFO, LIFO, PASS Power Supply: AC 220V 50/60 Hz
Control Mode: PLC + Touch Panel Screen Air Supply: 4-6kg/cm²
PCB Width: 50*50-450*330 Machine Dimension: 550*910*1250 Mm
High Light:

NG Belt Buffer Conveyor

,

SMD Machine Belt Buffer Conveyor

,

6kg/cm2 PCB Inspection Conveyor

SMEMA Compatible SMD Machine NG Belt Buffer Conveyor for SMT Assembly Line

Product Description

Description
The unit is used to as a buffer betweed SMD machine
Features
User Friedly touch panel screen + PLC control
First in first out (FIFO). Last in first out (LIFO) and pass through operating modes
OK board pass through, NG board stock in conveyor, can stock 20 pcs PCB (or customized )
Durable rollers and belts are conveying medium
Fast, smooth and precise indexing (servo motor)
Smooth and parallel width adjustment (leadscrew)
SMEMA compatible



Specification

NG Belt Buffer Conveyor
Size Model Machine Dimension (mm) PCB Dimension (mm) Weight (kg)
M BL-250 450*720*1250 50*50-350*250 150
L BL-330 550*910*1250 50*50-450*330 195
XL BL-460 600*1050*1250 50*50-520*460 210

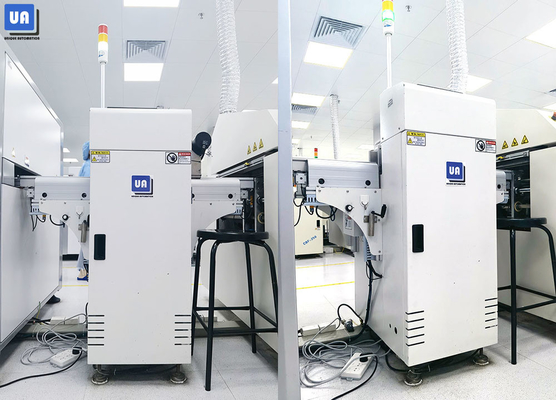

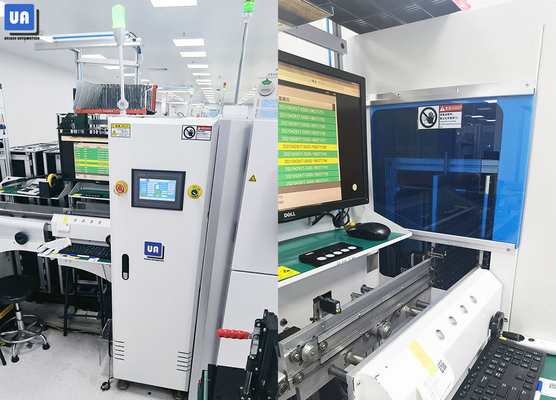

Picture Showing

ng belt buffer conveyor 1

BL-330 PCB Loader Unloader
