Anti Static Synthetic Stone PCB Fixture 20mm 25mm 30mm

Large Image : Anti Static Synthetic Stone PCB Fixture 20mm 25mm 30mm

Product Details:

Place of Origin:	CHINA
Brand Name:	UA
Model Number:	CUSTOMIZED

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Carton Packaging
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	500 pcs per day

Contact Now

Detailed Product Description

Material:	Synthetic Stone/ Durostone	Usage Scale:	Wave Solder Pallet, Reflow Solder Pallet, SMT Pallet, Solder Paste Printing
High Temperature Resistance:	500～800℃	Color:	Black
Thickness:	3-50 Mm	Life Cycles:	>15,000 Times
Size:	As Per Drawings	Supply Ability:	500 Piece/Pieces Per Day
High Light:	Anti static Synthetic Stone PCB Fixture , Anti Static 30mm PCB Fixture , Anti Static 20mm wave solder fixtures

PCB Pallet Synthetic stone Solder pallet PCB Fixture Solder fixture

High Temperature Resistant Wave Solder Pallet For PCB Assembly

Each one of our pallet is custom designed to meet our client's requirements. Just tell us your ideas,our experienced engineers will offer the best solution for you.

Our advantages

-Price: With our own pallet materials and CNC machines, we can provide the most competitive price to our clients.

-Quality: With rich production experience, our pallets have been widely approved by our clients both home and abroad.

The precision can be controled within -/+0.02mm

-Lead time: 3-5 days for samples, 7-10 days for bulk order.

-Professional sales team: Our sales engineer know well about material&machining. You can discuss any engineering issue with us freely.

We can also design pallets as per client's requirement. Below information are necessary for the pallet design.

1.2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets

2.Gerber file of PCB bare board+ Loaded PCB sample(PCB board with electronic components)

Features

Customized various types of PCB pallet for customers
Offer technical support and service during use process
Make the pallet drawing according to GBR file or 3D drawing of PCB
Produce the pallet sample for free, and help customer make testing
Specialized processing equipment and experienced personnel to ensure good quality and short lead timeD

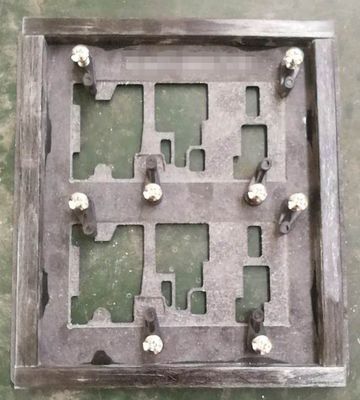

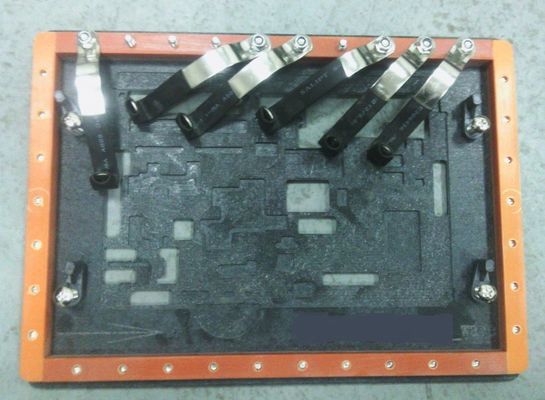

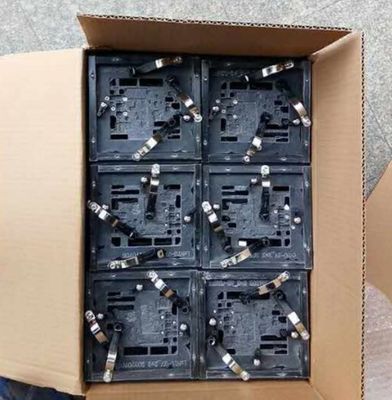

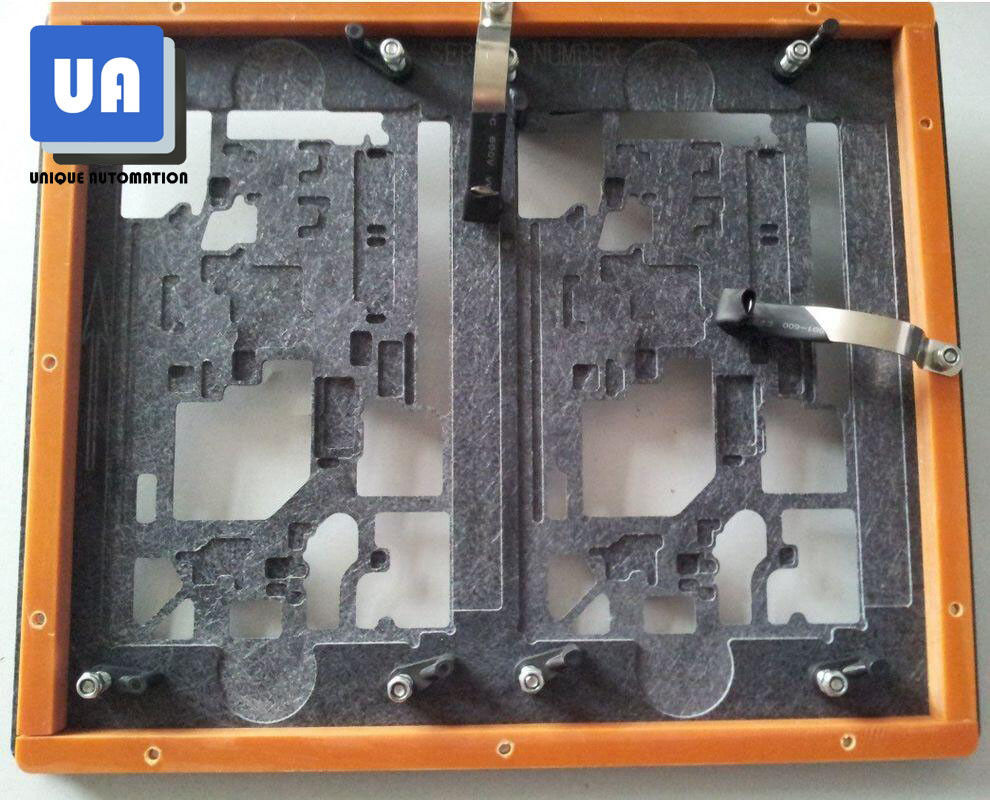

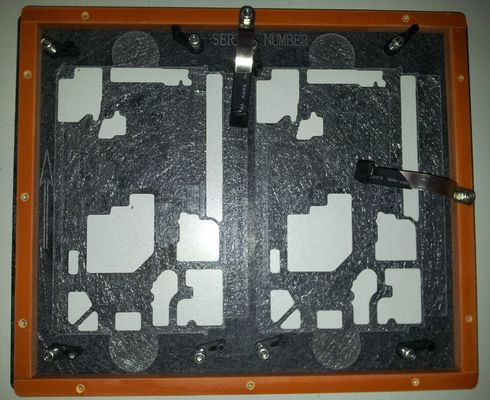

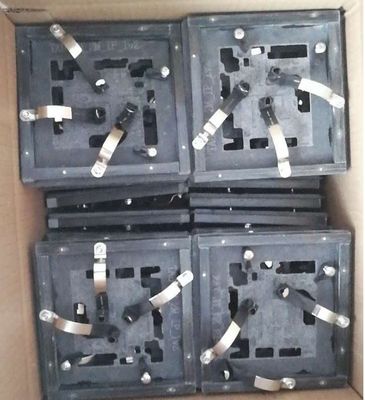

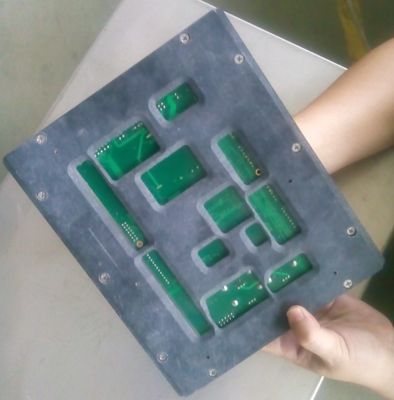

Drawings & Samples:

Anti Static Synthetic Stone PCB Fixture 20mm 25mm 30mm 0

Anti Static Synthetic Stone PCB Fixture 20mm 25mm 30mm 1

Anti Static Synthetic Stone PCB Fixture 20mm 25mm 30mm 2

Anti Static Synthetic Stone PCB Fixture 20mm 25mm 30mm 3
