Product Details:
Payment & Shipping Terms:
|
| PCB Size: | Min 50mm*50mm Max 500mm*460mm | PCB Thickness: | 0.6mm-10mm |
|---|---|---|---|
| Laser Type: | CO2/Fiber/Green/UV | Marking Speed: | 5800mm/s |
| Machine Size: | 1050 X 1480 X 1490 Mm | Machine Weight: | 890 Kg |
| Power Supply: | 200-220V/50Hz 2600W | File Format Supported: | TXT、DXF、PLT、EXCE、 |
| High Light: | 50mm*50mm PCB Laser Etching Machine,6000mm/S PCB Laser Etching Machine,6000mm/S co2 laser marking machine |
||

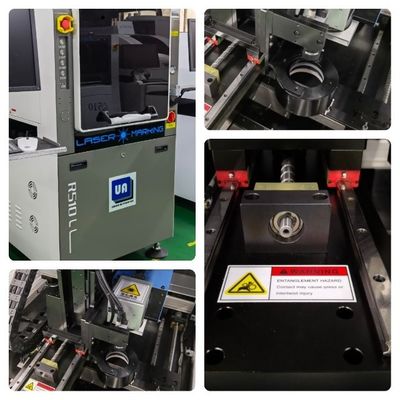

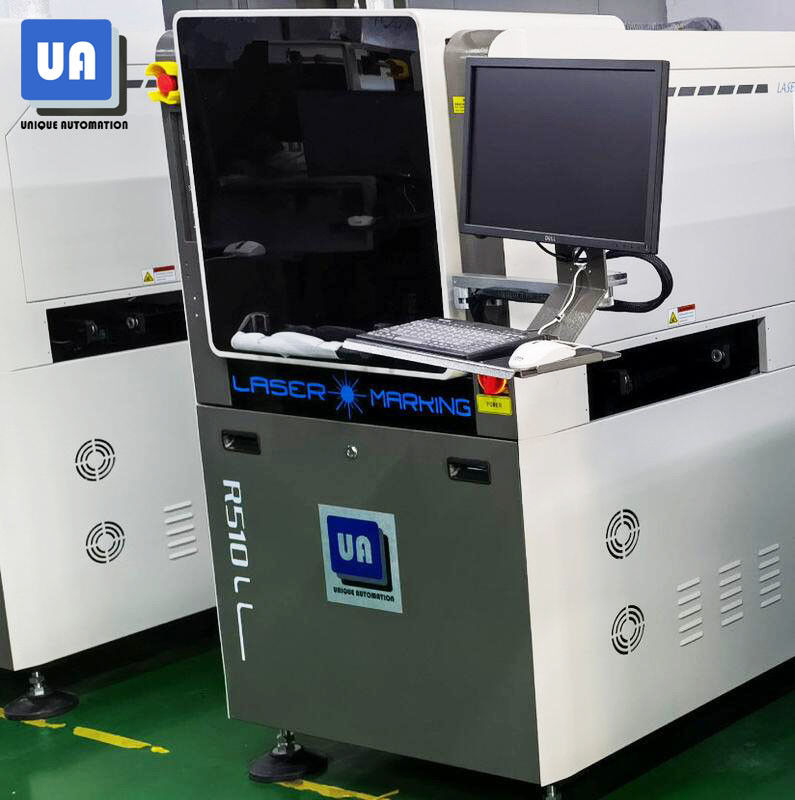

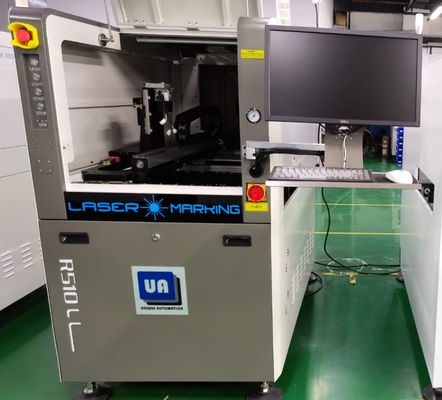

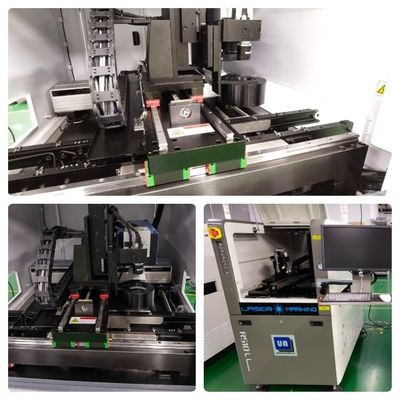

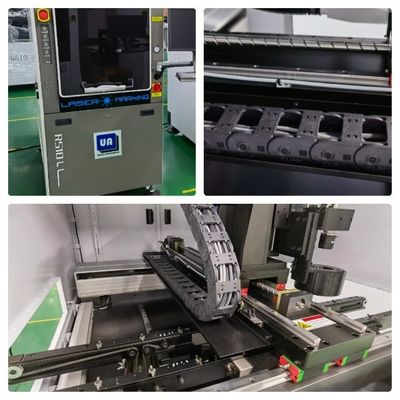

PCB Automatic Laser Marking Machine PCB Laser Marker Coaxial Visual R510
| Paramters | ||||
| 1 | Model | R510 | R650 | R800 |
| 2 | PCB size | Min 50mm*50mm Max 510mm*460mm | Min 50mm*50mm Max 650mm*650mm | Min 50mm*50mm Max 800mm*800mm |
| 3 | PCB Thickness | 0.5mm-10mm | ||
| 4 | Laser Type | CO2/Fiber/Green/UV | ||
| 5 | Marking Speed | 6000mm/s | ||
| 6 | Repeat Positioning Accuracy | +/-0.03mm | ||
| 7 | Applicable Product | White ink, green ink, blue ink, black ink | ||
| 8 | Power Supply | 220V/50Hz 2500W | 220V/50Hz 3000W | 220V/50Hz 3500W |
| 9 | One-Dimensional Code | CODE39,CODE25,CODE93,CODE128,EAN-13,ISBN | ||
| 10 | Two-Dimensional Code | Datamatrix,QR Code,micro QR Code,PDF417,Code 49,Code 16K | ||
| 11 | Code size | Min:1.0mm*1.0mm | ||
| 12 | Character Type | True Type,JSF,SHX,DMF | ||
| 13 | Character Height | 0.1 - 0.4mm | ||
| 14 | File format supported | DXF,PLT,EXCE,TXT | ||
| 15 | Automatic positioning function | Support automatic photography | ||
| 16 | Automatic code reading function | Automatically read the QR code and save the data, and automatically record and alarm when the data cannot be read | ||
| 17 | Intelligent production function | It can be customized to connect with ERP/MES/SAP and other systems, and automatically acquire information such as work order number, product batch number, material code name and specification, and automatically code | ||
| 18 | The machine size | 1050x1470x1450mm | 1550x2130x1700mm | 1650x2200x1700mm |
| 19 | The machine weight | 800KG | 1400KG | 1600KG |
| 20 | Operating Environment | 5-40°C,35%-80%RH | ||
| 21 | Air Required | 0.5-0.6Mpa | ||
| 22 | Transport Direction | LEFT TO RIGHT RIGHT TO LEFT | ||
| 23 | PCB Clamping | Able to clamp automatically and customize various clamping and fixture as needed |
||
| Options | ||||
| 1 | Loader and Unloader | |||
| 2 | Panel turnover machine | |||
| 3 | Dust extraction system | |||
| 4 | Laser code up and down simultaneously | |||
| 5 | Barcode scanner | |||
| 6 | MAS System or MES System | |||
Option Internal PCB turnover system
Option Special double optical paths design
Option Three-sections rail conveyor
Option Up&down dual mode laser device
