VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection

VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection
VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection
video play

Large Image :  VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection

Product Details:
Place of Origin: China
Brand Name: UA
Certification: CE
Model Number: VCTA-S810L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 23000-45000 / unit
Packaging Details: Vacuum package for sea shipment
Delivery Time: 1 weeks
Payment Terms: T/T
Supply Ability: 50 units per week
Detailed Product Description
Camera: Digital 5M Pixel Carema Lens: High-resolution Telecentric Lens
FOV: 48.96mm * 40.96mm Lamp-house: Ring Tower Structure, High Intensity R/G/B/W Flash Lighting
0201 Chip: <7.6 Ms Per-image Time: 220-450 Ms
Components Height: Top ≤30 Mm, Bottom ≤30 Mm Power Supply: AC 220V 50/60 Hz, 1 KW
Operation System: Microsoft Windows 7 64 Programming: Support Offline Programming
MES Support: Standard Port Available Machine Dimension: L105 * W110* H156 Cm
High Light:

Offline programming Automatic Optical Inspection Machine

,

Online AOI Automatic Optical Inspection Machine

,

Windows Operation automated optical inspection pcb

Machine Features:

New interface    New algorithm     Multi-function

Vector analysis algorithm, integrated variety of software algorithms to achieve the best inspection capability

The entire PCB match capability can detect extra parts at any location. Germany imported 5.0mp industry cameras.

The new light source design, effectively eliminate the NG parts.

Offline programming and debugging.

Import control system to ensure high-precision equipment operation. The equipment can communicate directly with the NG BUFFER device and other equipment through the communication protocol.

Central server mode that gathers information from all the test machines to facilitate the integrated management of production,

Multiple machines need only one operator.

Advantages:

The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction(RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc...More than 30 kinds of the most advanced algorithms.





VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection 0

With a high color reproduction, collocation a high-resolution telecentric Lens, high NG identification, provide high-definition image output for the AOI.

VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection 1

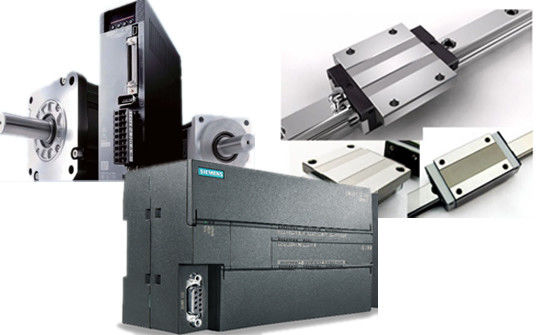

AlI major components are used internationally renowned brands. In the premise of ensuring the stability and accuracy of the movement equipment, with high service life and low failure rate.

VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection 2

The entire PCB match capability can detect extra parts at any location.

The entire PCB match function

High frame rate industrial cameras with telecentric lens, high-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software's entire board matching algorithm, can be used detect extra parts, foreign matter, scratches and other information on the PCB.

VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection 3

Our AOI workshop

VCTA-S810L Automatic Optical Inspection Machine Online AOI For PCB Optical Inspection 4
