|Camera:||Import High-speed 500M Pixel Color Camera||Lens:||20 μm|
|FOV:||48.96mm * 40.96mm||Lamp-house:||Ring Tower Structure, High Intensity R/G/B/W Flash Lighting|
|0201 Chip:||＜7.6 Ms||Per-image Time:||220-450 Ms|
|MES Support:||Standard Port Available||Paste Printing Defects:||Missing, Shift, Skewed, Tombstone, Billboard, Overturned, Reversed Polarity, Damaged|
|Solder Defects:||Overflow, Insufficient, Short Solder, Stain||Wave Soldering Inspect:||Overflow, Insufficient, Short/excess Solder, Solder Void|

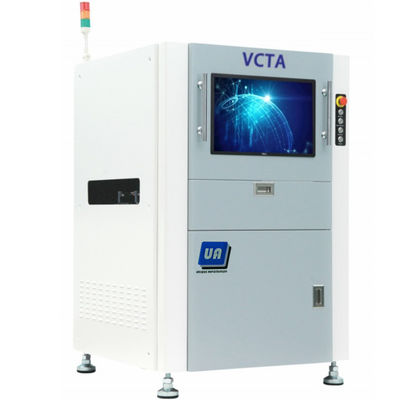

Offline debugging Automatic Optical Inspection Machine,
0201 Chip Automatic Optical Inspection Machine,
Online aoi automated optical inspection
New interface New algorithm Multi-function

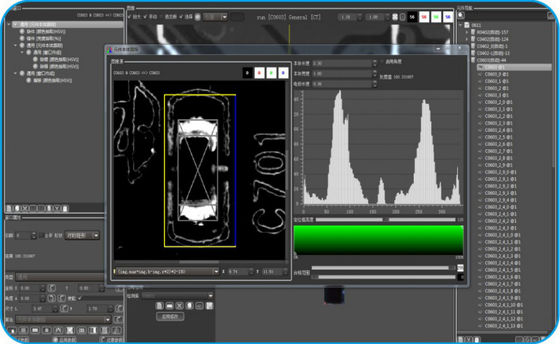

The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction(RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc...More than 30 kinds of the most advanced algorithms.
The entire PCB match capability can detect extra parts at any location.
The entire PCB match function
High frame rate industrial cameras with telecentric lens, high-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software's entire board matching algorithm, can be used detect extra parts, foreign matter, scratches and other information on the PCB.
Import control system to ensure high-precision equipment operation. The equipment can communicate directly with the NG BUFFER device and other equipment through the communication protocol.
Multi machines one operator, intelligent communication
Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator.
