Product Details:
Payment & Shipping Terms:
|
| Magazine Model: | M Size | Magazine Size: | 355*320*565 Mm |
|---|---|---|---|
| Machine Dimension: | 1420*720*1250 Mm | Max PCB Dimension: | 350*250 Mm |
| Power Supply: | AC 220V 50/60 Hz | Compressed Air: | 4-7 Kg/cm² |
| Control Mode: | PLC + Touch Panel Screen | Power: | 100 W |
| Application: | SMT Assembly Production Line | PCB Direction: | L To R, Or R To L |
| High Light: | 350*250mm PCB Magazine Loader,7Kg/Cm² Compressed Air PCB Magazine Loader,350*250mm PCB smt loader |
||

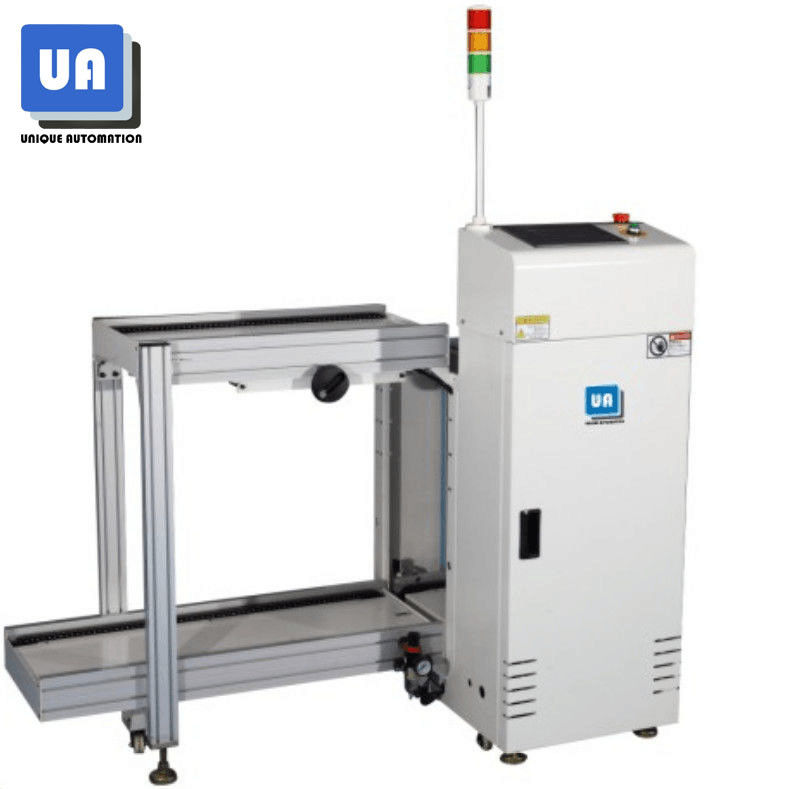

PCB Loader Unloader Magazine Automatic Loader for M Size Magazine
LD-3-250
Description
This unit is used for loading PCBs
Features
1. Strong,firm and stable design.
2. Effective design ensures no PCB breakage guaranty.
3. Aluminum structure, Bottom weight design, not easy to shift.
4. increased load without interference.
5. Minimize clearance between conveyor.
Specifications
| Size | Model | Machine Dimension (mm) | PCB Dimension (mm) | Magazine Size (mm) | Weight (kg) |
| M | LD-3-250 | 1420*720*1250 | 50*50-350*250 | 355*320*563 | 170 |
| L | LD-3-330 | 1500*810*1250 | 50*50-450*330 | 460*400*563 | 210 |
| LL | LD-3-390 | 1785*860*1250 | 50*50-520*390 | 535*460*565 | 240 |
| XL | LD-3-460 | 1785*930*1250 | 50*50-520*460 | 535*530*565 | 260 |
Services
1. Quick response within 24 hours;
2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3. Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
4. Good and professional after-sales service.
