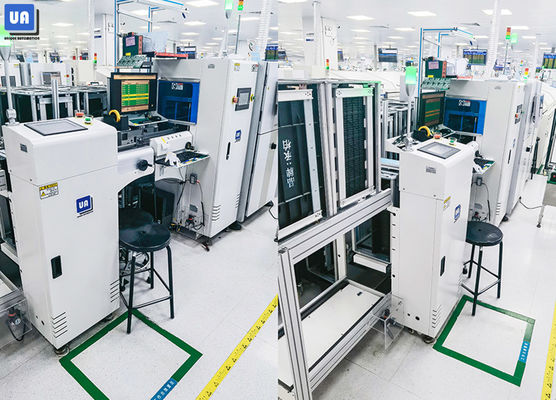

Magazine PCB Loader Machine SMEMA Interface SMT Machine Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Magazine PCB Loader Machine SMEMA Interface SMT Machine Equipment

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: UL-3-250
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 50 units per month
Detailed Product Description
Magazine Model: M Magazine Size (mm): 355*320*563
Weight (kg): 190 PCB Dimension: 50*50-350*250
Model: UL-3-250 Machine Dimension: 2130*720*1250
Direction: L-R /R-L Air Supply: 4-6 MPa
Product Name: PCB Unloader Machine Key Word: PCB Loader Unloader
High Light:

Magazine PCB Loader Machine

,

SMEMA Interface PCB Loader Machine

,

Loader Unloader SMT Machine Equipment

Magazine PCB Loader Machine SMEMA Interface SMT Machine Equipment



PCB Loader Magazine Unloader SMT Machine Equipment PCB Loader Machine



Description

This unit is used for unloading PCBs



Features
1. Suitable for single-sided or double-sided PCB use
2. Special aluminum profile guide rail and special plastic chain
3. 0.7M long guide rail for pushing PCB
4. Driven by 90W Taiwan-made brake motor, using ball screw to step up and down the material frame
5. Transmission motor adopts 15W fixed speed Taiwan-made motor
6. Pneumatic clamping structure
7. Mitsubishi PLC control
8. The position of the putter cylinder is adjusted by the screw rod
9. True color touch screen
10. Compatible SMEMA interface
11. A set of electric control box
12. Different models can be selected according to PCB size.
13. Double rails are available



Specifications

Size M L LL XL
Model UL-3-250 UL-3-330 UL-3-390 UL-3-460
Machine Dimension (mm) 2130*720*1250 2230*810*1250 2600*860*1250 2600*930*1250
PCB Dimension (mm) 50*50-350*250 50*50-450*330 50*50-520*390 50*50-520*460
Magazine Size (mm) 355*320*563 460*400*563 535*460*565 535*520*565
Weight (kg) 190 230 270 300



How to package the machine

packing method

ready to ship
