Product Details:
Payment & Shipping Terms:
|
| Magazine Model: | M | Magazine Size (mm): | 355*320*565 Mm |
|---|---|---|---|
| Machine Dimension: | 1900（L）*845（W）*1250（H）mm | PCB Size: | Max:350（L）*250（W）(mm) |
| Power Supply: | AC220 V 50/60 Hz | Power: | 150 W |
| Compressed Air: | 4-6Kg/cm² | Control Mode: | PLC+ Touch Panel Screen |
| PCB Direction: | L To R Or R To L | Communication: | SMEMA For Both In & Out |
| High Light: | 150W PCB vacuum suction loader,150W Vacuum PCB Loader Unloader,355*320*563 Magazine PCB Loader Unloader |
||

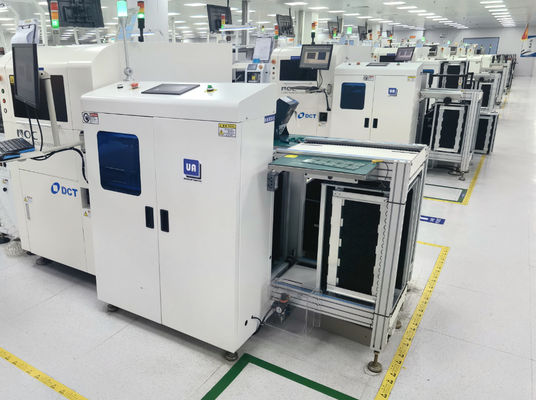

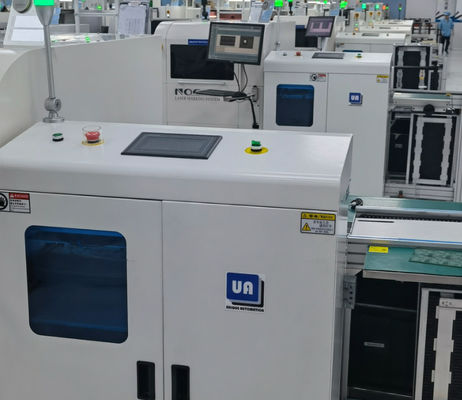

Pcb Loader Unloader Vacuum Loader Suction Loader
VL-250
Description
This unit is used for loading PCBs to the production line.
2 functions available: vacuum suction loader for bare board loading
and magazine loader for loading PCB in magazine rack.
This machine can select loading or vacuum sucking mode according to different PCB
(loading mode when there is components on the reverse side of PCB / sucking mode when there is no components),
which can meet production process and improve production efficiency
Features
1.Strong,firm and stable design.
2.'soft touch' LED control panel or touch screen can be selected.
3.Top＆bottom pneumatic clamps to secure magazine rack.
4.No PCB breakage guaranty because of special gas circuit design.
5.Effective design ensures no PCB breakage guaranty.
6.Vacuum Loader and pallet conveyor compatible.
7.Adjust the position of the nozzle to ensure the circuit boards is clamped.
8.Vacuum and magazine are feed into the board at the same machine, integrated machine.
9.Compatible SMEMA interface.
10. Can stock maximum 400 pcs of bare board (0.8mm)
Specifications
| Size | Model | Machine Dimension (mm) | PCB Dimension (mm) | Magazine Size (mm) | Weight (kg) |
| M | VL-250 | 1900*840*1250 | 50*50-350*250 | 355*320*563 | 220 |
| L | VL-330 | 2100*1010*1250 | 50*50-450*330 | 460*400*563 | 260 |
| LL | VL-390 | 2450*1100*1250 | 50*50-520*390 | 535*460*565 | 300 |
| XL | VL-460 | 2450*1170*1250 | 50*50-520*460 | 535*530*565 | 330 |
FAQ
1.Are you a trade company or a manufacturer?
=>Both OEM & ODM service are available.
2.When is your delivery date?
=>The delivery date is about 35 days after receipt of payment.
3.What is your payment terms?
=>It's 50% deposit in advance and 50% balance before shipment.
4.Who is your main customers?
=>There are Huawei,Foxconn,HP,DELL,BYD,Vishay,Bosch,Nikon etc.
