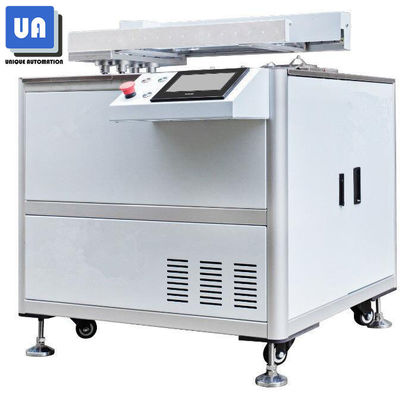

Selective Soldering Machine Selective Spray & Soldering All-In-One Machine
FS-250
Due to increasing product changes in electronics production, it is necessary to use selective soldering, instead of traditional wave solder machine.
FS250 Selective spray and soldering system,new technology and modular design match the highest demands on flexibility, for a revolutionary level of flexibility and highest soldering quality.
|
|
Parameter |
|
|---|---|---|
|
Size |
880L*1040W*960H (mm) |
|
|
Machine frame and cover |
Aluminium extruded sections frame + Door |
|
|
Operating height |
900±20mm |
|
|
Weight |
Approx.250KG |
|
|
Power supply |
220V 50/60HZ |
|
|
Total power |
6KW |
|
|
PCB parameter |
||
|
PCB size |
Max:350(L)*250(W)(mm) |
|
|
Top component height |
Max180mm |
|
|
Bottom component height |
Max30mm |
|
|
PCB Weight |
Max5Kg |
|
|
PCB Process Edge |
＞3mm |
|
|
Selective spray system |
||
|
Spray movement mode |
PCB movement in XYZ axis |
|
|
Spray flux volume |
130ml |
|
|
Spray flux add mode |
Manual |
|
|
Spray nozzle type |
Needle |
|
|
Spray cycle time |
1 Sec/ soldered dot |
|
|
Spray movement precision |
0.05mm |
|
|
Spray flow control |
pressure gage + flow valve |
|
|
Selective Soldering System |
||
|
Welding movement mode |
PCB movement in XYZ axis |
|
|
Movement mode |
Step motor + linear rail |
|
|
Solder feeding mode |
Manual( Option: auto) |
|
|
Solder capacity |
16KG |
|
|
Solder melting time |
20min |
|
|
Solder power |
3KW |
|
|
Solder nozzle size |
Standard D8mm, other sizes is option |
|
|
Solder cycle time |
5 Sec/ soldered dot |
|
|
Temperature control mode |
PID+SSR |
|
|
Temperature setting range |
Max400OC |
|
|
Temperature accuracy |
±2OC |
|
|
Wave height |
Max 5mm |
|
|
Welding precision |
0.1mm |
|
|
Solder dross |
0.2Kg/8H(Not N2 protection)；0.01Kg/8H( N2 protection) |
|
|
N2 protection system |
||
|
N2 protection mode |
Nozzle and solder pot |
|
|
N2 consumption |
2M3/h |
|
|
N2 flow control |
Digital flow control |
|
|
Exhaust system |
||
|
Top cover exhaust |
Customer supply |
|
|
Exhaust quantity |
1 PCS |
|
|
Exhaust volume |
About 5m³/h |
|
|
Control system |
||
|
Control mode |
Touch screen + PLC |
|
|
PCB Process parameter |
Setting, save , open in the touch screen |
|
|
Buzzer |
Prompt sound from the buzzer |
|
|
Other |
PCB counting, message, alarm can be read in the touch screen |
|
|
Option |
||
|
Welding real-time monitoring |
||
|
Sweep gun |
||
Machine Dimension & Drawing
