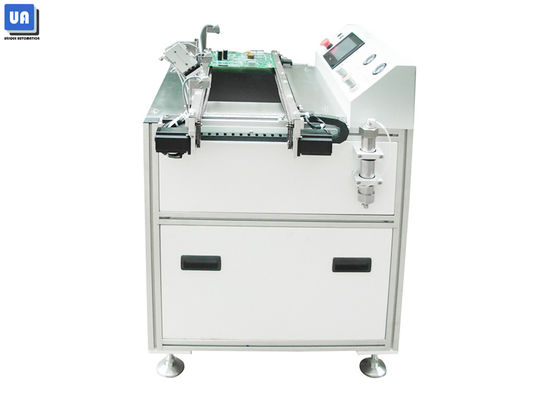

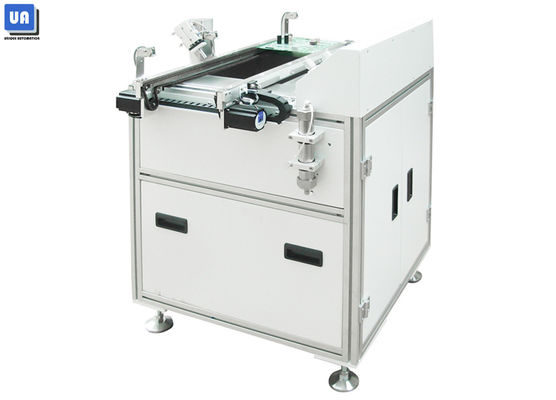

Lead Free SAF 250 selective soldering equipment For SMT Assembly Line

small.img.alt small.img.alt small.img.alt

Large Image :  Lead Free SAF 250 selective soldering equipment For SMT Assembly Line

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: SAF-250
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-20 days
Payment Terms: T/T
Supply Ability: 15 units per month
Detailed Product Description
PCB Process Parameters: Set, Save And Call On The Touch Screen Working Height: 900±20mm
Total Power: 200W Weight: Approx.150kg
Power: 1φ220V 50/60HZ Buzzer: The Buzzer Indicates That The Job Is Complete
Dimension: 900L*900W*950H (mm) Control Method: Touch Screen + PLC
High Light:

SAF 250 Selective Soldering Equipment


200W Selective Soldering Equipment


SAF 250 Select Solder Machine

Lead Free SAF 250 Selective Soldering Equipment For SMT Assembly Line
SAF-250 Lead Free Selective Sprayer Machine for SMT Assembly Line
Features of Selective Soldering Machine
1) Flux can be sprayed arbitrarily according to the size of the PCB board area to be sprayed---Selective

2) Can be arbitrarily positioned at any position on the PCB board to spray flux - -Positionability
3) Do not restrict the position and direction to spray flux-one-flexibility
4) The x_Y area coordinate position parameter is designed to be millimeters to achieve the required spraying flux position---Accuracy
5) Computer interface operation, select the area according to the carrier picture to carry out the flux spraying--Simplicity
6) Required spray Reduced flux area---Environmental protection and energy saving
7) More flux can be sprayed for the location --- pertinence
8) Existing external flux sprayer equipment can be used for internal modification and use-fishing.
9) Selective spot spray and full spray mode switch---Compatibility
10) Automatic switching between single board spot spraying and mixed board spot spraying-Convenience
Specification of Selective Sprayer Machine SAF-250

Size900L*900W*950H (mm)
Machine frame and coverAluminium extruded sections frame + Door
Operating height900±20mm
Power supply1φ220V 50/60HZ
Total power200W
PCB parameter
PCB sizeMax:330(L)*250(W)(mm)
Top component heightMax150mm
Bottom component heightMax15mm
PCB WeightMax10Kg
PCB Process Edge>3mm
Spray movement modeServo motor + linear rail
Spray flux volume130ml
Spray cycle time1 Sec/ soldered dot
Spray movement precision0.05mm
Conveyor system
Conveyor methodAdopt rail + stainless chain
Stopper quantity1 PCS
Exhaust volumeAbout 5m³/h

System of Selective Soldering Machine
Control System
The hardware is controlled by the original Omron high-speed motion PLC+7-inch touch screen; the software is designed and produced by senior experts from Omron.
Stable and reliable, simple and convenient to operate, get rid of the shortcomings of computer control viruses, crashes, and energy consumption.

exercise system
The hardware adopts HIWIN ball type linear high-speed guide rail, which is stable and reliable in operation, corrosion-resistant, long service life, and convenient for maintenance and repair; the motor adopts Panasonic AS servo control, which has high operating accuracy and sensitive response.

Spraying device
The nozzle movement adopts the traditional single-axis back and forth movement, and the needle valve switch of the nozzle is controlled by PLC to assist the welding area.

Flux selectivity
Coating, what has changed is a control method of spraying.
The nozzle adopts the original Japanese Lumina nozzle, and the liquid control air pressure and spray = pressure are independently controlled, which makes it easier to achieve the ideal spraying effect, and can quickly control the outflow of the spray liquid at the nozzle outlet, avoiding the waste of flux and the phenomenon of backflow air.

Pictures of Selective Soldering Machine

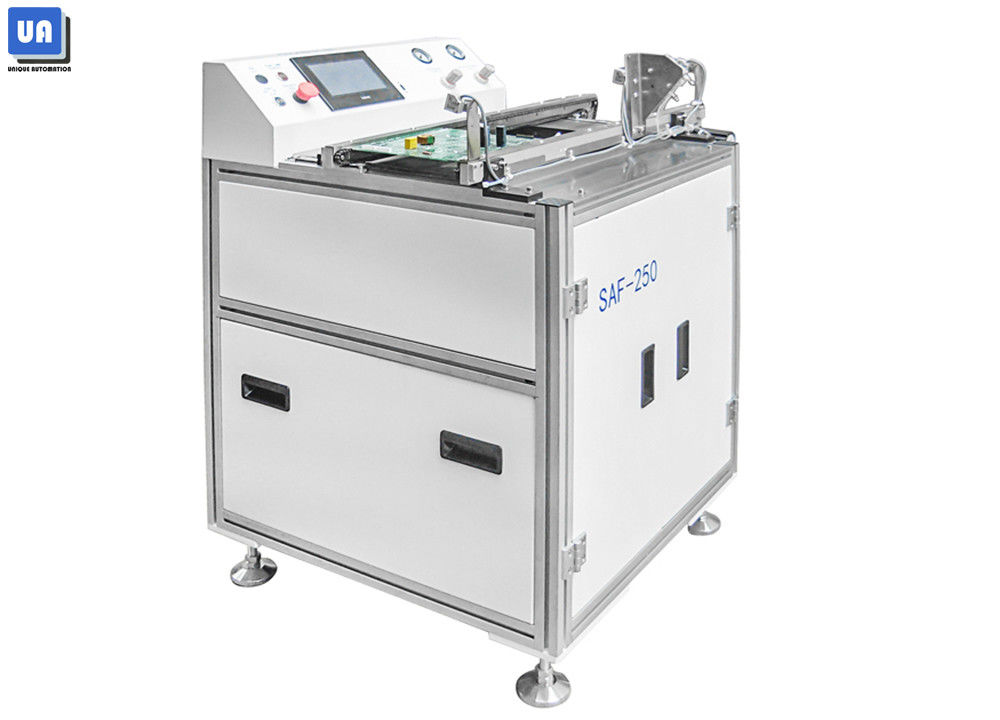

Lead Free SAF 250 selective soldering equipment For SMT Assembly Line 0
