Product Details:
Payment & Shipping Terms:
|
| Weight: | 1660 Kg | Control: | PLC + Temp. Control Meter |
|---|---|---|---|
| Preheater: | Ceramic IR Heating Pipe | Solder Pot Capacity (kg): | About 410kg |
| Transmission Way: | Air Cylinder | Flux Feeding: | Auto Feed |
| Type Of Inger: | V, L Or Customized | Machine Dimension: | 4200*1450*1700 Mm |
| Length Of Preheating Zone: | 2100 Mm | Conveyor Width Adjust: | Electric Control |
| High Light: | CE SMT Reflow Soldering Machine,350mm PCB Reflow Soldering Machine,350mm PCB Reflow Soldering Machine |
||

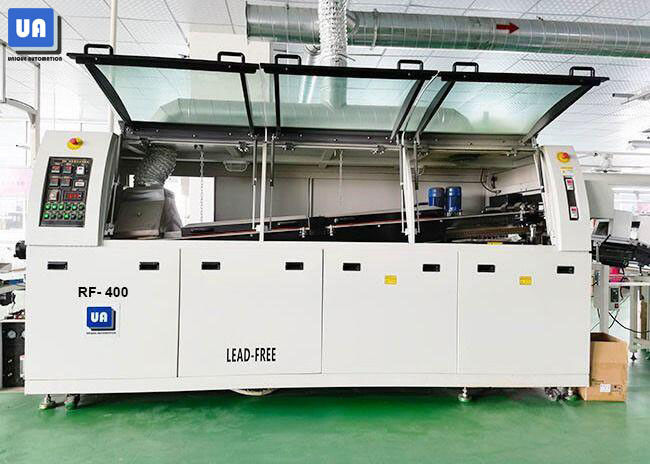

SMT Wave Welding Machine for Production Line RF-400A Wave Solder
Features
1.Totally design for Lead Free process.
2. PLC control and temperature control meter.
3. The preheating zones using the high efficiency IR ceramic heaters (option : Hot air convection )
to achieve strong and stable heating results.
4. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
5. Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
6. Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
7. Automatic claw cleaning function ensure the cleanliness of claws.
8. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
9. Lead-free solder furnace with independent design, environmental protection and safety, easy to clean.
10. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
11. With balck box memory function, the machine can always store the production management records, improve work efficiency.
12. Automatic claw cleaning function ensure the cleanliness of claws.
13. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
Specifications
| Model | RF-400A |
| Spraying System | |
| Transmission Method | Air cylinder |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Exhaust Capacity | 25M3/min |
| Preheating System | |
| Preheating Model | IR tube Option : Hot Air Convection |
| No. of Preheating Zones | 3 |
| Preheating Length | 2100 MM |
| Preheating Temp. | Room Temperature : ~300C |
| Warm Time | Approx. 20/min |
| Conveyor System | |
| PCB Width ( L x W ) | 350 MM |
| Conveyor Direction | Optional |
| Conveyor Height | 750 MM |
| Componet Clearance (mm ) | 130 MM |
| Conveyor Width Adjustment | Manual |
| Conveyor Angle | 4 ~ 6 C |

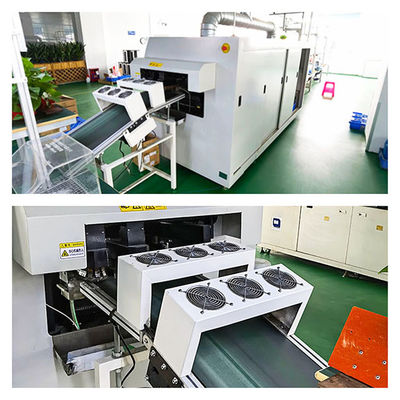

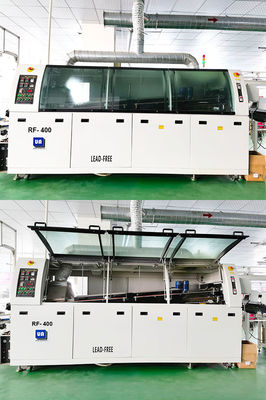

Pictures Showing
Installation Drawing
Package and Shipping
