| Name Of Product: | RF-3S Wave Soldering Machine | Wave Solder Dimension: | 3400*1100*1650 （L*W*H ) |
|---|---|---|---|
| Preheat Length: | 1150 MM | Warm Time: | Approx. 20/min |
| Conveyor Height: | 750 MM | Conveyor Angle: | 4 ~ 6 C |
| Heater Power: | 12KW | Solder Pot Capacity: | 320 KG |
| High Light: | 12KW SMT Reflow Soldering Machine,750mm Conveyor SMT Reflow Soldering Machine,Throttle Valve SMT Wave Soldering Machine |
||
Mini RF 3S SMT Reflow Soldering Machine
Small Wave Welding Machine Lead Free SMT Machine Wave Soldering for Production Line
The Specification of Reflow Oven equipment RF-3S
1. Totally lead free design.
2. Japan made Mitsubishi PLC Control.
3. Synchronous insert plate structure Japan made conveyor power equipped steady transportation.
4. Shaped stream line design, flexible operation, convenient to be cleaned and maintained.
5. Preheated by high efficient stainless steel heating pipe, good heat compensation and high stability.
6. Low oxidation anti-erosion alloyed tin furnace, energy saving design of spraying nozzle fulfill lead free request absolutely.
7. External casting heating board of tin furnace with high efficiency.
8. Acoustic and optical warning and emergency brake system.
The parameter of Mini wave solder RF-3S machine
| Commom | |
| Power | AC 3Ф380V 50HZ/AC 3Ф220V 60HZ |
| Operation/ Startup Power | 6/28KW |
| Dimension: L*W*H ( mm ) | 3400*1100*1650 |
| Weight | About 1000KG |
| Operating System | |
| Control Mode | PLC + Control Meter |
| Spraying System | |
| Transmission Method | Air Cylinder |
| Flux Flow | Throttle Valve |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Exhaust Capacity | 25M3/min |
| Preheating System | |
| Preheating Model | IR Tube |
| No. of Preheating Zones | 1 |
| Preheating Length | 1150 MM |
| Preheating Temp. | Room Temperature : ~300C |
| Warm Time | Approx. 20/min |
| Conveyor System | |
| PCB Width ( L x W ) | 300 MM |
| Conveyor Direction | Optional |
| Conveyor Height | 750 MM |
| Componet Clearance (mm ) | 130 MM |
| Conveyor Width Adjustment | Manual |
| Conveyor Angle | 4 ~ 6 C |
| Soldering System | |
| Type of Solder Pot | Motor Drive |
| Material of Solder Pot | Stainless Steel |
| Wave Height Adjustment | Manual |
| Heater Power | 12 KW |
| Solder Pot Capacity | 320 KG |
| Warm-up Time | Approx. 180min |
| Temperature Control Mode | Thermostat |

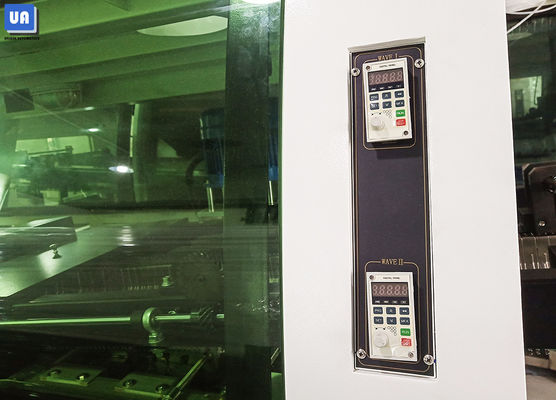

Wave Soldering Machine RF-3S ( Picture Showing )
Function of wave soldering machine RF-3S
1. Adopt industrial special computer and GUXIN/Mitsubishi PLC control (optional Siemens module), stable and reliable performance
2. Multiple protection functions (protection against over temperature, emergency stop, overload, short circuit, missing flux, etc.)
3. The wave soldering operation software is easy to operate, powerful, fully numerical parameter setting, can save various PCB production prescription files, software box function.
