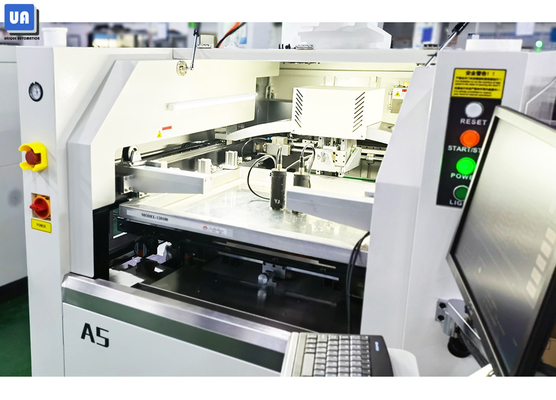

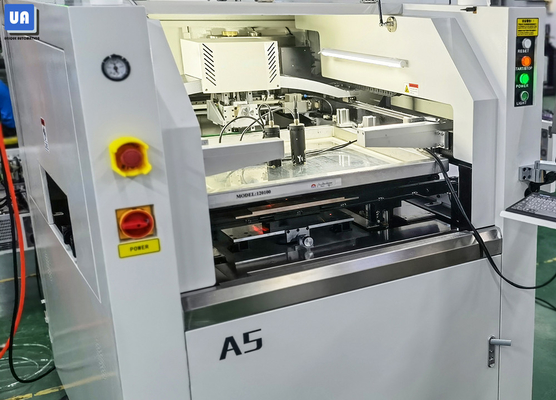

PC Control Lead Free SMT Solder Paste Printer For DIP Assembly Line

large.img.alt
large.img.alt
video play

Large Image :  PC Control Lead Free SMT Solder Paste Printer For DIP Assembly Line

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: A5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 25 Units per month
Detailed Product Description
PCB Thickness: 0.5-5mm Transport Height: 900±30 Mm
Printing Accuracy: ±0.025mm Cycle Time: < 9s
Product Changeover: <4min Control Method: PC Control
Machine Weight: About 980kg CCD FOV: 8*6 Mm
Product Name: Solder Paste Pinter Feature: Solder Paste Screen Printer Lead Free
High Light:

SMT Solder Paste Printer

,

PC Control Solder Paste Printer

,

SMT Solder Paste Printing Machine

50*50mm Lead Free SMT Automatic Solder Paste Printer for DIP Assembly Line


The Basic Date of Solder Paste Printer A5

Solder Paste PrinterA5
Screen FramesMin Size : 370*370 mm
Max Size : 737*737 mm
Thickness : 25-40 mm
PCB Min Size50*50 mm
PCB Max Size400*340 mm
PCB Thickness0.4-6 mm
PCB Warpage< 1%
Transport Height900±40 mm
Transport DirectionOptional
Transport SpeedMax 1500mm/S programmable
Board Location PCBSupport System : Magnetic Pin/Up-dowm Table
Adjusted / Supportblock by Hand
Clamping System : Side Clamping, Vacuum Nozzle
Print headTwo Independent Motorised Printheads
Squeegee Speed6-200 mm/sec
Squeegee Pressure0-15kg
Squeegee TypeStainless Steel ( Strandard ), Plastic
stencil Separation Speed0.1-20 mm/sec Progammable
Cleaning SystemDry, Wet, Vaccum ( Programmable )
Table Adjustment RangesX: ±10mm; Y:±10mm
CCD FOV8*6 mm
Solder Paste Inspection2D Inspection Standard
Machine
Repeat Posistion Accuracy± 0.01mm
Printing Accuracy± 0.025mm
Cycle Time<7s ( Exclude Printing & Cleaning )
Product Changeover<5Min
Air Required4.5 ~ 6 kg /cm2
Power InputAC : 220±10%, 50/60HZ 3kw
Control MethodPC Control
Machine Dimension1220*1375*1500mm ( L*W*H )
Machine Weightabout 1000kg

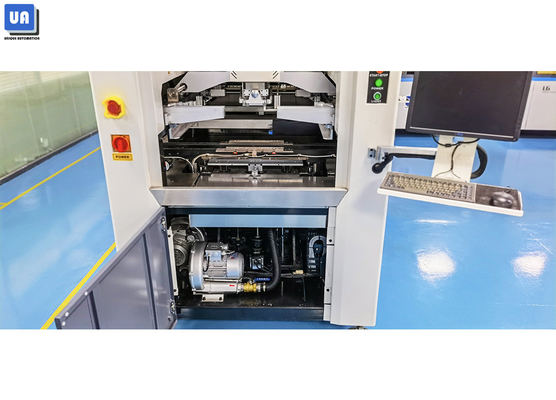

Cleaning system of Solder Paste Printer A5
Stencil cleaning system is automatic and effective. Three options of Dry cleaning, Wet cleaning and Vacuum cleaning can be selected to use, both individually and multiply. And you can also choose to clean manually.The unit to clean is separated from CCD camera,which can minimize the load of motor and impulse, improve the positioning precision and speed and extend the service life .Sprinkler system ensures spraying evenly, from top to bottom.The software function can control the dosage of alcohol and stencil cleaning paper, Effectively save more consumables.Vacuum cleaning is supported with a dedicated fan, powerful and effective.

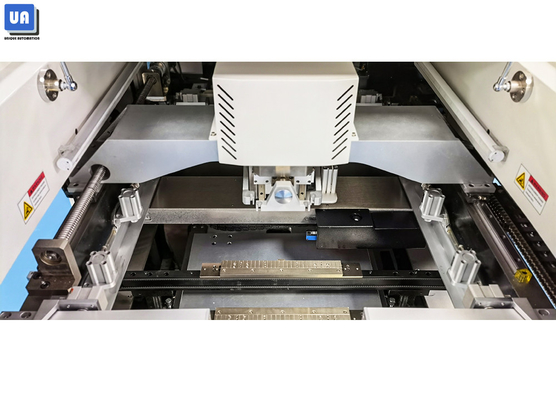

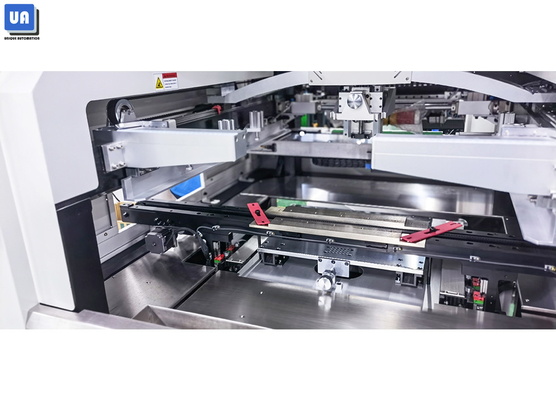

Scraper system of Solder Paste Printer A5
Arch bridge type suspending direct- connected scraper side clamp and PCB support vacuum block hold PCB tightly and ensure the Print head with the programmable and suspending self-adjusting stepper motor drive.full even contact between PCB and stencil.
Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth. Two sets of separate scraper heads are driven respectively by two high precision stepper motors, ensuring the accuracy and stability of the pressure. The closed l0 pressure control system can accurately detect and control the squeegee pressure during real-time production.

Operation Interface of Solder Paste Printer A5
Using Windows XP operation interface,and easy to learn for user, with good man-machine interactive function. Programming is designed with teaching and navigation function, guidance is available on every step. Chinese/English selective Operating Journal/Breakdown Record/Breakdown Diagnosis

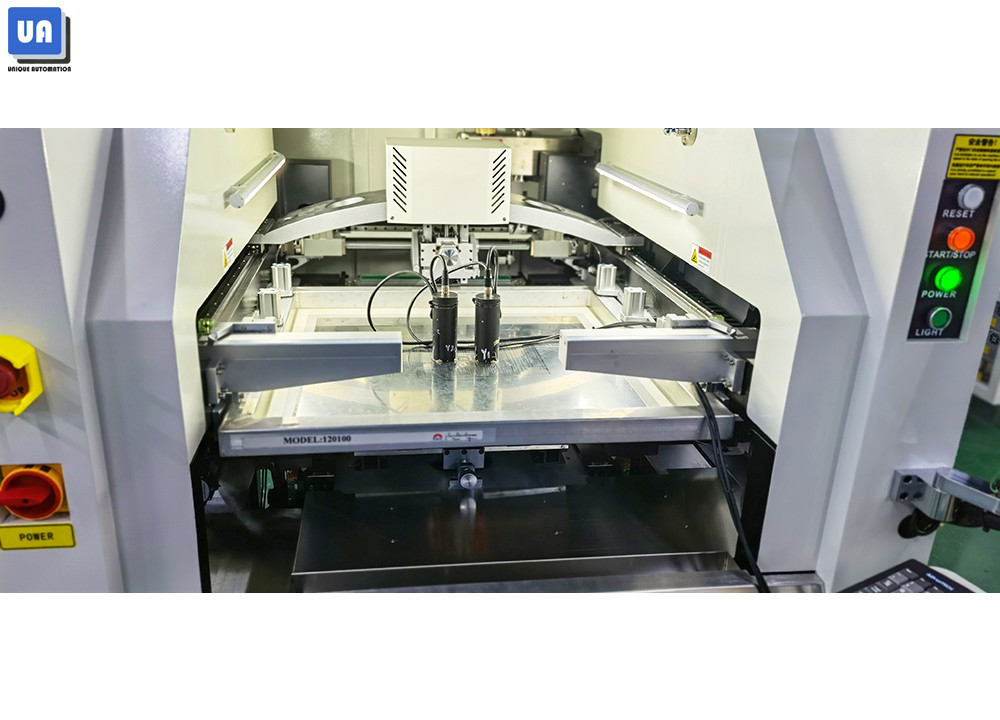

Image And Optical System of Solder Paste Printer A5
Uniform ring light, high brightness coaxial light and advanced upper lower vision system Full range of light compensation, Automatic and accurate recognized of all type MARK points. Applicable for tin plating, copper plating, gold plating, tin spraying,FPC and other types PCB with different colors, able to ensure high accuracy.
Assembly workshop
PC Control Lead Free SMT Solder Paste Printer For DIP Assembly Line 0
PC Control Lead Free SMT Solder Paste Printer For DIP Assembly Line 1

Testing before delivery
PC Control Lead Free SMT Solder Paste Printer For DIP Assembly Line 2
PC Control Lead Free SMT Solder Paste Printer For DIP Assembly Line 3

Shipping
