| Name: | Selective Soldering Machine | Working Height: | 900±20mm |
|---|---|---|---|
| Total Power: | 200W | Weight: | Approx.150kg |
| Power: | 1φ220V 50/60HZ | Buzzer: | The Buzzer Indicates That The Job Is Complete |
| Control Method: | Touch Screen + PLC | ||
| High Light: | 200W Selective Soldering Machine,Lead Free Selective Soldering Machine,200W selective wave soldering machine |
||
200W Lead Free Selective Soldering Machine For SMT Assembly Line
Features
1) Flux can be sprayed arbitrarily according to the size of the PCB board area to be sprayed---Selective
2) Can be arbitrarily positioned at any position on the PCB board to spray flux - -Positionability
3) Do not restrict the position and direction to spray flux-one-flexibility
4) The x_Y area coordinate position parameter is designed to be millimeters to achieve the required spraying flux position---Accuracy
5) Computer interface operation, select the area according to the carrier picture to carry out the flux spraying--Simplicity
6) Required spray Reduced flux area---Environmental protection and energy saving
7) More flux can be sprayed for the location --- pertinence
Specification
| Size | 900L*900W*950H (mm) |
| Machine frame and cover | Aluminium extruded sections frame + Door |
| Operating height | 900±20mm |
| Weight | Approx.150kg |
| Power supply | 1φ220V 50/60HZ |
| Total power | 200W |
| PCB parameter | |
| PCB size | Max:330(L)*250(W)(mm) |
| Top component height | Max150mm |
| Bottom component height | Max15mm |
| PCB Weight | Max10Kg |
| PCB Process Edge | ＞3mm |
| Spray movement mode | Servo motor + linear rail |
| Spray flux volume | 130ml |
| Spray cycle time | 1 Sec/ soldered dot |
| Spray movement precision | 0.05mm |
| Conveyor system | |
| Conveyor method | Adopt rail + stainless chain |
| Stopper quantity | 1 PCS |
| Exhaust volume | About 5m³/h |
System
Control System
The hardware is controlled by the original Omron high-speed motion PLC+7-inch touch screen; the software is designed and produced by senior experts from Omron.
Stable and reliable, simple and convenient to operate, get rid of the shortcomings of computer control viruses, crashes, and energy consumption.
exercise system
The hardware adopts HIWIN ball type linear high-speed guide rail, which is stable and reliable in operation, corrosion-resistant, long service life, and convenient for maintenance and repair; the motor adopts Panasonic AS servo control, which has high operating accuracy and sensitive response.

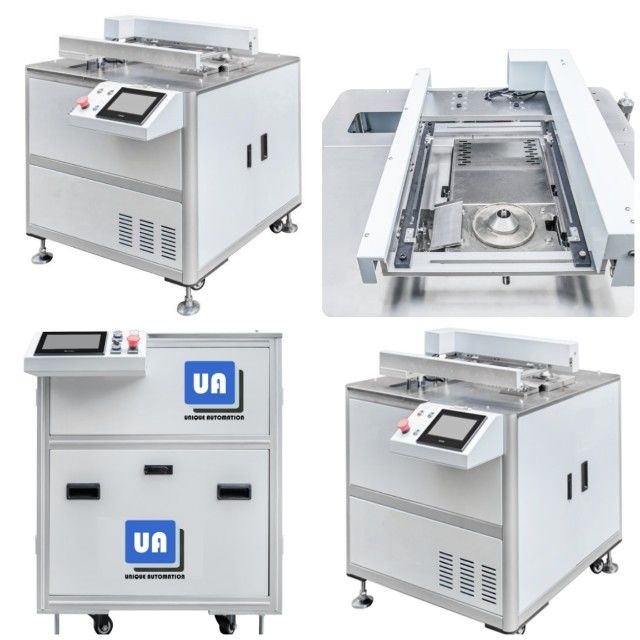

Pictures of Selective Soldering Machine
