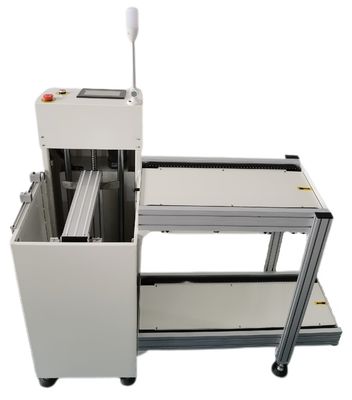

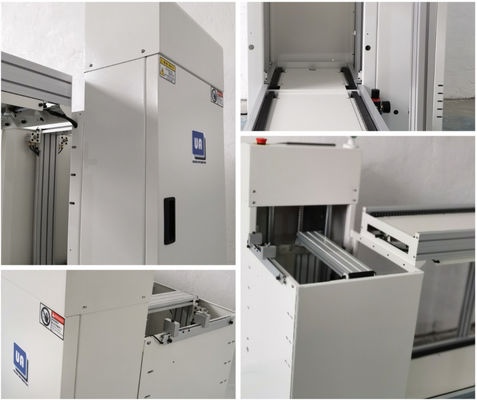

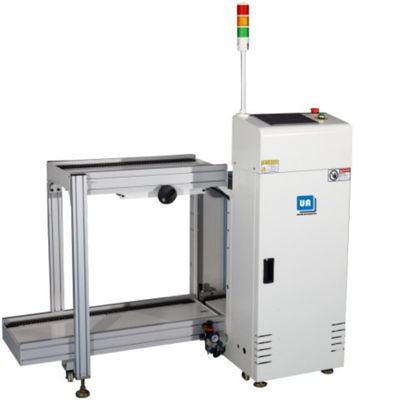

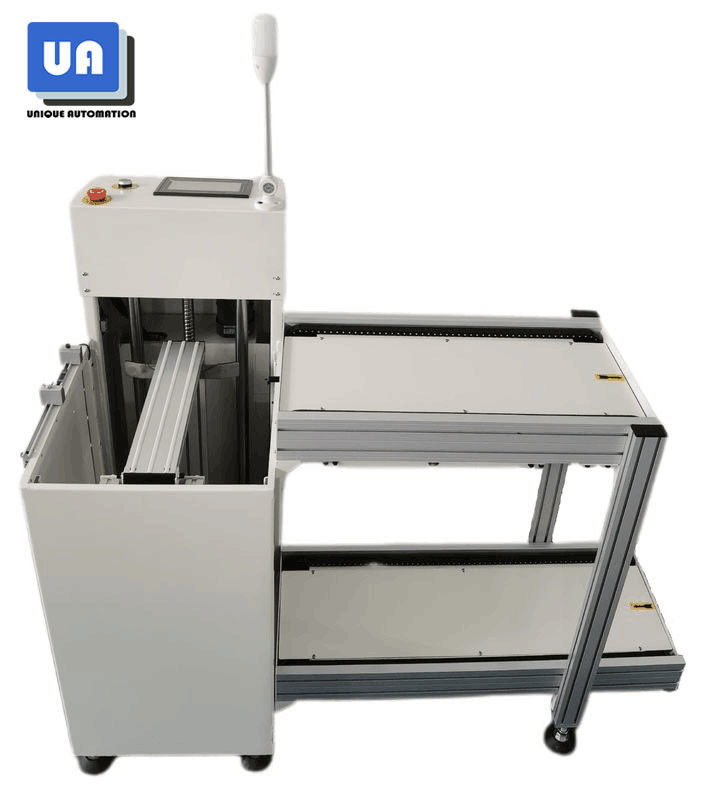

L Size Magazine Automatic Loader 100W SMEMA Compatible

L Size Magazine Automatic Loader 100W SMEMA Compatible
L Size Magazine Automatic Loader 100W SMEMA Compatible
video play

Large Image :  L Size Magazine Automatic Loader 100W SMEMA Compatible

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: LD-3-330
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: vacuum packing for sea transportation
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 50 units per month
Contact Now
Detailed Product Description
Magazine Model: L Magazine Size (mm): 460*400*563
Machine Dimension (mm): 1500*810*1250 PCB Dimension (mm): 50*50-450*330
Power Supply: AC 220V 50/60 Hz Compressed Air: 4-6 Kg/cm²
Control Mode: PLC + Touch Panel Screen Power: 100 W
High Light:

L Size Magazine Automatic Loader

,

SMEMA compatible Automatic Loader

,

L Size Magazine SMT Loader

PCB Loader Unloader Magazine Automatic Loader for L Size Magazine

LD-3-330



Description

This unit is used for loading PCBs



Features

  • Sturdy and stable design
  • User friendly touch panel screen + PLC control
  • Pneumatic clamps provided for magazine alignment
  • Pneumatic pusher’s pressure regulated
  • High throughput with short magazine change-over time
  • SMEMA compatible

Specifications



Size Model Machine Dimension (mm) PCB Dimension (mm) Magazine Size (mm) Weight (kg)
M LD-3-250 1420*720*1250 50*50-350*250 355*320*563 170
L LD-3-330 1500*810*1250 50*50-450*330 460*400*563 210
LL LD-3-390 1785*860*1250 50*50-520*390 535*460*565 240
XL LD-3-460 1785*930*1250 50*50-520*460 535*530*565 260

Tag:

M Size Magazine PCB Loader Unloader,

355*320*563 Magazine PCB Loader Unloader,

150W Vacuum PCB Loader Unloader
