Product Details:
Payment & Shipping Terms:
|
| Magazine Model: | LL | Magazine Size (mm): | 535*460*565 |
|---|---|---|---|
| Machine Dimension (mm): | 1785*860*1250 | PCB Dimension (mm): | 50*50-520*390 |
| Power Supply: | AC 220V 50/60 Hz | Compressed Air: | 4-6 Kg/cm² |
| Control Mode: | PLC + Touch Panel Screen | Power: | 100 W |
| High Light: | LL Magazine PCB Loader Machine,1785*860*1250 PCB Loader Machine,LL Magazine PCB Unloader Machine |
||

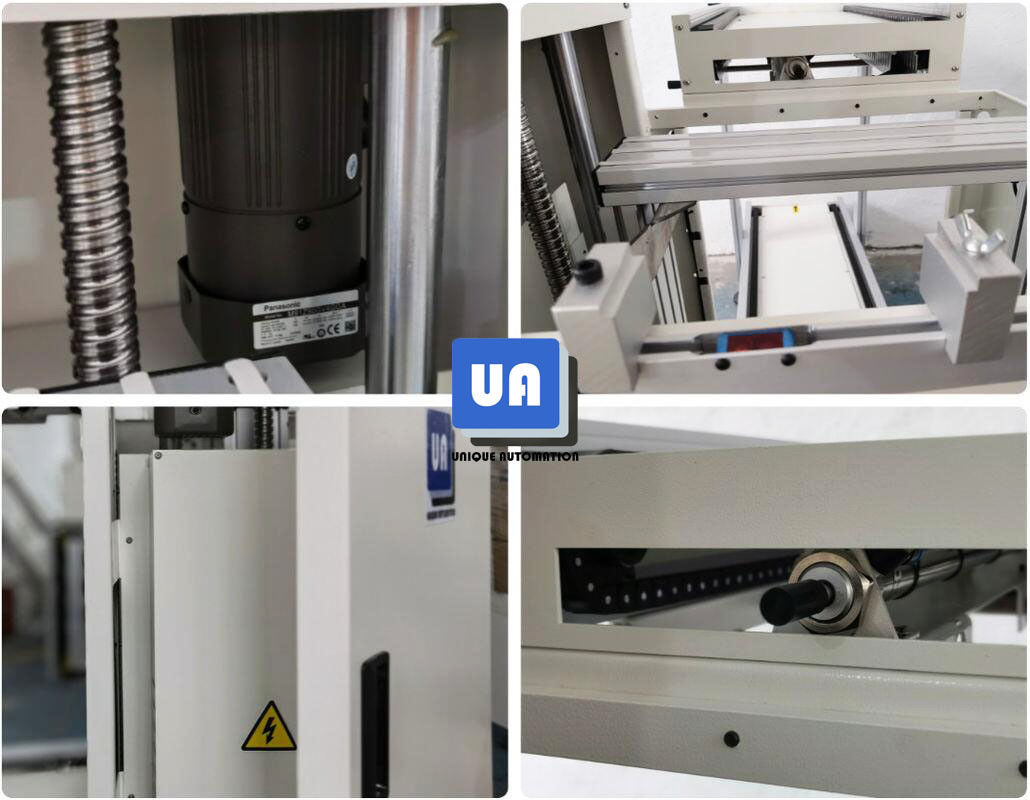

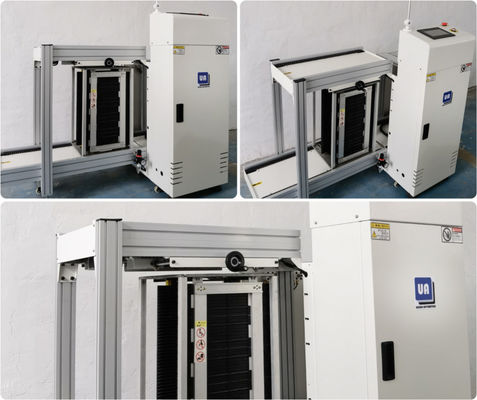

PCB Loader Unloader
PCB magazine loader for SMT reflow soldering
Description
This unit is used for loading PCBs
it is very easy operating, can save the labor and improve the accuracy.
Features
1. Touch screen controlled component,easy to operate and convenient man-machine interaction.
2. Multiple sound and light alarming functions
3. Pneumatic PCB clamping structure
4. Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
5. Loader configured with inner push board component, save the cost of buying PCB moving machine independently.
6. Optional SMEMA port for communication between machines.
Specifications
| Size | LL |
| Model | LD-3-390 |
| Machine Dimension | 1785*860*1250 mm |
| PCB Dimension | 50*50-520*390 mm |
| Mgazine Size | 535*460*565 mm |
| Weight | 240 KG |
Package and Shippment
Package
Packing way: internal vacuum packing and outer wooden packing.
Shipping
1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.
3. Other method as you customized.
