Product Details:
Payment & Shipping Terms:
|
| Magazine Model: | LL | Magazine Size (mm): | 535*460*565 |
|---|---|---|---|
| Machine Dimension (mm): | 1785*860*1250 | PCB Dimension (mm): | 50*50-520*390 |
| Power Supply: | AC 220V 50/60 Hz | Compressed Air: | 4-6 Kg/cm² |
| Control Mode: | PLC + Touch Panel Screen | Weight: | 240 |
| Usage: | SMT PCB Assembly Production Line | PCB Direction: | L To R Or R To L |
PCB Loader Unloader
PCB Handing Equipment PCB Handers Loader Unloader ( LD-3-390 )
Description
This unit is used for loading PCBs
Features
1. Strong,firm and stable design.
2. 'soft touch' LED control panel or touch screen can be selected.
3. Top&bottom pneumatic clamps to secure magazine rack.
4. No PCB breakage guaranty because of special gas circuit design.
5. Automatical diagnosing fault code display function.
6. Wear-resistant cable and have long service life.
7. Compatible SMEMA interface.
Specifications
| Size | Model | Machine Dimension (mm) | PCB Dimension (mm) | Magazine Size (mm) | Weight (kg) |
| M | LD-3-250 | 1420*720*1250 | 50*50-350*250 | 355*320*563 | 170 |
| L | LD-3-330 | 1500*810*1250 | 50*50-450*330 | 460*400*563 | 210 |
| LL | LD-3-390 | 1785*860*1250 | 50*50-520*390 | 535*460*565 | 240 |
| XL | LD-3-460 | 1785*930*1250 | 50*50-520*460 | 535*530*565 | 260 |

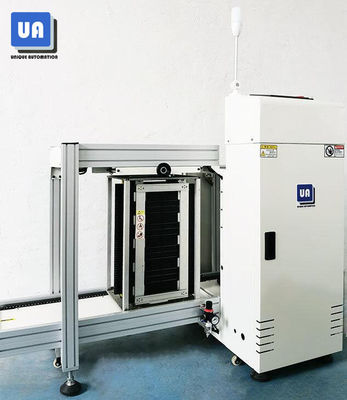

Product Picture
Company Profile
Unique Automation (referred to as "UA") is a High-speed developing enterprise of High Precision
SMT Equipment manufacturer, which specializes in automation equipment for electronics industry.
Unique Automation (UA) was founded in 2010 with headquarter in Shenzhen and its manufacturing facilities
of more than 5,000 square meters.With over 11 years’ experience in design and manufacturing of SMT
equipment, UA is one of the most professional solution providers in the SMT equipment market.
We specialized in wave soldering machine, reflow oven, SMT automatic vision paste printer, SMT laser
marking machine, conveyors, PCB/PCBA loader & unloader, THT production lines, fixtures/pallets, SMT
consumables and etc, and has exported these cost effective and high quality equipment to more than
30 countries in Europe, America, Middle-east, Southeast Asia, and Africa. We will spare no effort in providing
SMT equipment to our customers with the aim of “Quality First, Customer Priority” as we have been
doing for the last 11 years.
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : What is your payment terms?
T/T, L/C, etc
Q3: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer wooden packing.
Or according to your requirement.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the payment.
Q5:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange the free training for you.
Q6 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before delivery.
`
Q7: Why choose UA ?
Experienced in design and manufacturing of SMT equipment, UA is one of the most professional
solution providers in the SMT equipment market.
Packge and Shipping
1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.
3. By truck. Fast transportation and low cost.
4. Other method as you customized.
