Product Details:
Payment & Shipping Terms:
|
| Magazine Model: | LL | Magazine Size (mm): | 535*460*563 Mm |
|---|---|---|---|
| Machine Dimension: | 2450（L）*1100（W）*1250（H）mm | PCB Size: | Max：520（L）*390（W）(mm) |
| Power Supply: | AC 220V 50/60 Hz | Power: | 150W |
| Compressed Air: | 4-6Kg/cm² | Control Mode: | PLC+ Touch Panel Screen |
| High Light: | Vacuum Suction PCB Loader Unloader,300KG PCB Loader Unloader,AC220V 50HZ SMT Loader Unloader |
||

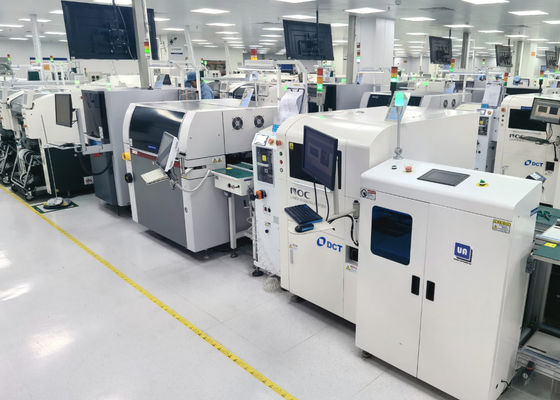

Pcb Loader Unloader Vacuum Loader Suction Loader
VL-390
Description
This unit is used for loading PCBs to the production line.
2 functions available: vacuum suction loader for bare board loading
and magazine loader for loading PCB in magazine rack.
This machine can select loading or vacuum sucking mode according to different PCB
(loading mode when there is components on the reverse side of PCB / sucking mode when there is no components),
which can meet production process and improve production efficiency
Features
· User friendly touch panel screen + PLC control
· One machine multipurpose, saves the cost and space
· Smooth and parallel width adjustment (leadscrew)
· SMEMA compatible
· Can stock maximum 400 pcs of bare board (0.8mm)
Specifications
| Size | Model | Machine Dimension (mm) | PCB Dimension (mm) | Magazine Size (mm) | Weight (kg) |
| M | VL-250 | 1900*840*1250 | 50*50-350*250 | 355*320*563 | 220 |
| L | VL-330 | 2100*1010*1250 | 50*50-450*330 | 460*400*563 | 260 |
| LL | VL-390 | 2450*1100*1250 | 50*50-520*390 | 535*460*565 | 300 |
| XL | VL-460 | 2450*1170*1250 | 50*50-520*460 | 535*530*565 | 330 |
