Transmission Method: | Step Motor | No. Of Preheating Zones: | 3 |
---|---|---|---|
Preheating Length: | 1800MM | Preheating Temp: | Room Temperature ~300C |
Exhaust Method: | Upper Exhaust | Control Mode: | PLC + Computer |
Flux Flow: | Flux Flow Meter | Warm-up Time: | Approx. 180min ( Setting At 250C ) |
High Light: | PCB Lead Free Wave Soldering Machine,PLC Wave Soldering Machine,PLC Wave Soldering Equipment |
PCB Lead Free Wave Soldering Machine For Welding SMT Line RF 350B
PCB Lead-Free Wave Soldering Equipment for Welding SMT Line RF-350B
Specification Date of RF-350B Wave Soldering Machine
Mode | RF-350B |
Solder Pot Type | Motor Drive |
Warm-up Time | Approx. 180min ( Setting at 250C) |
Flux Flow | Flux Flow Meter |
Wave Height Adjustment | Manual |
Control Mode | PLC + Computer |
Spraying Pressure | 0.25MPa ~ 0.4MPa |
Exhaust Method | Upper Exhaust |
Solder Pot Capacity | About 400Kg |
Preheating Temp | Room Temperature ~300C |
Preheating Length | 1800MM |
Warm-up Time | Approx. 20/Min |
Transmission Methos | Step Motor |
No. of Preheating Zones | 3 |
Product Description
1. closed loop with inverter control system to keep the stability and accuracy of speed managed.
2. the maximum transprot capacity of tje guide rail reaches 60kg meeting the demanding production demand.
3. both of the solder wave is driving by inverter to obtained energy save by independent driver control and board sensor when pcb entering.
4. Special nozzle: design for high-density pcb board.
5. Panel spray regulate system. It Can effectively regulate spray frequency: Spray flow rate and atomization statu, and real-time monitor and adjust.
6. Double rail structure can effectively improve production efficiency, save energy consumption and production costs.
Installation Drawing

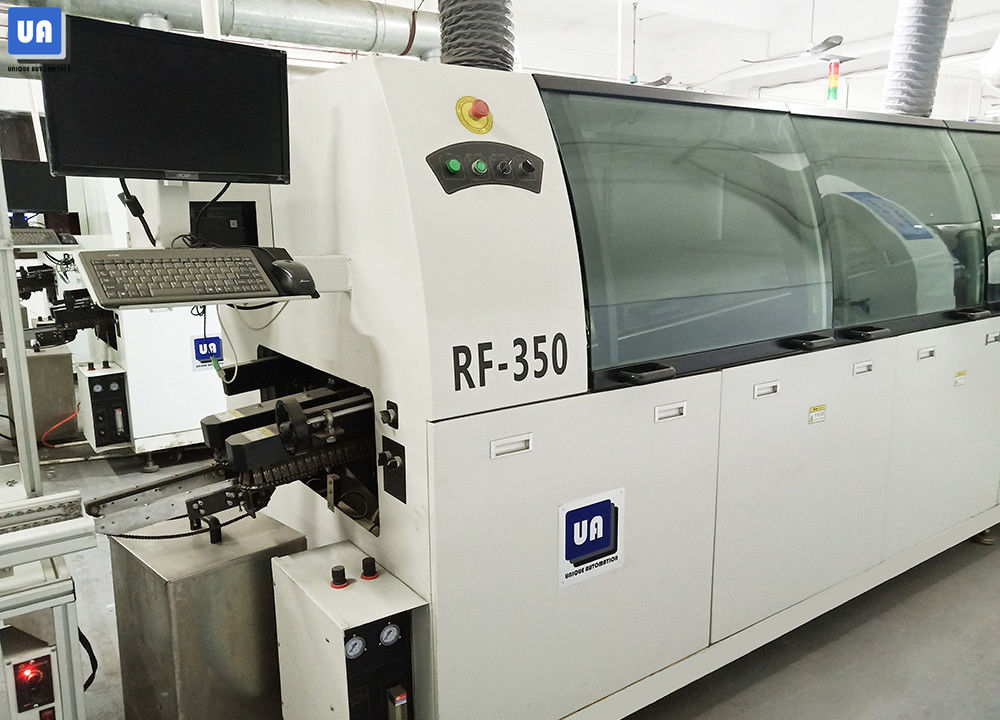

Photos of Wave Solder RF-350B
