SMT Soldering Machine PCB Wave Solder Lead Free 3 Preheating Zones

video play

Large Image :  SMT Soldering Machine PCB Wave Solder Lead Free 3 Preheating Zones

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-350B
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 25 units per month
Detailed Product Description
Solder Pot Capacity: About 400Kg No. Of Preheating Zones: 3
Wave Height Adjustment: Manual Preheating Length: 1800MM
Control Mode: PLC + Computer Exhaust Method: Upper Exhaust
Flux Flow: Flux Flow Meter Warm-up Time: Approx. 180min ( Setting At 250C )
High Light:

3 Preheating Zones SMT Soldering Machine


1800MM SMT Soldering Machine


3 Preheating Zones PCB Soldering Machine

SMT Soldering Machine PCB Wave Solder Lead Free 3 Preheating Zones


SMT Wave Soldering Machine PCB Wave Solder, Lead Free RF-350B SMT Machine


The Information of Parameter RF-350B Wave Soldering Machine

Mode RF-350B
Soldering System
Solder Pot Type Motor Drive
Wave Height Adjustment Manual
Solder Pot Capacity About 400Kg
Warm-up Time Approx. 180min ( Setting at 250C)
Preheating System
Preheating Temp Room Temperature ~300C
No. of Preheating Zones 3
Preheating Length 1800MM
Spraying System
Transmission Methos Step Motor
Exhaust Method Upper Exhaust
Flux Flow Flux Flow Meter
Auto Flux Feeding Optional
Operating System
Control Mode PLC + Computer

1. Streamlined body design, using spray technology is not to drop paint, beautiful and durable.
2. 3 sections of 1.5 m independent preheating zone, all hot air preheating, so that PCB to obtain a good welding effect.
3. The patent titanium claw chain, non-stick tin, never deformation, long life.
4. Have two observation windows, elegant appearance, easy operation and maintenance.
5. Furnace lift and out, combining auto and manual adjustment.
6. Equipped with a cooling module, temperature compensation module, suitable for lead-free solder and a variety of process requirements.
7. The design of furnace uses an adjustable spout; low tin slag oxidation, using liquid tin-flow design principles, to reduce the impact of tin oxide, crest width can be adjusted with the PCB, adjustable distance about 80-300MM, it is greatly reducing the oxidation of PCB soldering tin.
8. The transmission mechanism using sophisticated modular design, drive accurate, long life, easy maintenance.
9. Rosin spray device can be pulled out, and a removable, easy to clean and maintain.
10. Isolated spray device, flux fumes discharged from the dedicated air duct.
11. Powerful features, various PCB parameters can invoke operations on demand.
12. Using touchscreen + SIEMENS PLC control system to ensure reliability and stability.
13. The user can set the date, time and temperature parameters to automatic switch machine regularly.
14. The heating temperature using PID closed-loop control, temperature stable and reliable.
15. The closed-loop automatic tracking spray systems, spray width and spray time is automatically adjusted or according to the needs and set up in advance and extend the spray time.
16. In order to minimize the tin oxide, can be set to economic operation and automatically play through the plate-wave mode.


Installation Drawing

SMT Soldering Machine PCB Wave Solder Lead Free 3 Preheating Zones 0

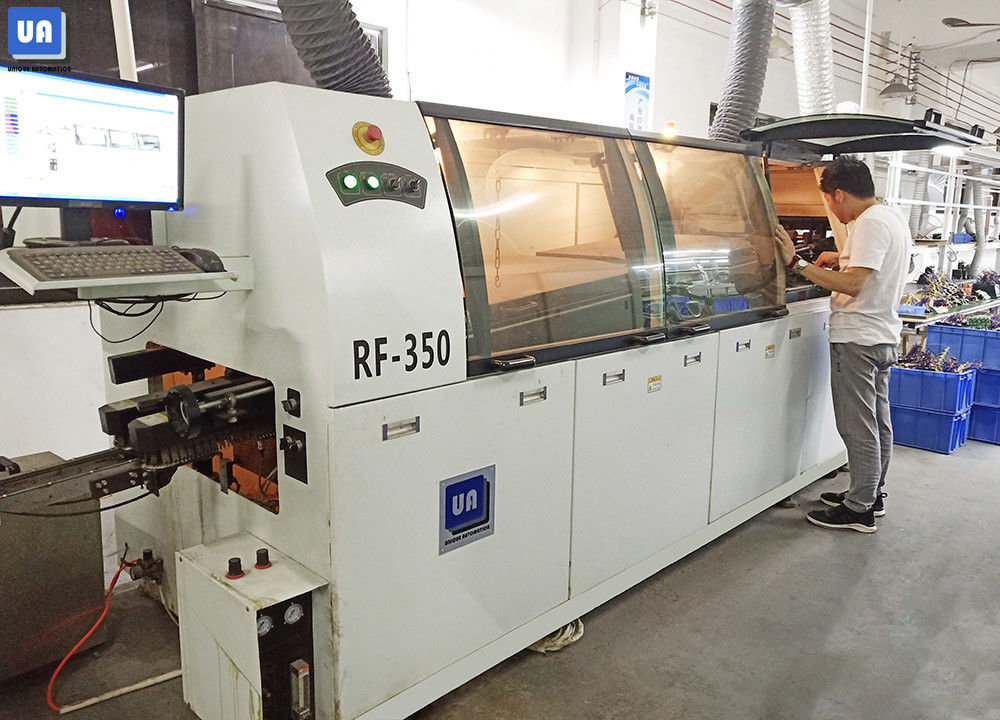

RF-350B Wave Soldering Machine Showing

RF-350B Wave soldering machine
