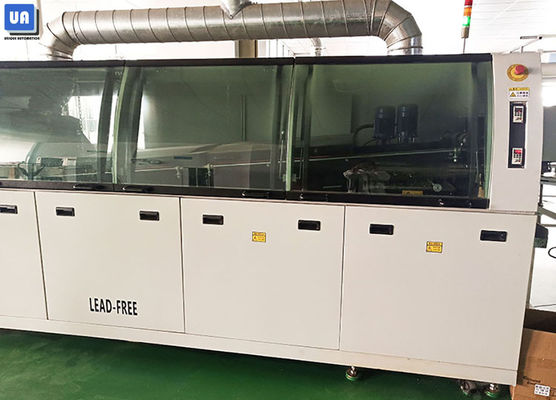

RF 350A Wave Soldering Machine For SMT Assembly Line PCB Lead Free

large.img.alt
large.img.alt
video play

Large Image :  RF 350A Wave Soldering Machine For SMT Assembly Line PCB Lead Free

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-350A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 25 units per month
Detailed Product Description
Spraying Pressure: 0.25MPa ~ 0.4MPa Preheating Temp.: Room Temperature : ~300C
No. Of Preheating Zones: 3 Exhaust Capacity: 25M3/min
Preheating Length: 1800 MM Componet Clearance (mm ): 130 MM
Conveyor Angle: 4 ~ 6 C Conveyor Width Adjustment: Manual
High Light:

RF 350A Wave Soldering Machine

,

0.25MPa Wave Soldering Machine

,

RF 350A SMT Soldering Machine

RF 350A Wave Soldering Machine For SMT Assembly Line PCB Lead Free



RF-350A Wave Soldering Machine For SMT Assembly Line



Basic Information of Wave Soldering Machine RF-350A

Model RF-350A
Spraying System
Spraying Pressure 0.25MPa ~ 0.4MPa
Preheating Model IR tube Option : Hot Air Convection
Exhaust Method Upper Exhaust
Preheating Temp. Room Temperature : ~300C
No. of Preheating Zones 3
Exhaust Capacity 25M3/min
Auto Flux Feeding Optional
Warm Time Approx. 20/min
Preheating Length 1800 MM
Flux Flow Flux Flow meter
Transmission Method Air cylinder
Conveyor System
Componet Clearance (mm ) 130 MM
Conveyor Direction Optional
Conveyor Height 750 MM
Conveyor Angle 4 ~ 6 C
PCB Width ( L x W ) 350 MM
Conveyor Width Adjustment Manual


Information of Wave soldering machine

Heating system
◆ Porous plate heater is used as the infrared heating source and the far infrared light penetration is used to directly heat the PCB , thus avoiding the problem of insufficient heating capacity in traditional full hot air mode.
◆ Composite heating, mainly by infrared heating, supplemented by hot air convection, can improve
heating capacity and uniform heating.
◆ High temperature hot air motor is imported from Sanyue (Taiwan). The heating wire is nickel winding
and its service life is greatly improved.
◆ Modular pull-out design facilitates operator maintenance



Welding sysytem
◆ 4mm SUS316L imported stainless steel bladder, new type of bladder design, beautiful appearance, easy cleaning, cast iron heating plate, no deformation of the bladder
◆ Adjustable peak width to minimize tin oxidation, removable without removing the nozzle
◆ The position of impeller shaft increases the oxidation shield and reduces the tin oxide produced by the rotation of impeller shaft.
◆ The impeller shaft and peak motor parts can be separately removed without removing the tin track (other brand peak welding can not do this design).
◆ Tin slag oxidation: using 200*200 mm PCB plate as test plate and calculating at 300 pcs per hour, the amount of tin slag produced in 10 hours is 2KG


Pictures display
Wave soldering machine RF-350A 1

Wave soldering machine RF-350A 2



Packing method of Wave Soldering Machine

packing
