| Power Supply: | 220V，50 -- 60HZ | Machine Size: | 800（L）*1350（W）*1250（H）mm |
|---|---|---|---|
| Compressed Air: | 4-6Kg/cm2 | Power: | 600W |
| Name: | PCB Loader Unloader | ||
| High Light: | 220V SMT Assembly Production Line,Semiconductor SMT Assembly Production Line,600W PCB Loader Unloader |
||

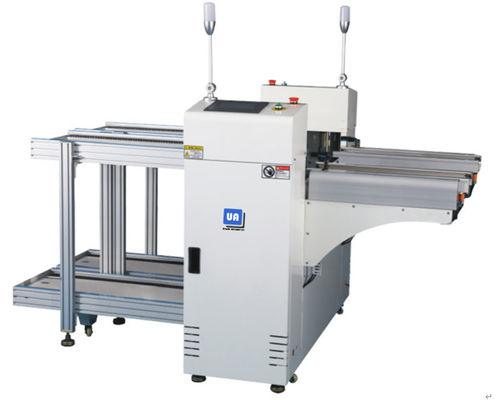

SMT Assembly Production Line PCB Unloader for Semiconductor
|
Description of PCB Loader Unloader
|
| Features of PCB Loader Unloader 1) PLCcontrol system, high-performance photoelectric sensor, servo motor; 2) Touch screen panel operation; 3) From Right to Left direction (customizable from left to right direction available); 4) Standard outlet, easy connects with other equipment. |
| Specifications of PCB Loader Unloader 1)Machine size:800(L)*1350(W)*1250(H)mm 2)Magazine size : (50-180) x (100-240)x (110-200) mm, can be customized 3)Max PCB width:within magazine limit 4)PLC:MITSUBISHI FX1N-40MT 5)Lifter motor model:Panasonic brake servo motor 6)Drive motor model:Panasonic 15W AC motor with gear ratio 1:50 7)Power supply:220V,50—60HZ 8)Power: 600W 9)Compressed air:4-6Kg/cm² |
Preparation before reflow soldering
(1) Check the lubrication of each rotating shaft bearing seat.
(2) Check whether the rotation of the transmission chain is normal, to ensure that it is squeezed and jammed, and that the chain meshes well with each sprocket.
(3) Clean the furnace cavity, and do not put anything other than the workpiece in the machine.
(4) Before each use of the equipment, a spot check should be carried out and a record should be made according to the requirements of the spot check card.
