BGA CSP Components SMT Wave Soldering Machine 3P AC380V

BGA CSP Components SMT Wave Soldering Machine 3P AC380V
BGA CSP Components SMT Wave Soldering Machine 3P AC380V
video play

Large Image :  BGA CSP Components SMT Wave Soldering Machine 3P AC380V

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-350B
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 25 units per month
Detailed Product Description
Dimensions (mm): 4100*1400*1700 Weight (kg): 1530
Control: PC+PLC Preheating Zone Length (mm): 1800
Preheater: Ceramic IR Heating Pipe Solder Pot Capacity (kg): 360
Solder Pot Movement: Up/down, In/out Manual Control By Handwheel Solder Pot Material: Stainless Steel 316L (or Titanium Alloy)
Conveyor Width Adjust: Electric Control Conveyor Width (mm): Max 350
Flux Spray: Step Motor Control Flux Feeding: Auto Feed
Finger Type: V, L Or Customized Cooling Type: Forced Air Cooling
Power Supply: 3P/AC 380V 3P/AC 220V Options Available: Hot Air Preheating 400/450 Max PCB Width Central Support For Big PCB
High Light:

BGA CSP Wave Soldering Machine

,

3P AC380V SMT Wave Soldering Machine

,

CSP Components SMT Wave Soldering Machine

Wave Soldering Machine

Lead Free Wave Solder RF-350B



Features

1. Lead-free manufacture procedure and environment friendly design

2. Specially made aluminum alloy guide rail provide hardnessand intensity

3. Auto synchronal input board connected device, ensures asmooth and steady input of board

4. Fluxes automatic supply system, low liquid warming

5. 1800mm preheating zone length, independent PID temperaturecontrol, heating even and steady

6. Chip wave and lambda wave, new and advanced technology ofhorizontal flow, little tin oxygenation,

    ensure solder point perfect.

7. Auto conveyor finger cleaning system

8. Add a air curtain which compressed air-curtain to prevent soldering flux from

    entering into preheating zone in the spray system.

9. The soldering flux liquid-level is supplied automatically, so you don't need to operate it manually.

    Equipped with flowmeter to accurately control the flow.

10. With high-effective cast-aluminum heating plate and entire hot air preheating box,

      temperature is more even and heat exchange speed will faster than before.

11. The surface temperature of the cast aluminum heating plate is lower than flux burning point,

       no fire hazard, safe and reliable.

12. 12KW's case-iron heating plate, heat evenly and has long service life.

13. Nozzle has double wave crest design. It can be disassembled separately.

      Using unique innovation advectional technology, wave crest is stable.

14. High-quality titanium alloy finger, is anti-corrosive and can be used for fixture.





Specifications



Specification RF-350B
Operating System
Control Mode PLC + Computer
Spraying System
Transmission Methos Step Motor
Spraying Pressure 0.25MPa ~ 0.4MPa
Flux Flow Flux Flow Meter
Auto Flux Feeding Optional
Exhaust Method Upper Exhaust
Preheating System
No. of Preheating Zones 3
Preheating Length 1800MM
Preheating Temp Room Temperature ~300C
Warm-up Time Approx. 20/Min
Soldering System
Solder Pot Type Motor Drive
Wave Height Adjustment Manual
Solder Pot Capacity About 400Kg
Warm-up Time Approx. 180min ( Setting at 250C)



Picture Showing

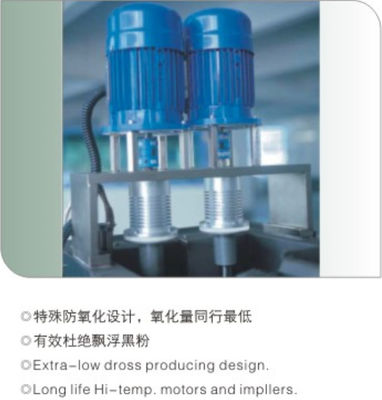

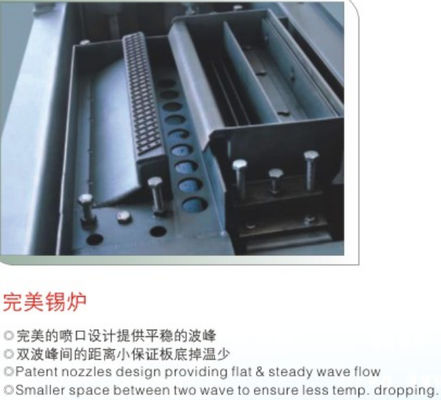

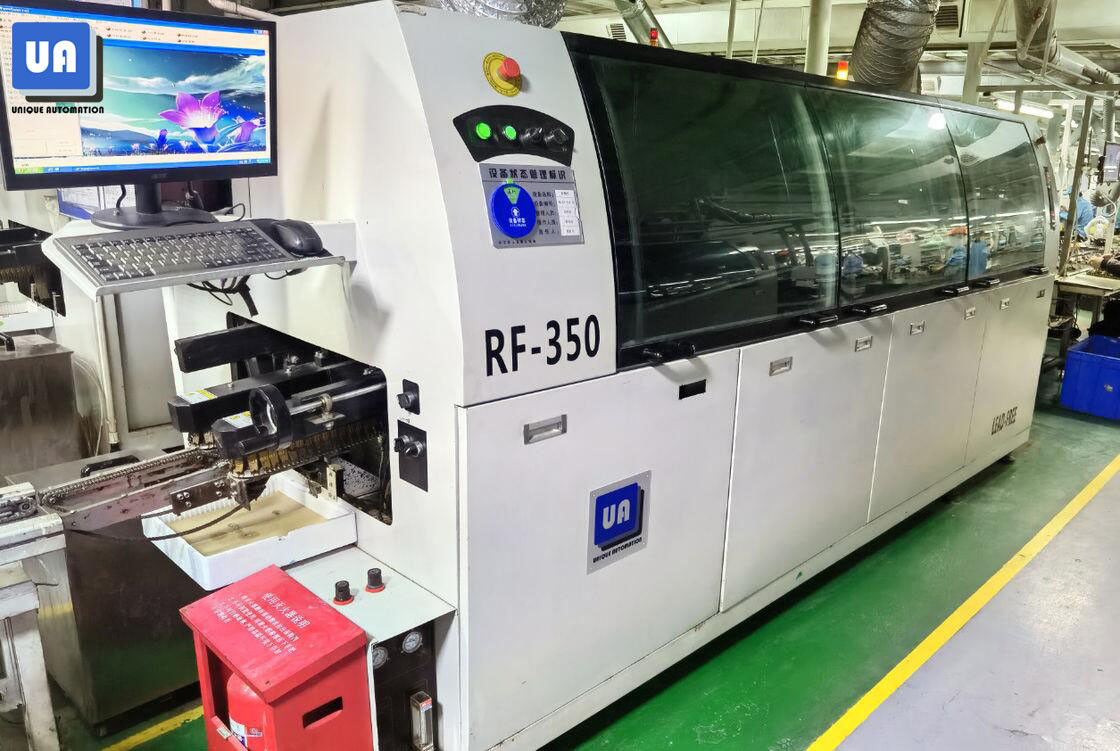

BGA CSP Components SMT Wave Soldering Machine 3P AC380V 0
