PID 3 Zones SMT Wave Soldering Machine IR Preheater

Good machine. Operate effectively with your wave solder machine. Thank you !

—— Abhijeet Saxena

Nice service!Can show me the solution in time when I have questions with machine. They are patient and kindly.

—— Mike Jasen

I'm Online Chat Now

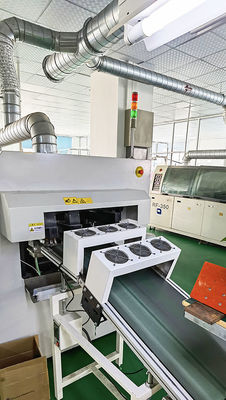

PID 3 Zones SMT Wave Soldering Machine IR Preheater

PID 3 Zones SMT Wave Soldering Machine IR Preheater
PID 3 Zones SMT Wave Soldering Machine IR Preheater
video play

Large Image :  PID 3 Zones SMT Wave Soldering Machine IR Preheater

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-400A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 25 units per month
Detailed Product Description
Dimensions (mm): 4200*1450*1700 Control: PLC + Temp. Control Meter
Preheater: Ceramic IR Heating Pipe Solder Pot Material: Stainless Steel 316L (or Titanium Alloy)
Conveyor Width Adjust: Electric Control Flux Feeding: Auto Feed
Finger Type: V, L Or Customized Preheating Zone Length: 2100 MM
Weight: 1655 KG Solder Pot Capacity: 400 KG
High Light:

PID SMT Wave Soldering Oven


Hot Air Convection Wave Soldering Oven


PID 3 Zones Wave Soldering Oven

Wave Soldering Machine

RF-400A Lead-Free IR Preheater

Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB.

1.Totally design for Lead Free process.
2. PLC control and temperature control meter.

3. The preheating zones using the high efficiency IR ceramic heaters (option : Hot air convection )

    to achieve strong and stable heating results.
4. Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
5. With black box memory function, the machine can always store the production management records,

    improve work efficiency.
6. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.

7. Streamline design design with the curve glass windows for easy viewing and maintenance.

8. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

9. Lead-free solder furnace with independent design, environmental protection and safety, easy to clean.


Model RF-400A
Spraying System
Transmission Method Air cylinder
Flux Flow Flux Flow meter
Exhaust Capacity 25M3/min
Spraying Pressure 0.25MPa ~ 0.4MPa
Exhaust Method Upper Exhaust
Auto Flux Feeding Optional
Preheating System
Preheating Temp. Room Temperature : ~300C
Warm Time
Approx. 20/min
Preheating Length 2100 MM
No. of Preheating Zones 3
Preheating Model IR tube Option : Hot Air Convection
Conveyor System
Conveyor Height 750 MM
PCB Width ( L x W ) 350 MM
Conveyor Width Adjustment Manual
Componet Clearance (mm ) 130 MM
Conveyor Direction
Conveyor Angle 4 ~ 6 C

Pictures Showing
RF-400A 1
RF-400A 2

Installation Drawing

PID 3 Zones SMT Wave Soldering Machine IR Preheater 2
Package and Shipping

How to package goods ?

Way 1 : inner vaccum packing and outside use wood to package.

Way 2 : According to customers’ need.

vacuum packing
outer wooden packing

How to ship our machine to your country ?

  • Make use of International Express, like Federal Express, UPS, TNT, DHL, etc.
  • Find suitable trunk to transport.
  • Ship goods by sea.
  • Can be customized.

Shipping ways



Q1: Are you a trade company or manufacturer ?

We are the manufacturer of high precision SMT Equipment and OEM & ODM service are available.


Q2 : What is your payment terms?

T/T, L/C, etc


Q3 : What is your delivery date?

The delivery date is about 20-30 working days after receive the payment.


Q4:If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory and we will arrange the free training for you.


Q5: Why choose UA ?

Experienced in design and manufacturing of SMT equipment, UA is one of the most professional

solution providers in the SMT equipment market.
