|Dimensions (mm):||4200*1500*1700||Weight (kg):||1600KG|
|Control:||PLC + Temp. Control Meter||Preheating Zone Length (mm):||1800|
|Conveyor Width Adjust:||Electric Control||Transmission Method:||Air Cylinder|
|Flux Feeding:||Auto Feed||Finger Type:||V, L Or Customized|
|Type Of Solder Pot:||Motor Pot||Warm-up Time:||About 180 Min (Setting At 250C )|
Air Cylinder SMT wave Soldering Machine,
0.25MPa SMT wave Soldering Machine,
0.25MPa wave soldering oven

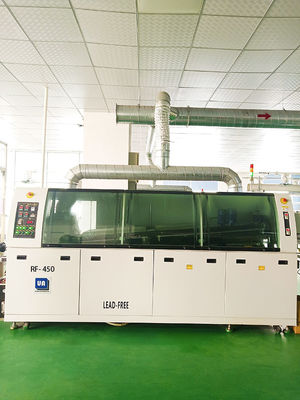

Wave Soldering Machine
Wave Soldering Machine for the production of Household Appliance
1. Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design,
simple operation, convenient maintenance.
2. Automatic power system, frequency converter control, automatic board input system.
3. Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic
cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so that ensure the excellent heat
preservation, temperature uniformity, temperature difference no more than ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
6. PID close loop controlled hot air preheaters, preheating system uses three independent
temperature control so as to ensure the excellent heat preservation, temperature uniformity,
temperature accuracy in ±2ºC.
7. Preheat passage modular design, environmental protection and safety, convenient for cleanup.
8. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
9. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
|Power||380V 50HZ / 220V 60HZ|
|Dimension ( L*W*H )||4200*1500*1700|
|Control Mode||PLC + Temp. control meter|
|Transmission Method||Air cylinder|
|Spraying Pressure||0.25MPa ~ 0.4MPa|
|Flux Flow||Flux Flow meter|
|Auto Flux Feeding||Optional|
|Exhaust Method||Upper Exhaust|
Package and Shipping
We use the way of internal vacuum packing and outer wooden packing.
1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.
3. By truck. Fast transportation and low cost.
4. Other method as you customized.
