Product Details:
Payment & Shipping Terms:
|
| Dimensions (mm): | 4200*1450*1700 | Weight (kg): | 1700 KG |
|---|---|---|---|
| Control: | PLC + Computer | Preheating Zone Length (mm): | 1800 MM |
| Conveyor Width Adjust: | Electric Control | Transmission Method: | Air Cylinder |
| Flux Feeding: | Auto Feed | Finger Type: | V, L Or Customized |
| Type Of Solder Pot: | Motor Pot | Warm-up Time: | About 180 Min (Setting At 250C ) |
| High Light: | Upper Exhaust Wave Solder Machine,400mm PCB Lead Free Wave Solder Machine,400mm PCB wave soldering oven |
||
Wave Soldering Machine
Automatic lead Free Wave Soldering Machine
Features
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective,
PLC controlled, accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equipped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Timer start up feature for solder pot, solder melted in within 90 minutes.
7. Automatic finger cleaner equipped.
8. With black box memory function, the machine can always store the SPC data, improve work efficiency.
9. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
Specifications
| Mode | RF-400B |
| General | |
| Dimension ( L*W*H ) | 4200*1450*1700 |
| Weight | 1700 kg |
| Operating System | |
| Control Mode | PLC + Computer |
| Spraying System | |
| Transmission Methos | Step Motor |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow Meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Preheating System | |
| Preheating System | IR Tube Option: Hot Air Convenction |
| Preheating Length | 1800MM |
| Preheating Temp | Room Temperature ~300C |
| Warm-up Time | Approx. 20/Min |
| Soldering System | |
| Solder Pot Type | Motor Drive |
| Wave Height Adjustment | Manual |
| Warm-up Time | Approx. 180min ( Setting at 250C) |

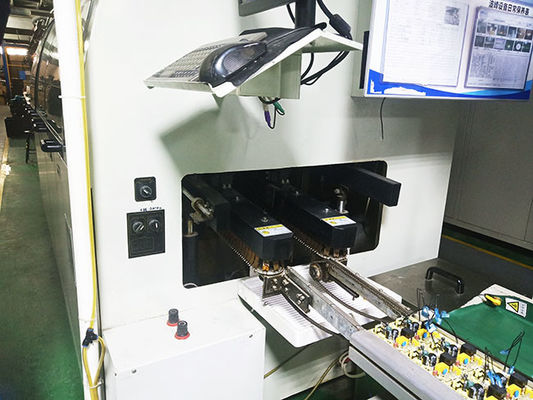

Pictures Showing
Installation Drawing
Package and Shipping
1. Package
We use the way of internal vacuum packing and outer wooden packing.
2. Shipping
1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.
3. By truck. Fast transportation and low cost.
4. Other method as you customized.
