Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line

China UNIQUE AUTOMATION LIMITED certification
China UNIQUE AUTOMATION LIMITED certification
Good machine. Operate effectively with your wave solder machine. Thank you !

—— Abhijeet Saxena

Nice service!Can show me the solution in time when I have questions with machine. They are patient and kindly.

—— Mike Jasen

I'm Online Chat Now

Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line

Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line
Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line
video play

Large Image :  Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-H1010I
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: USD
Detailed Product Description
Cooling Type: Forced-air Coooling Temp Range: Room Temperature ~ 320C
Conveyor Type: Chain And Mesh Belt PCB Width (mm): 50 - 400 ( Or Customized )
Cooling Zone Length ( Mm ): 600 Running / Starting Power (kw): 11 / 37
Temp Accuracy: ± 1C Heating Zone Length (mm): 3632
High Light:

10 Zones Infrared Reflow Oven

,

10 Zones SMT Oven Machine

,

10 Zone Reflow Oven

Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line



SMT Machine Lead Free Reflow Oven 10 Zones for LED Assembly Line



The Specifcation of Reflow Oven RF-H1010I

Specification
Modle RF-H1010I
Cooling Type Forced-air Coooling
Temp Range Room Temperature ~ 320C
Temp Deviation ± 2C
Conveyor Type Chain and Mesh Belt
Control PLC + PC
PCB Width (mm) 50 - 400 ( or customized )
Weight (kg) Approx.2500
Cooling Zone length ( mm ) 600
Running / Starting Power (kw) 11 / 37
Machine Dimension (mm) 5850*1490*1510
Temp Accuracy ± 1C
Heating Zone Length (mm) 3632



Features of Reflow Oven RF-H1010I
1, Windows10 operating system, can realize the free switching of the operation interface in

Chinese and English.
2, Siemens PLC+ PID closed-loop control to achieve high prectise temperature control and

repeatable profilies.
3, Modular design,convenient and fast maintenance,reducing maintenance time and cost
4, The rail surface is treated with hardening process to make it more stable.
5, Sound and light alarm and information prompt function with various faults, including temperature

deviation, speed deviation,detention board and drop board, wind fault and error operation, etc.
6, The new gas management system can make the hot gas exchange efficiency in the furnace higher,

to obtain better thermal compensation and thermal efficiency, and fully meet the requirements of

various lead-free soldering processes.



Pictures Showing of Reflow Oven RF-H1010I

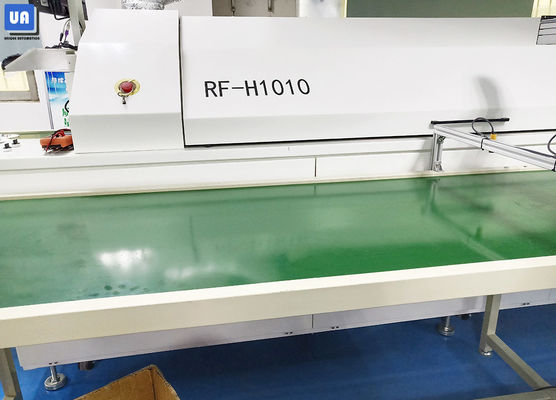

RF-H1010I  Reflow oven 1

Reflow Oven RF-H1010I 2

Reflow soldering shutdown
(1) After the work is finished, turn off the "heating" switch on the "control panel", wait for the

chain network and the fan to idle for more than 10 minutes to cool down, then turn off the "fan",

"transport", and "on/off".
(2) Click the "File" menu in the main window, select the "Exit" command in the drop-down menu,

and the system will pop up "Shutdown Now" and "Exit System". Click the "Shut Down Now" button

to directly enter the safe shutdown state.
(3) Or click the "Exit System" button, the furnace heating system will be turned off, and the equipment

chain network will automatically turn off after 20 minutes of idling. Click the "OK" button to automatically

enter "You can safely shut down now" to shut down.
(4) Turn off the display, UPS, (UPSOFF) main power switch, (CONTROLOFF) main switch in turn.


Control System of Reflow Oven Equipment
Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line 2
Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line 3
Conveyor Rail of Reflow Oven Equipment
Lead Free 10 Zones Infrared Reflow Oven For LED SMT Assembly Line 4
