|Conveyor Speed:||20-2000MM/min||No. Of Cooling Zones:||2|
|Mesh Width:||450 MM||Temp. Setting Range:||Rome Temperature ~320C|
|Weight:||1800KG||Conveyor Height:||900± 20 MM|
|No. Of Heating Zones:||Top 8 & Bottom 8||Length Of Heating Zones:||2950 MM|
8 Zone IR Reflow Oven,
Mesh Width 450mm IR Reflow Oven,
8 Zone Conveyor Reflow Oven
RF 800I Lead Free 8 Zone IR Reflow Oven Equipment Mesh Width 450mm
RF-800I Lead-Free 8 Zone Reflow Oven Equipment IR Reflow Oven
The Parameter Date of Reflow Oven RF-800I
|No. of Cooling Zones||2|
|Mesh Width||450 MM|
|Temp. Setting Range||Rome Temperature ~320C|
|PCB Conveyor Method||Mesh and Rails|
|Temperature Deviation on PCB||± 1.5C|
|Components Clearance||Top / Bottom Clearance of PCB is 25mm|
|Max. Width of PCB||50 ~ 400 MM|
|Conveyor Height||900± 20 MM|
|Dimension ( L*W*H )||5000*1300*1450|
|Power Supply||380V 50HZ / 220V 60HZ|
|No. of Heating Zones||Top 8 & Bottom 8|
|Normal Operation Power||About 9KW|
|Cooling Method||Air Oven : Forced Air;
Nitrogen Oven : Water Chiller
|Temperature Control Precision||± 1C|
|Length of Heating Zones||2950 MM|
|Nozzle Plate||Stainless Steel Plate|
|Startup Power||Approx. 33KW|
Stable and reliable electrical control system of Refow Oven
1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .
2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .
3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5. Failure diagnosis and sound light alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.

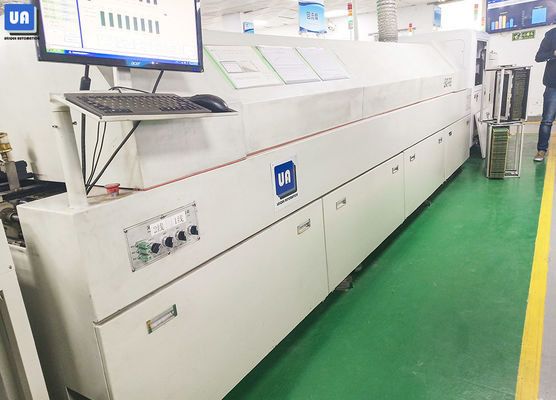

Picture Showing of Reflow Oven
