Lead Free RF 350A Wave Soldering Machine SMT Dip Production Line

video play

Large Image :  Lead Free RF 350A Wave Soldering Machine SMT Dip Production Line

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF-350A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 25 units per month
Detailed Product Description
Warm Time: Approx. 20/min No. Of Preheating Zones: 3
Preheating Model: IR Tube Option : Hot Air Convection Componet Clearance (mm ): 130 MM
Conveyor Direction: Optional Conveyor Angle: 4 ~ 6 C
Conveyor Width Adjustment: Manual Conveyor Height: 750 MM
High Light:

RF 350A Wave Soldering Machine


0.4MPa Wave Soldering Machine


RF 350A Dip Soldering Machine

Lead Free RF 350A Wave Soldering Machine SMT Dip Production Line


Dip Production Line SMT Lead Free Wave Soldering Machine RF-350A


Basic Date of wave Solder Machine RF-350A

Wave solder RF-350A
Preheating System
Preheating Model IR tube Option : Hot Air Convection
No. of Preheating Zones 3
Preheating Length 1800 MM
Preheating Temp. Room Temperature : ~300C
Warm Time Approx. 20/min
Conveyor System
PCB Width ( L x W ) 350 MM
Conveyor Direction Optional
Conveyor Height 750 MM
Componet Clearance (mm ) 130 MM
Conveyor Width Adjustment Manual
Conveyor Angle 4 ~ 6 C
Spraying System
Transmission Method Air cylinder
Spraying Pressure 0.25MPa ~ 0.4MPa
Flux Flow Flux Flow meter
Auto Flux Feeding Optional
Exhaust Method Upper Exhaust
Exhaust Capacity 25M3/min

Product features of Wave Solder Machine RF-350A
1. The front door has a lift-up design, and the rear door is push-pull; it adopts a plastic spraying process to keep the paint off, beautiful and durable.
2. Four sections of full hot air independent 2000mm lengthened preheating zone, full hot air independent PID temperature control, uniform heating, safe andstable; Make the PCB get a good soldering effect.
3. Patented titanium alloy chain claw (thickened "double hook" or "heavy claw" type), non-sticky, non-deformable, and long life.
4. Three observation windows, beautiful and generous in appearance, convenient for operation and maintenance.
5. The tin furnace rises and falls and enters and exits, the combination of automatic adjustment and manual adjustment
The role of spoiler wave
The role of spoiler wave: SMT component soldering and prevention of missing soldering, it ensures proper distribution of solder through the circuit board. The solder penetrates through the slit at a relatively high speed, thereby penetrating into a narrow gap. The spray direction is the same as the direction of the circuit board. For SMT components, the spoiler wave can basically complete the welding. But for through-hole components, the spoiler wave itself cannot properly solder the components. It leaves unevenness and excess solder on the solder joints, so a second wave---advection wave is needed.
The Picture of Wave Soldering Machine

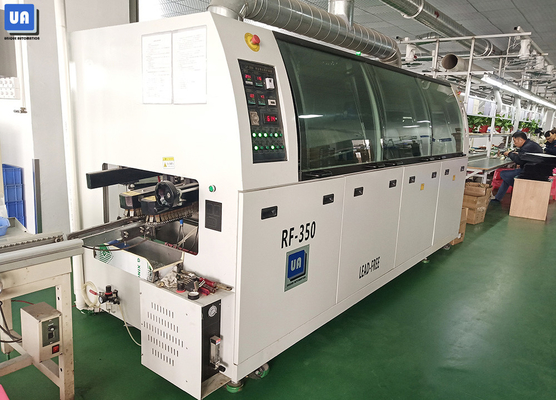

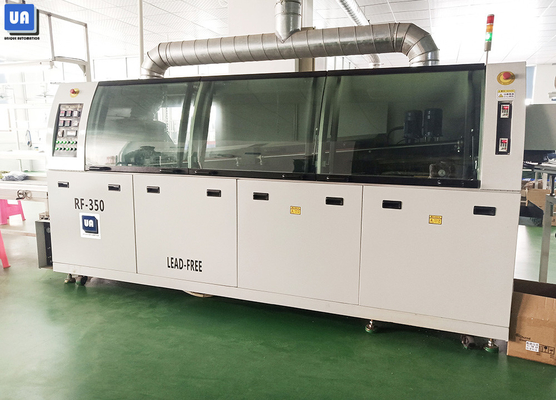

RF-350A Wave soldering machine

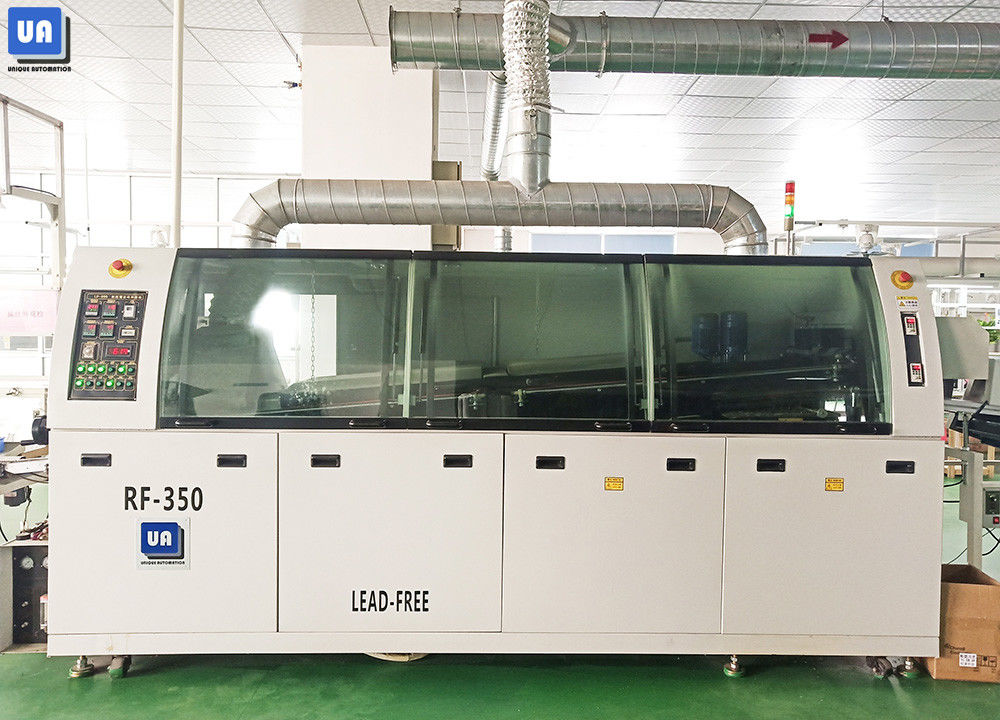

RF-350A wave solder machine
